Camshaft Timing Inspection (1.5L Engine): Inspection

  1. Cylinder Head Cover - Remove
  2. Right Front Wheel - Remove
  3. Engine Undercover - Remove
  4. Camshaft Timing - Inspect

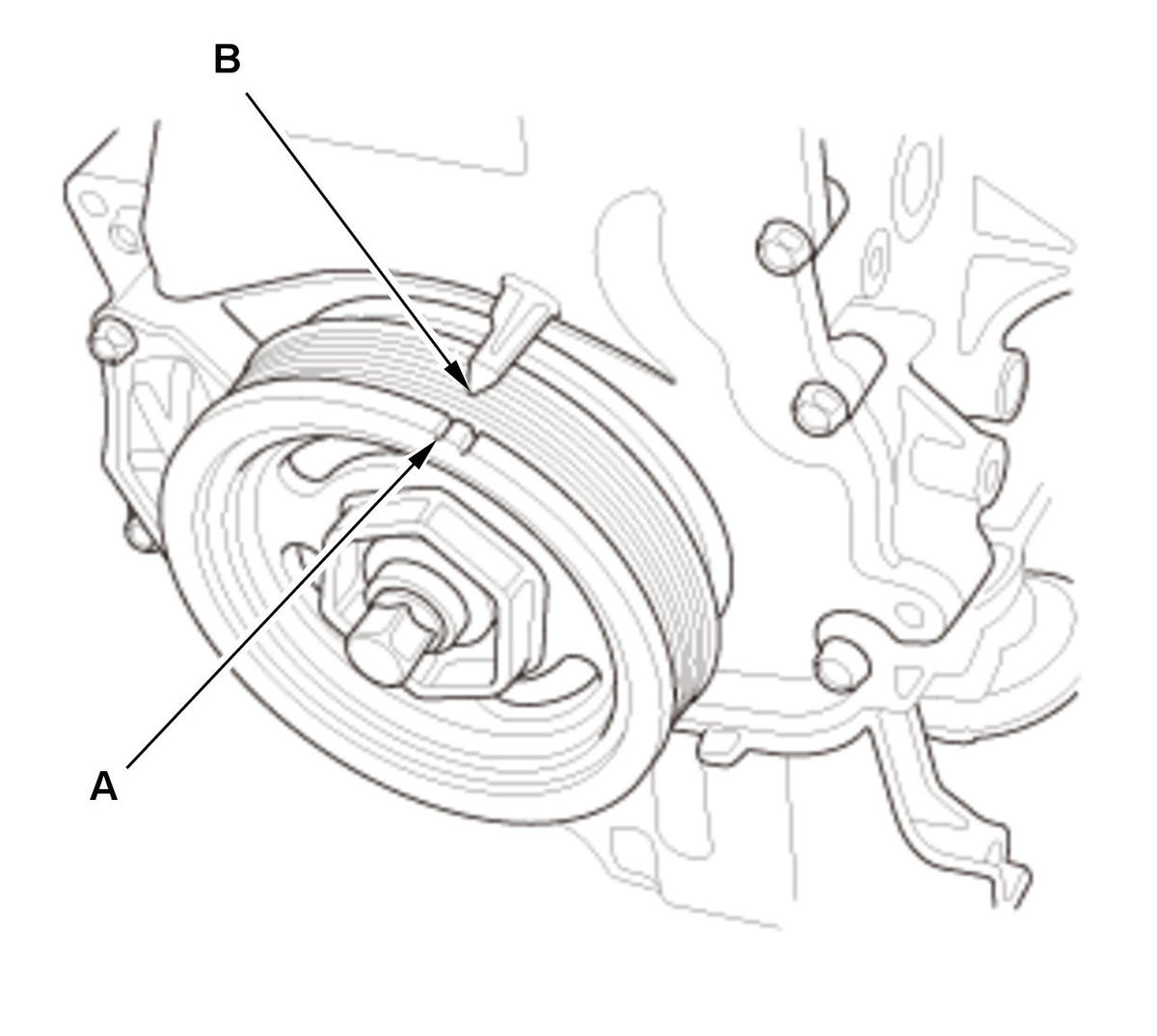

    GHH406783Courtesy of HONDA, U.S.A., INC.
    		 1. Turn the crankshaft to align No. 1 position at top dead center (TDC); the white mark (A) on the crankshaft pulley lines up with the pointer (B) on the cam chain case.

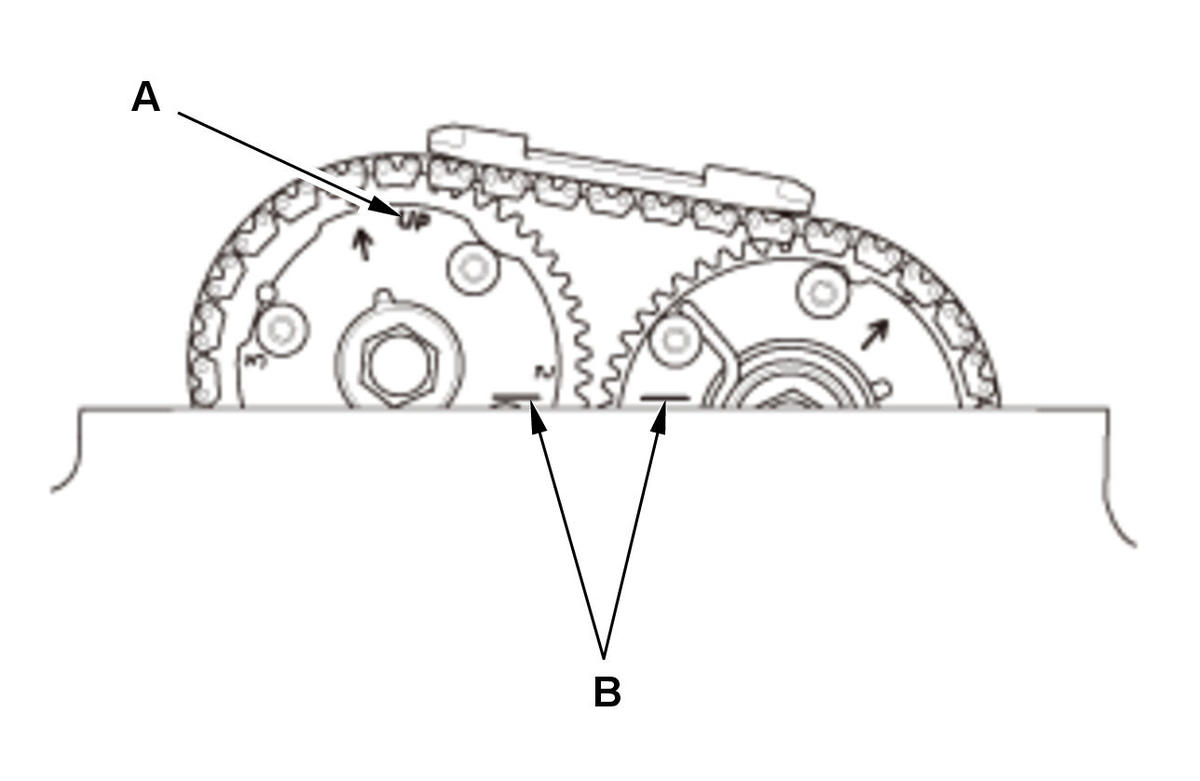

    GHH406784Courtesy of HONDA, U.S.A., INC.
    		 2. With the No. 1 piston at top dead center (TDC), check the "UP" mark (A) on VTC actuator A should be at the top.

    3. Check the TDC marks (B) on VTC actuator A and VTC actuator B, the marks should align. If the marks are not aligned, remove the cam chain and reinstall the cam chain properly.
  5. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
