Front Passenger's Power Window Switch Test: Test

  1. Front Passenger's Door Armrest - Remove
  2. Front Passenger's Power Window Switch - Test
    GHH439566GHH439567Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH439566GHH439567Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

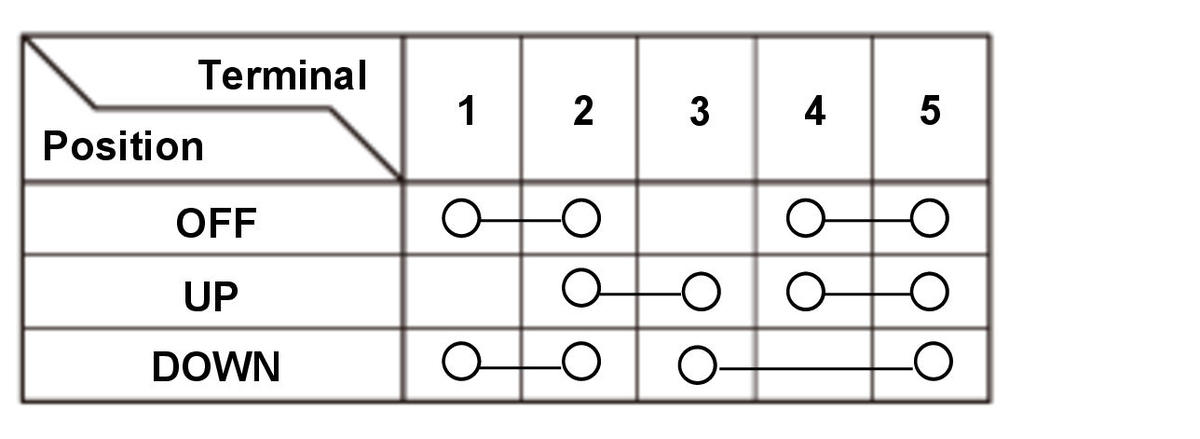

    		 1. Check for continuity between the terminals in each switch position according to the table.

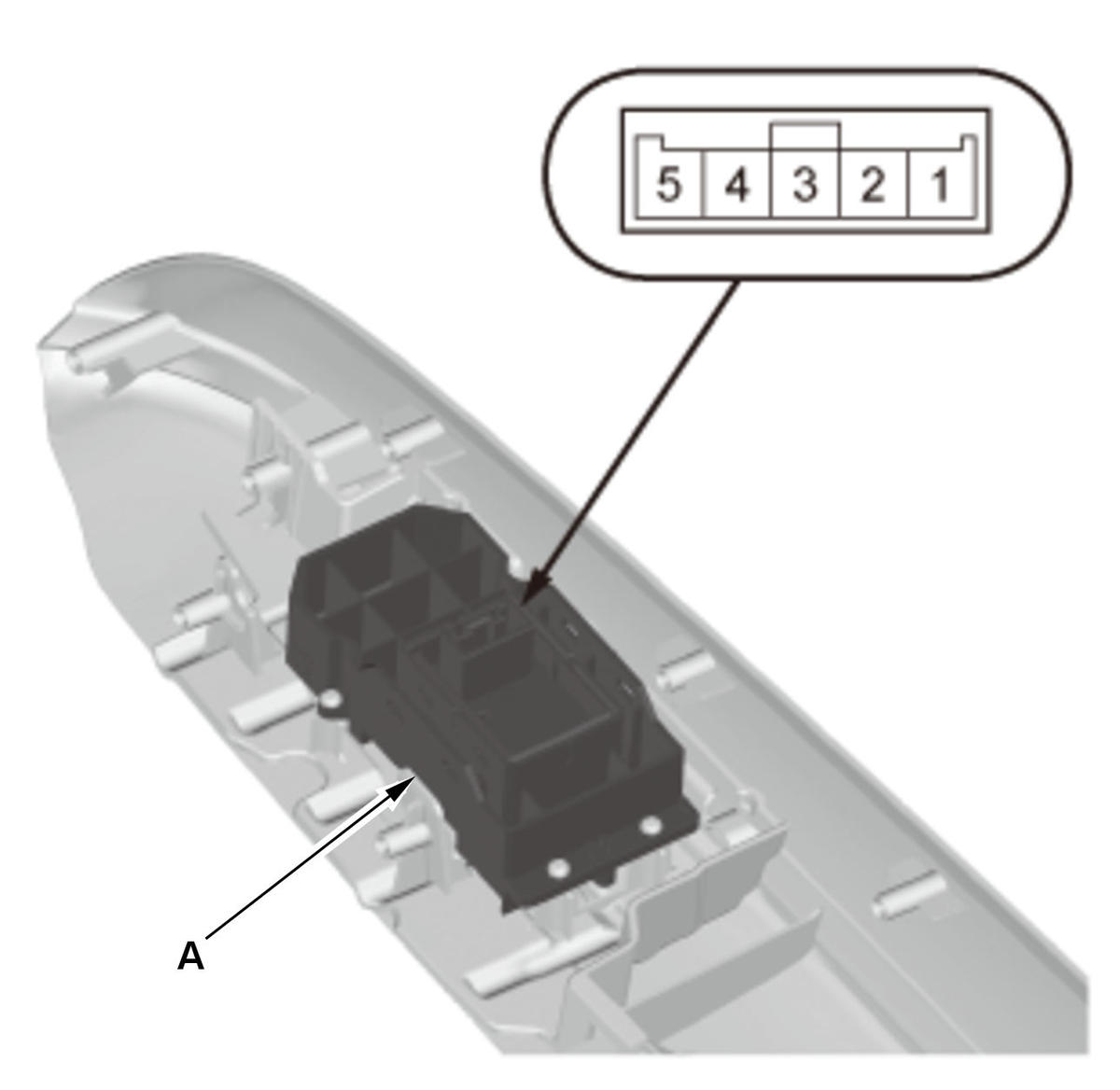

    2. If the continuity is not as specified, replace the front passenger's power window switch

    (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
