Exploded View

NOTE:  Do not disassemble the oil pump except for the shown parts.

  1. Oil Pump

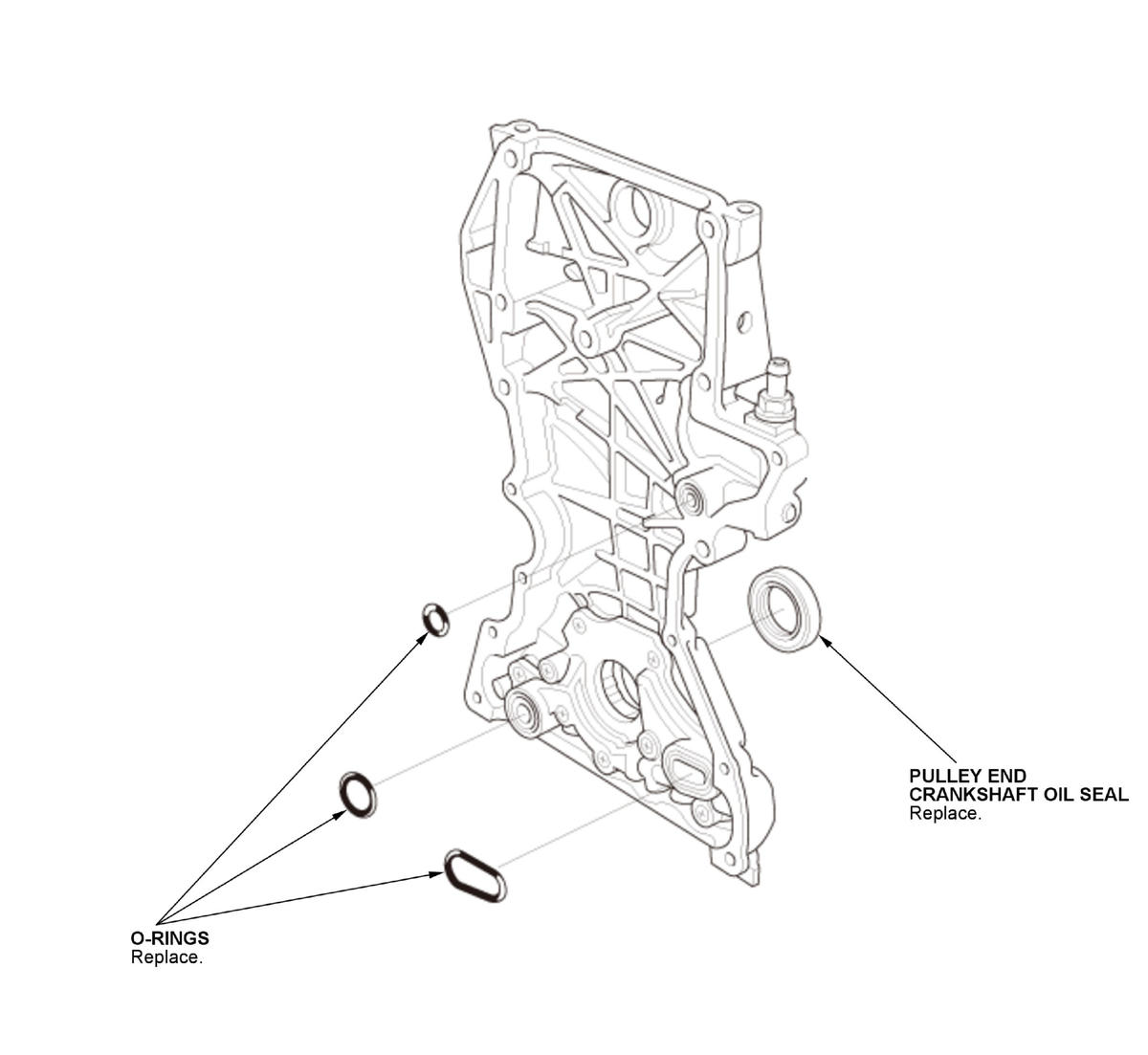

    GHH437091Courtesy of HONDA, U.S.A., INC.
