Relay Box Locations And Control Unit Locations (2016 2017 2018)
›

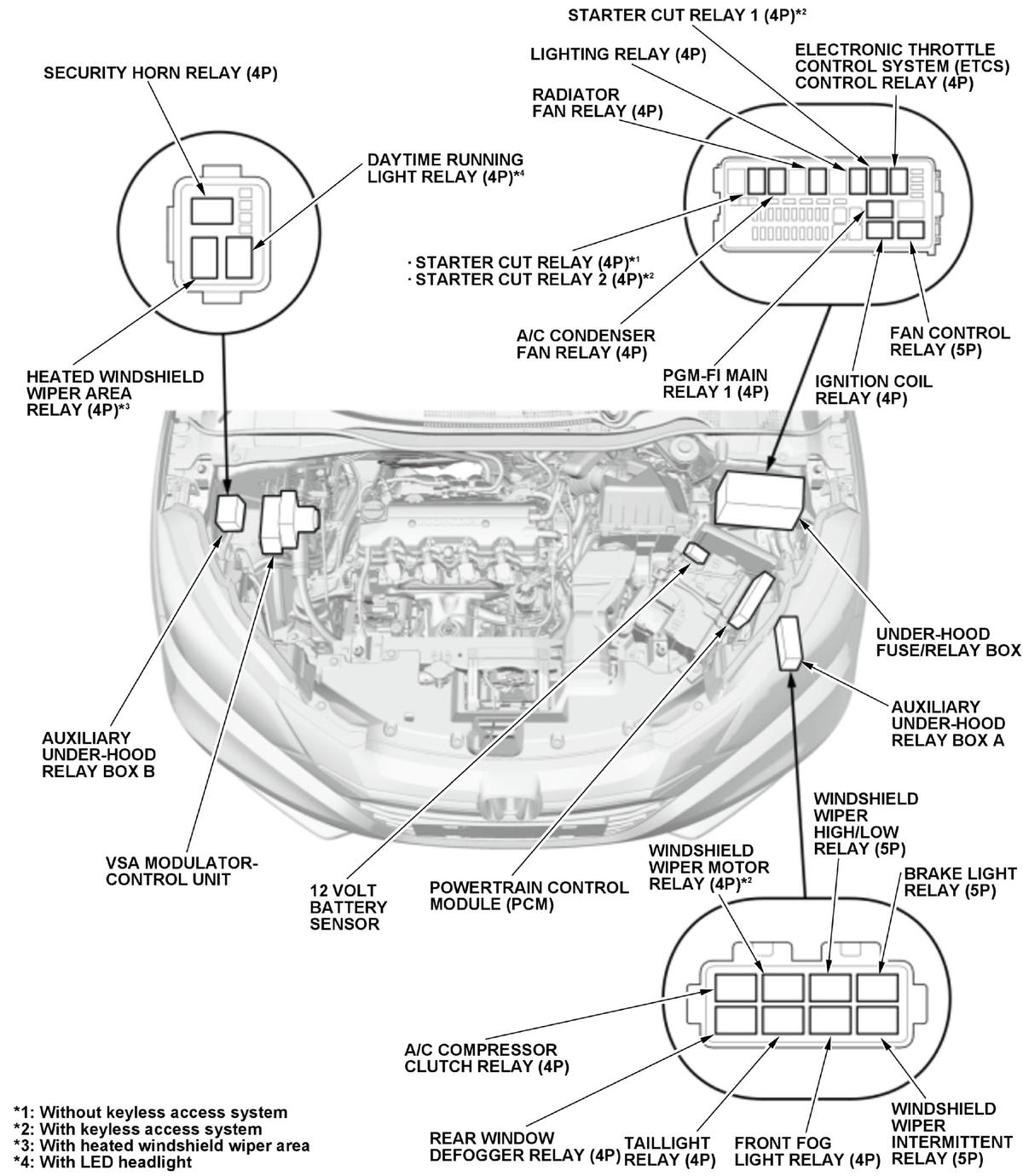

Engine Compartment
Engine Compartment
Engine Compartment
Courtesy of HONDA, U.S.A., INC.
