Sealing Bolt Installation

NOTE: When installing the sealing bolts (A), always use new washers (B).

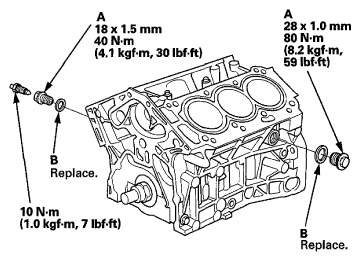

Fig 1: Sealing Bolts And Washer With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
