Driving Position Memory System (DPMS) Circuit Diagram

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Driver's Power Seat

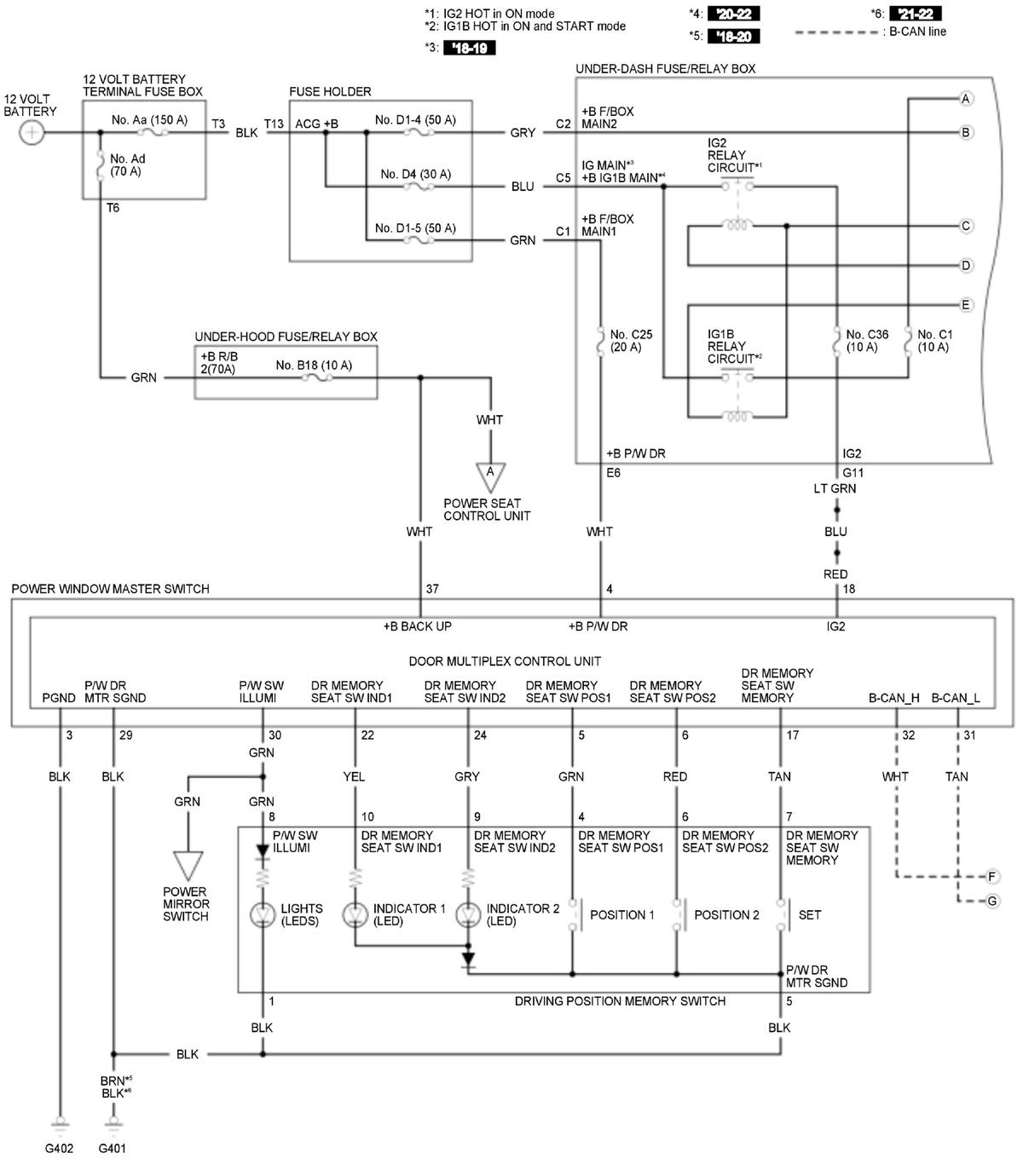

GHH445752Courtesy of HONDA, U.S.A., INC.

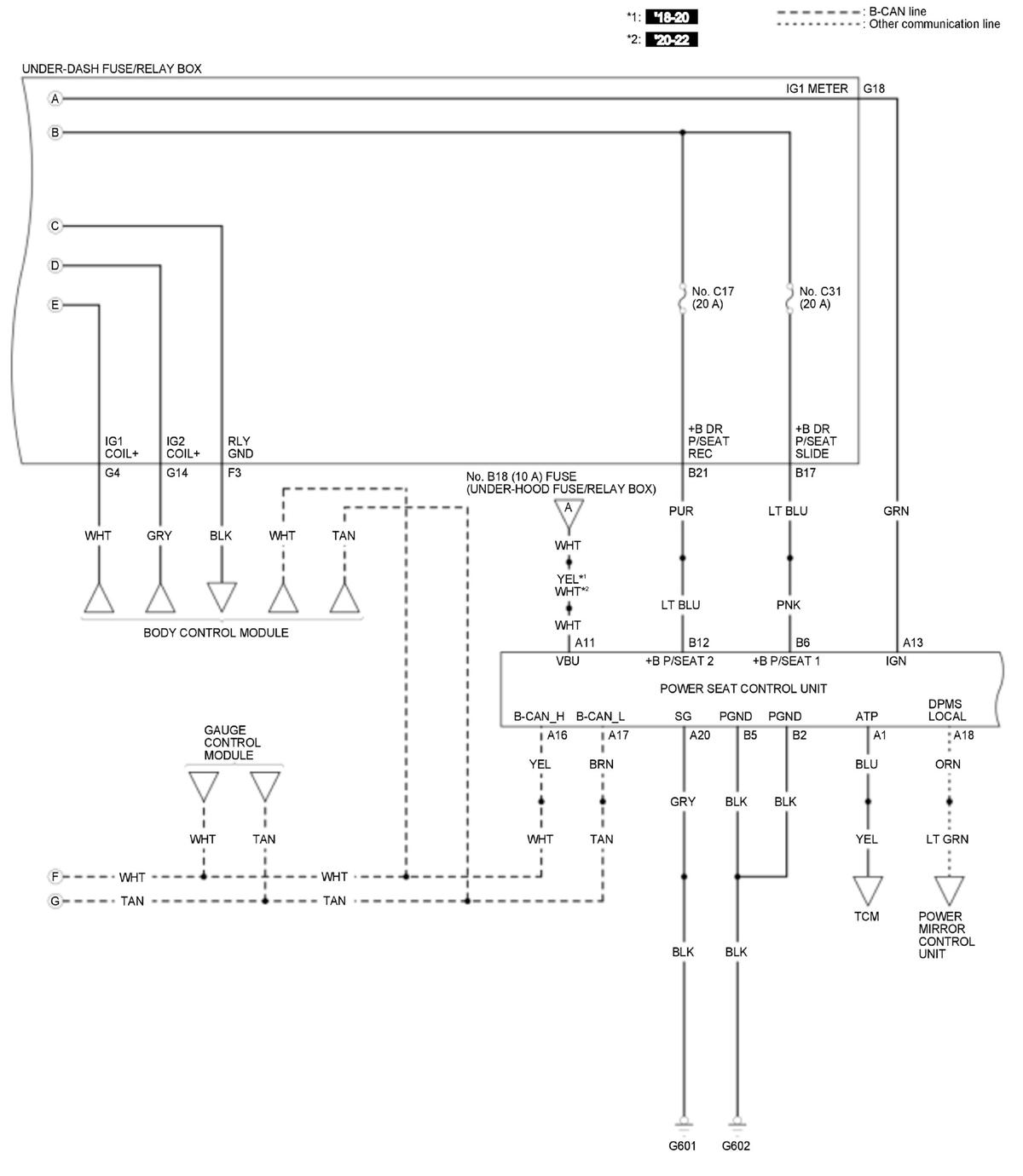

GHH445753Courtesy of HONDA, U.S.A., INC.

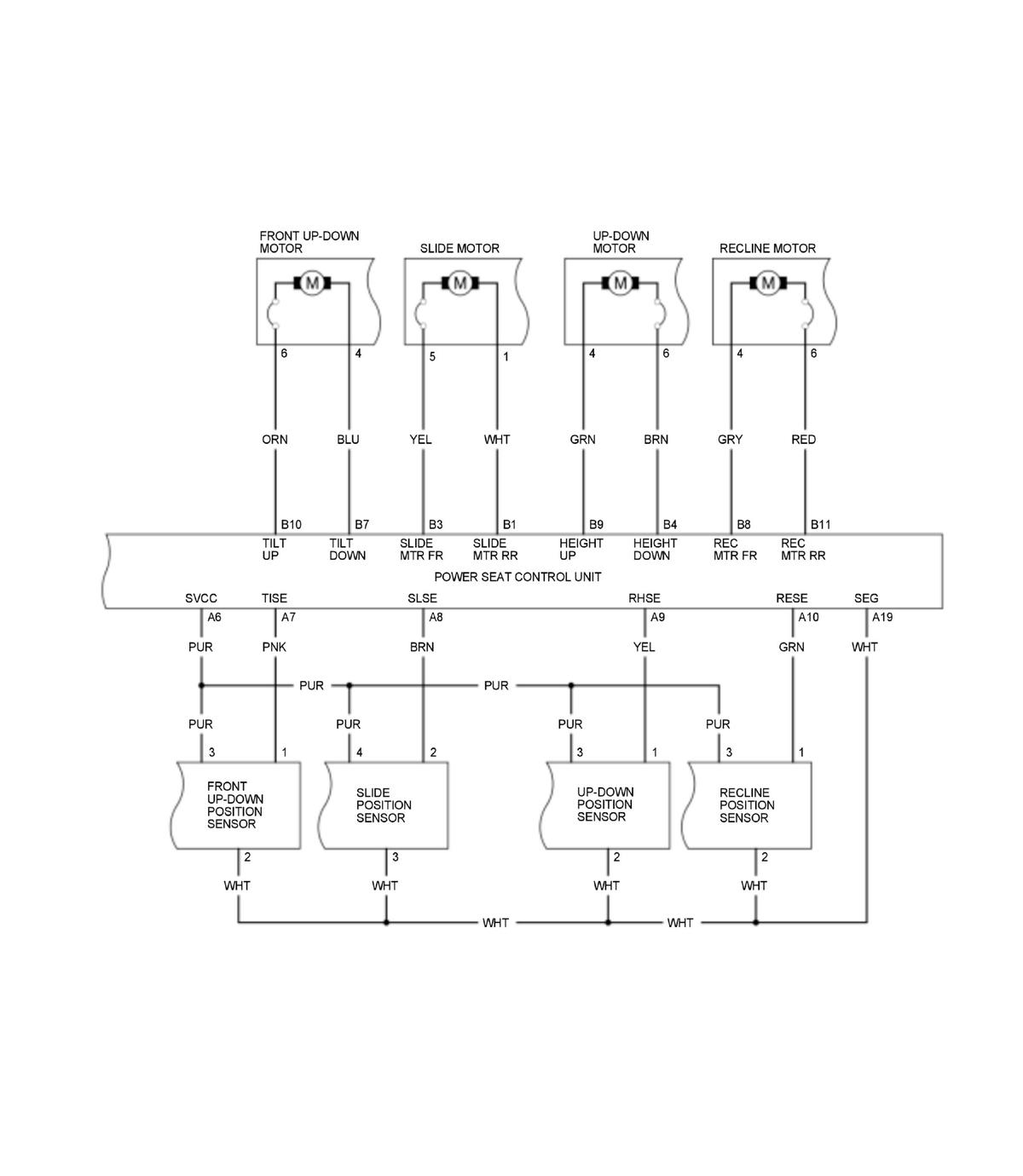

GHH445754Courtesy of HONDA, U.S.A., INC.

Power Mirror

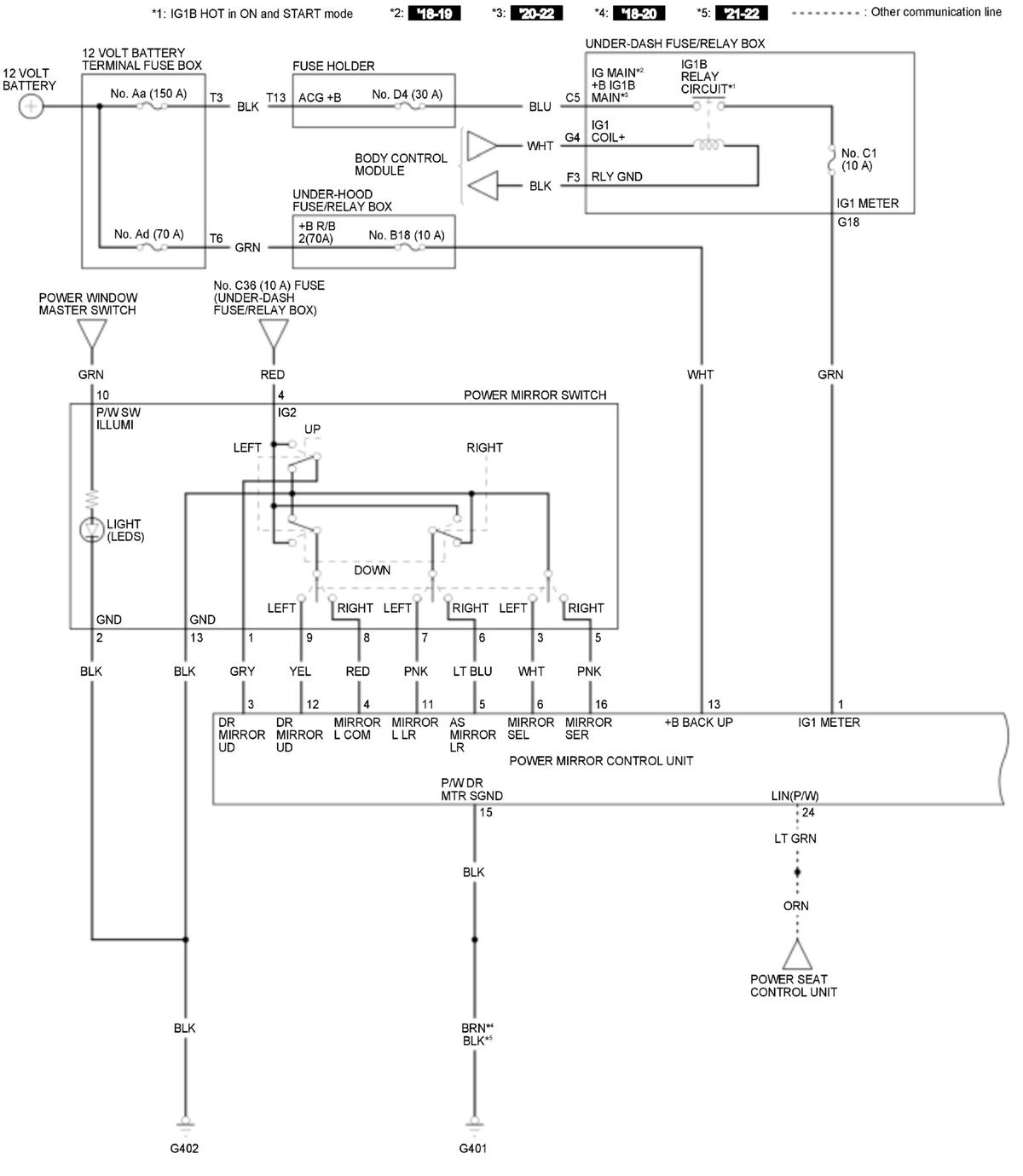

GHH445755Courtesy of HONDA, U.S.A., INC.

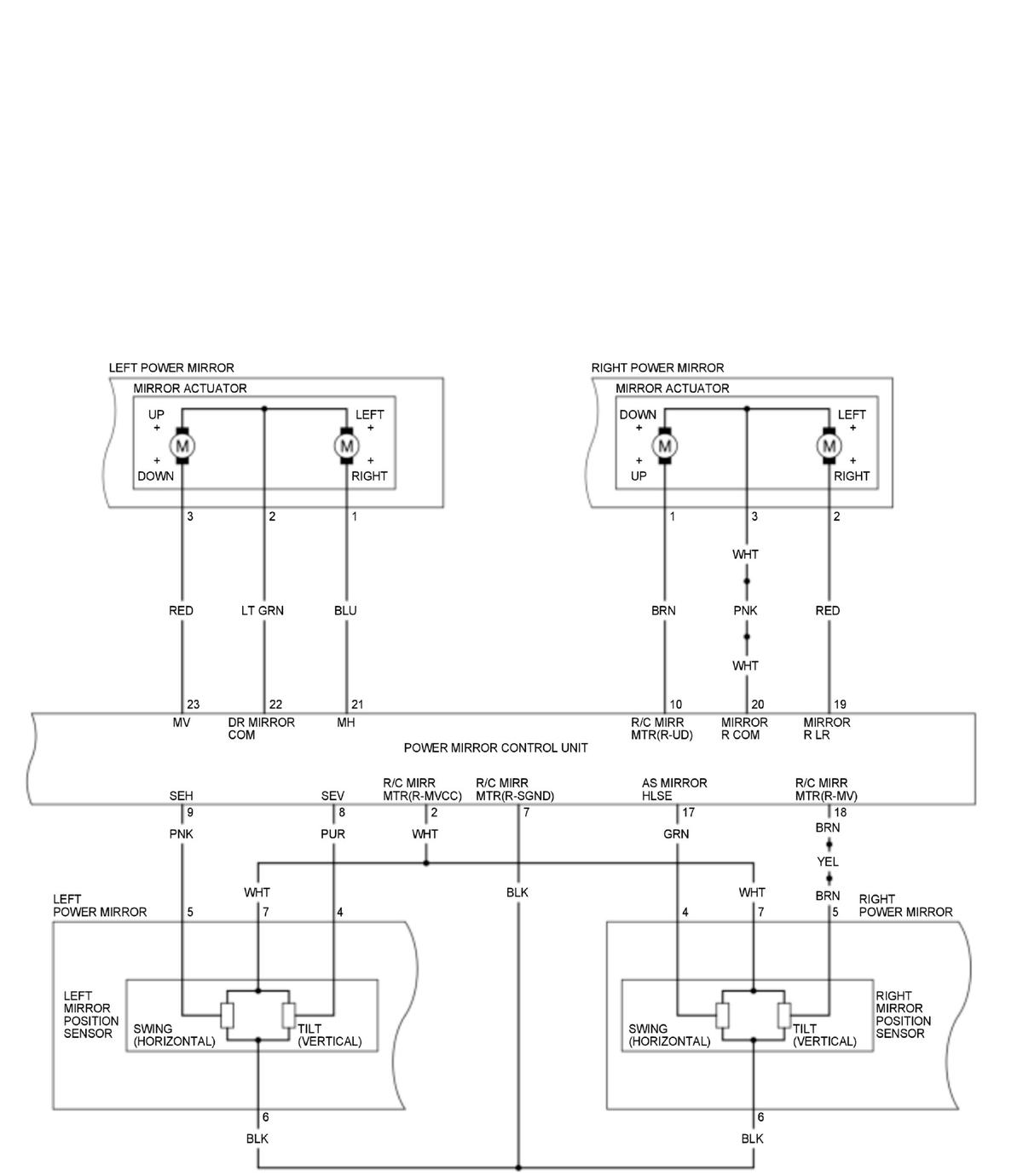

GHH445756Courtesy of HONDA, U.S.A., INC.
