Climate Control Unit Connector End View (Climate Control) (View 386)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

TAN
Behind Climate Control Unit
On Dashboard Wire Harness (View of Middle to Passenger's Side)
Connector A

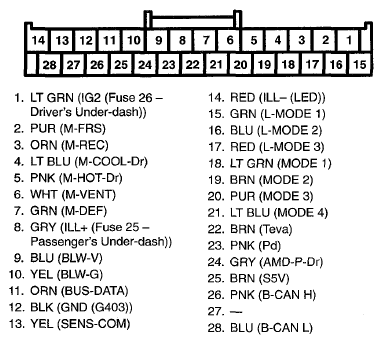

Fig 1: Climate Control Unit Connector Terminals - Connector A (View 386)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

Fig 2: Climate Control Unit Connector Terminals - Connector B (View 386)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
