Rear Power Window Motor: Test

Motor Test

1. Rear Door Panel - Remove Rear Door Panel - Removal
2. Rear Power Window Motor - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

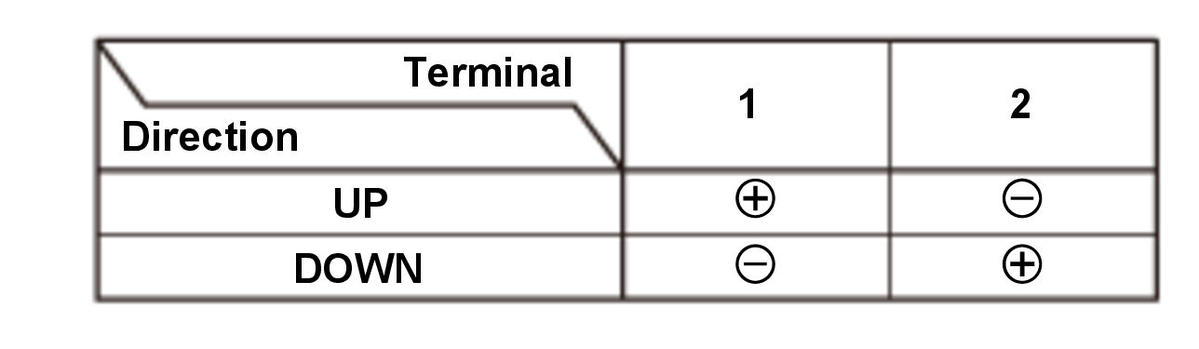

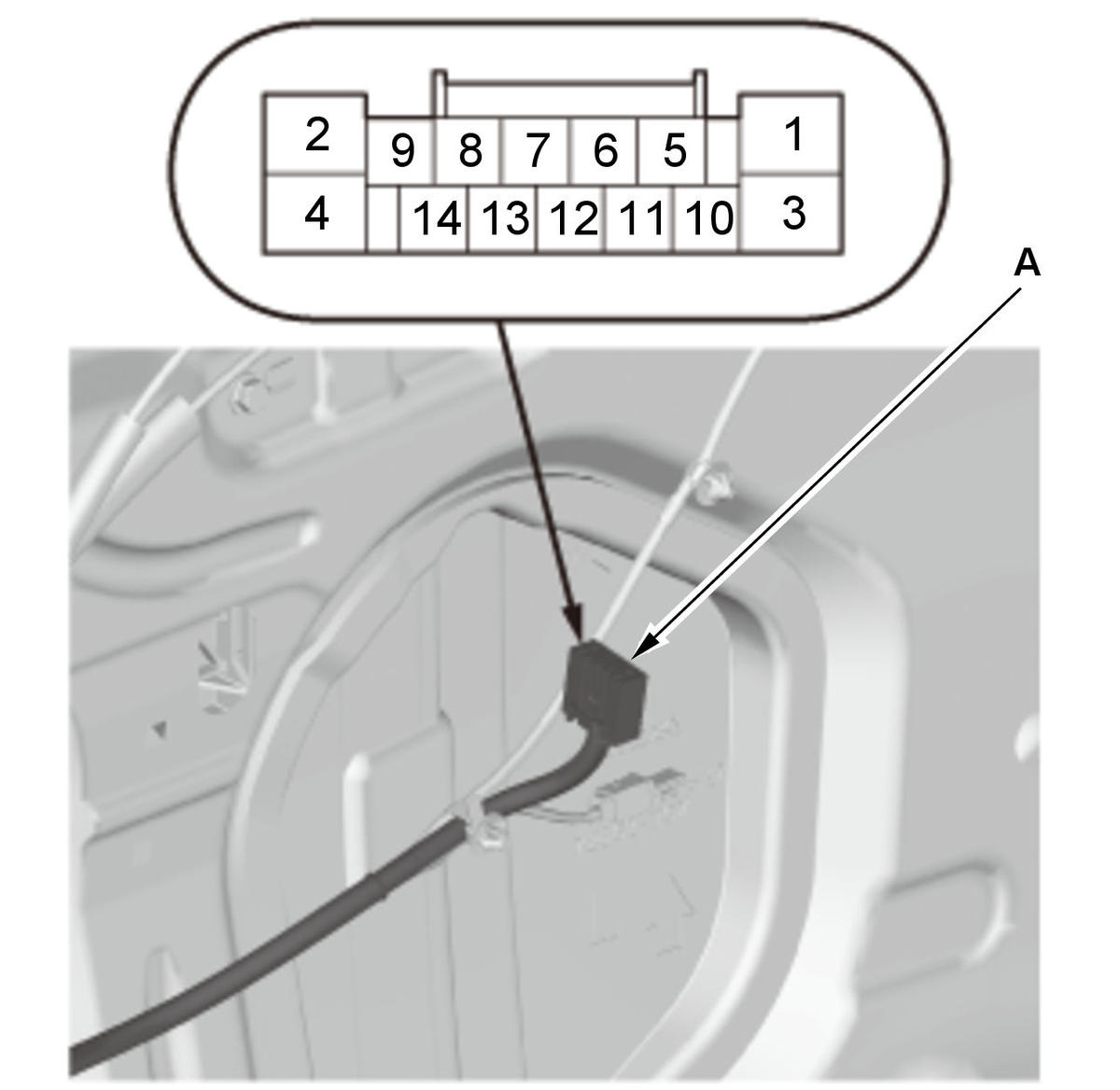

   1. Test the motor in each direction by connecting 12 volt battery power and ground at the connector (A) according to the table. When the motor stops running, disconnect 12 volt battery power immediately. If the motor does not run or fails to run smoothly, remove the rear door regulator Rear Door Glass And Regulator - Removal , then go to step 2.

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

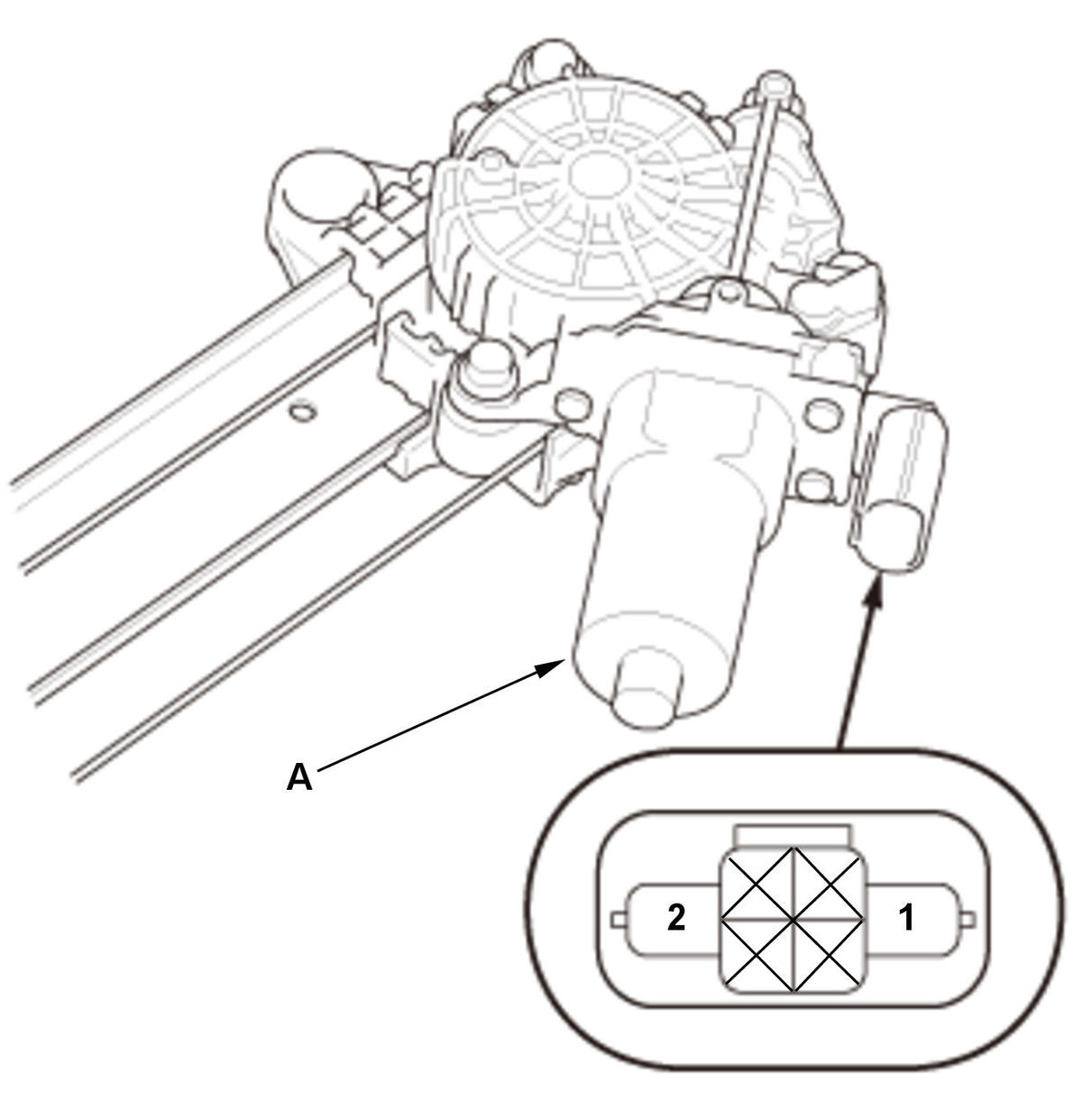

   2. Test the rear power window motor (A) by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 3. If the motor does not run or fails to run smoothly, the rear power window motor is faulty; replace the rear door regulator Rear Door Glass And Regulator - Removal & Install If the motor runs smoothly, troubleshoot the rear power window motor circuit or adjust the rear door glass Door Glass Adjustment .

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
