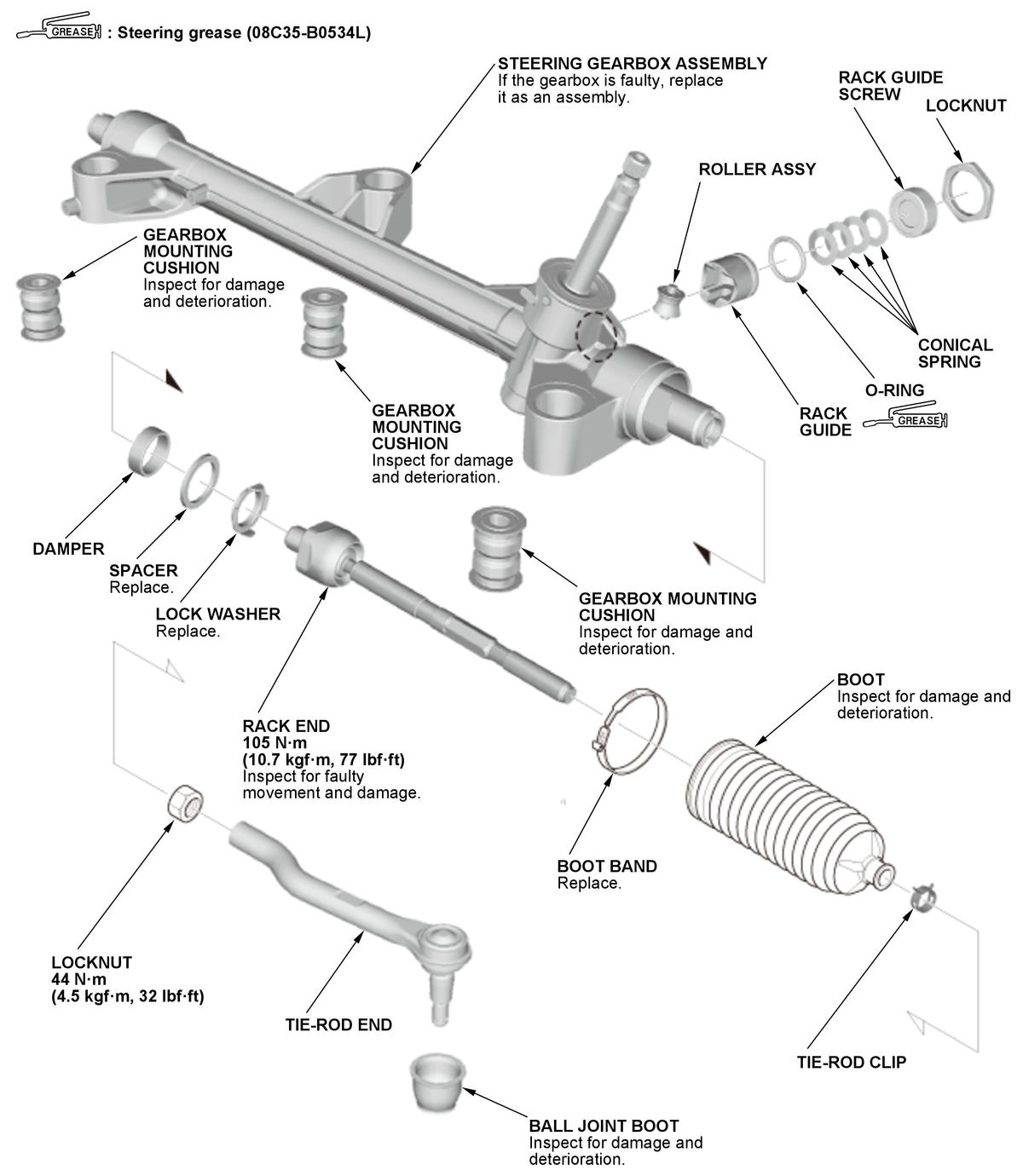

Exploded View
NOTE:
For these operations, refer to the complete procedure as needed.
- Rack End Removal And Installation .
- Rack guide adjustment .
- Tie-rod end ball joint boot replacement .
- If the rack guide is removed, rack guide adjustment is necessary .
- Steering Gearbox
Exploded view
