Alternator Overhaul: Reassembly

NOTE:

Where icon is shown, further information shown below.

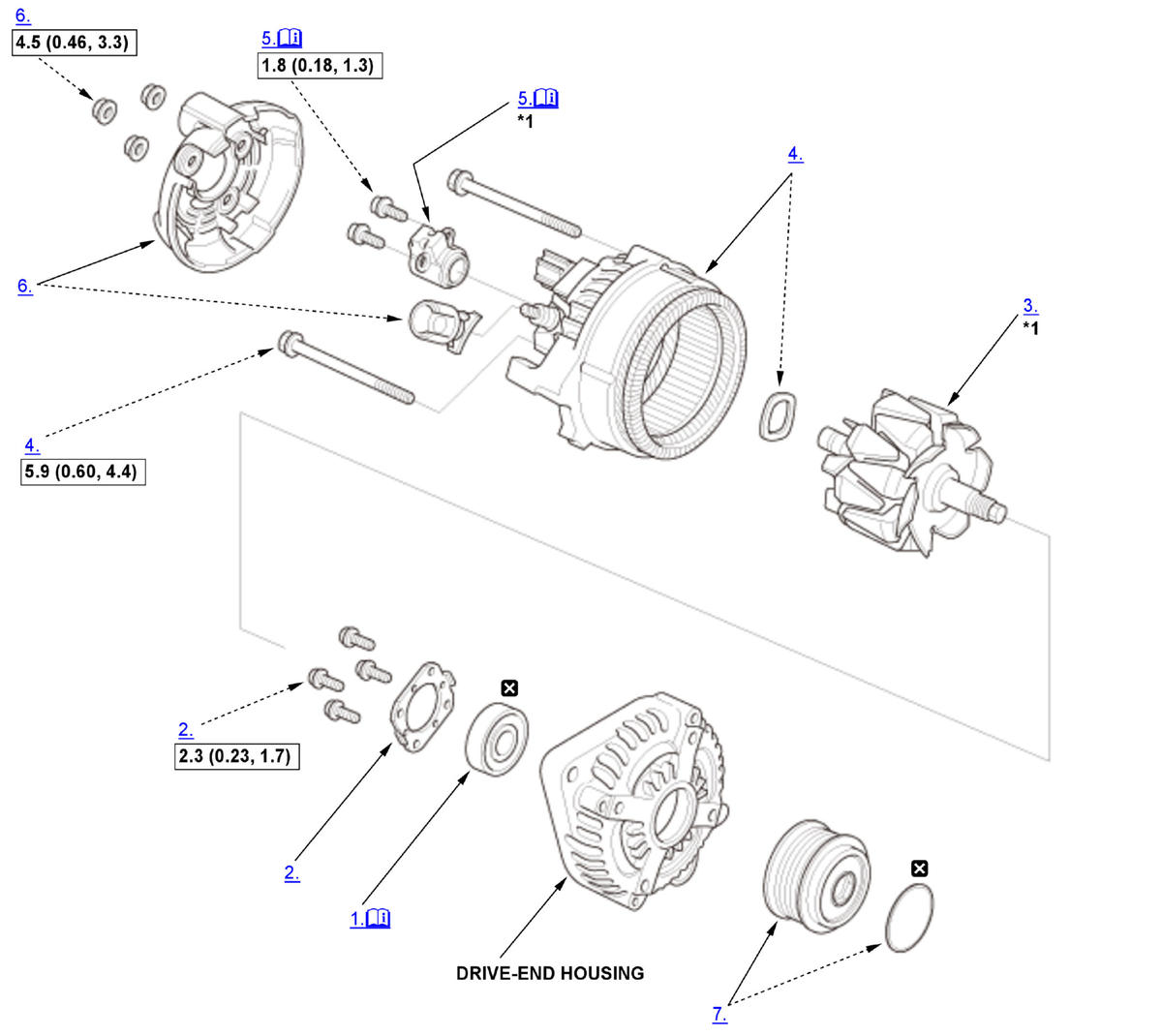

GHH451110Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Torque: N.m (kgf.m, lbf.ft)
Replace
*1 These parts have inspection items.
  1. Front Bearing - Install

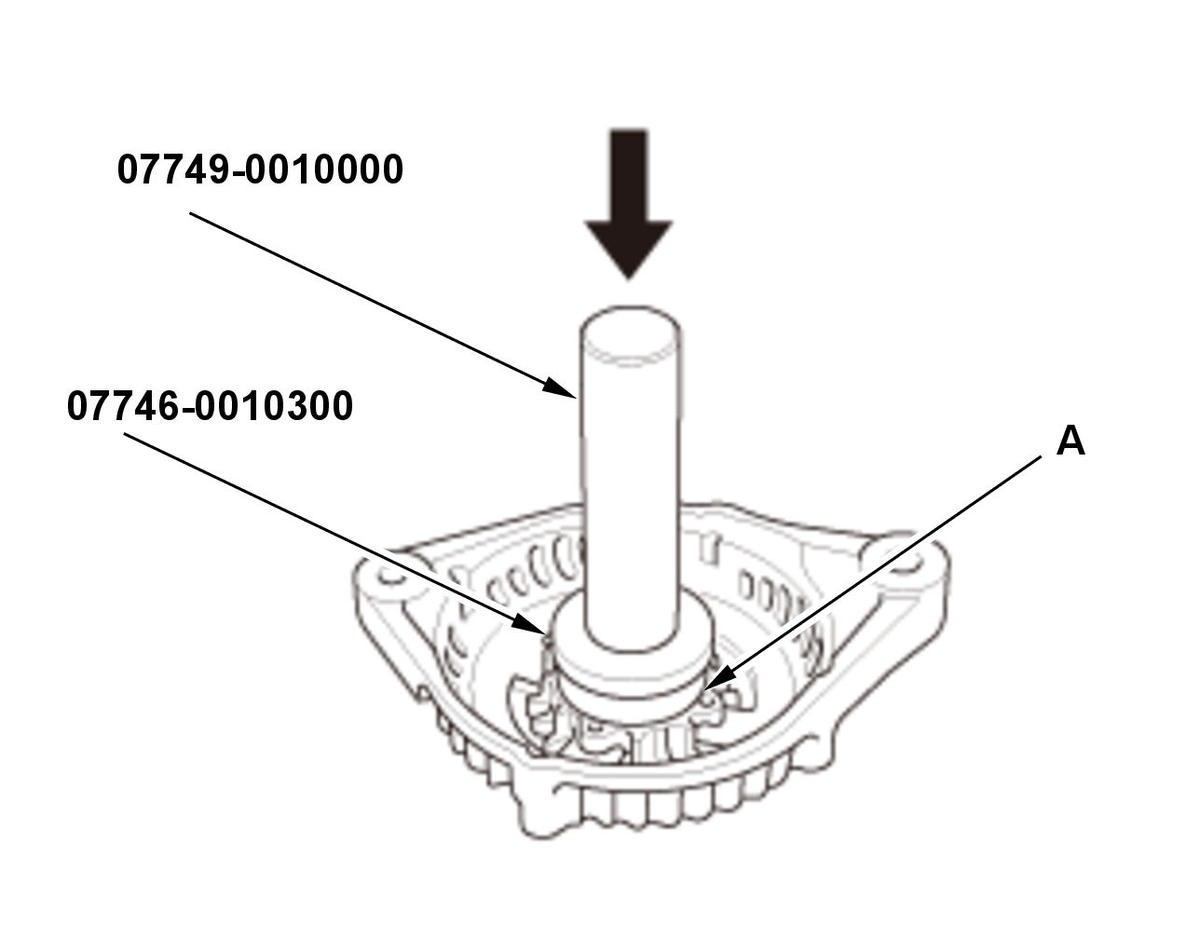

    GHH451111Courtesy of HONDA, U.S.A., INC.
    		 1. Use a hand press to install a new front bearing (A) in the drive-end housing, with the driver handle, 15 x 135L, and the bearing driver attachment, 42 x 47 mm.
  2. Front Bearing Retainer - Install
  3. Rotor - Install
  4. Rear Housing Assembly - Install
  5. Brush Holder - Install

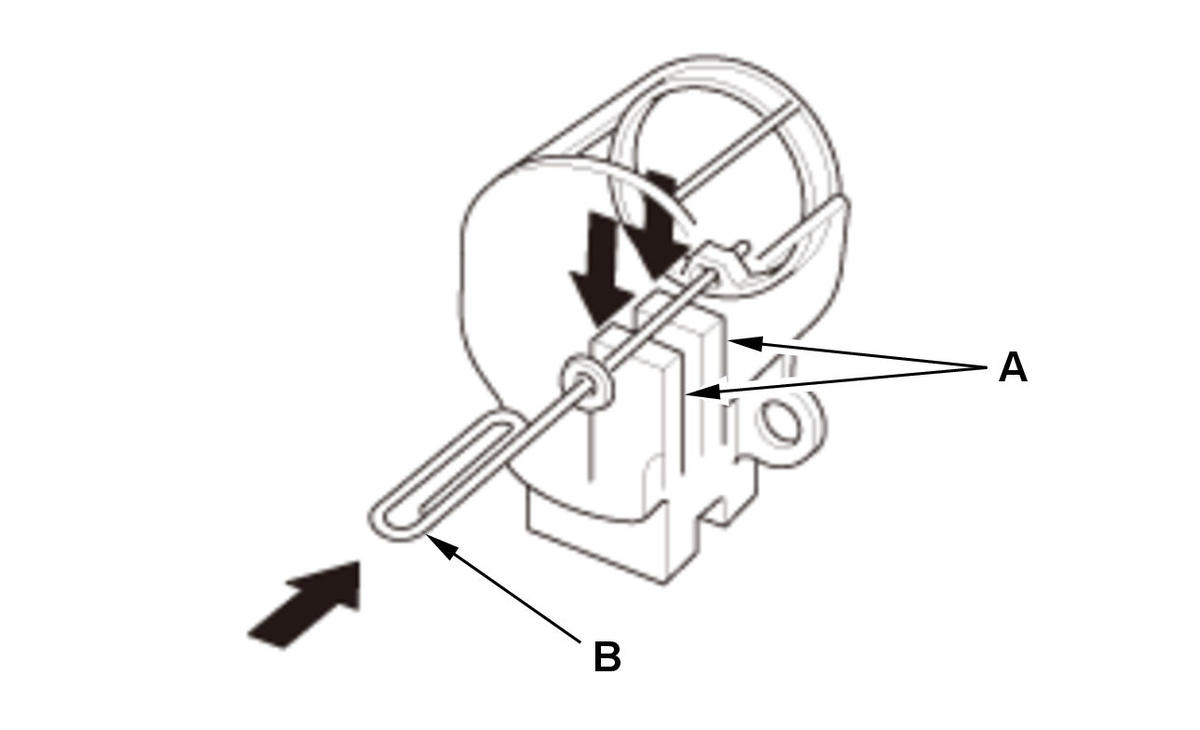

    GHH451112Courtesy of HONDA, U.S.A., INC.
    		 1. Push the brushes (A) in, then insert a pin or drill bit (B) (about 1.6 mm (1/16 in) diameter) to hold them there.

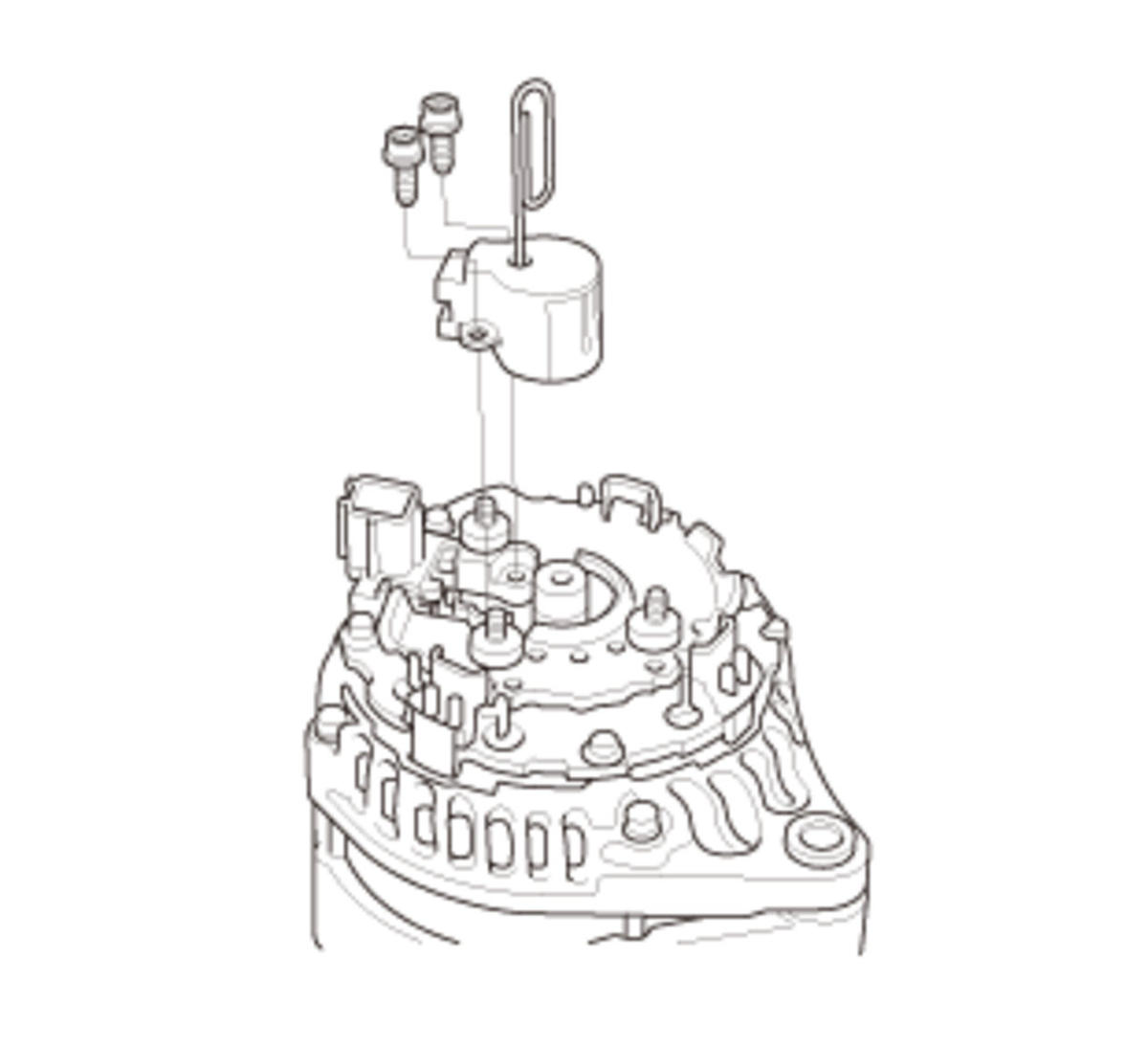

    GHH451113Courtesy of HONDA, U.S.A., INC.
    		 2. Install the brush holder.

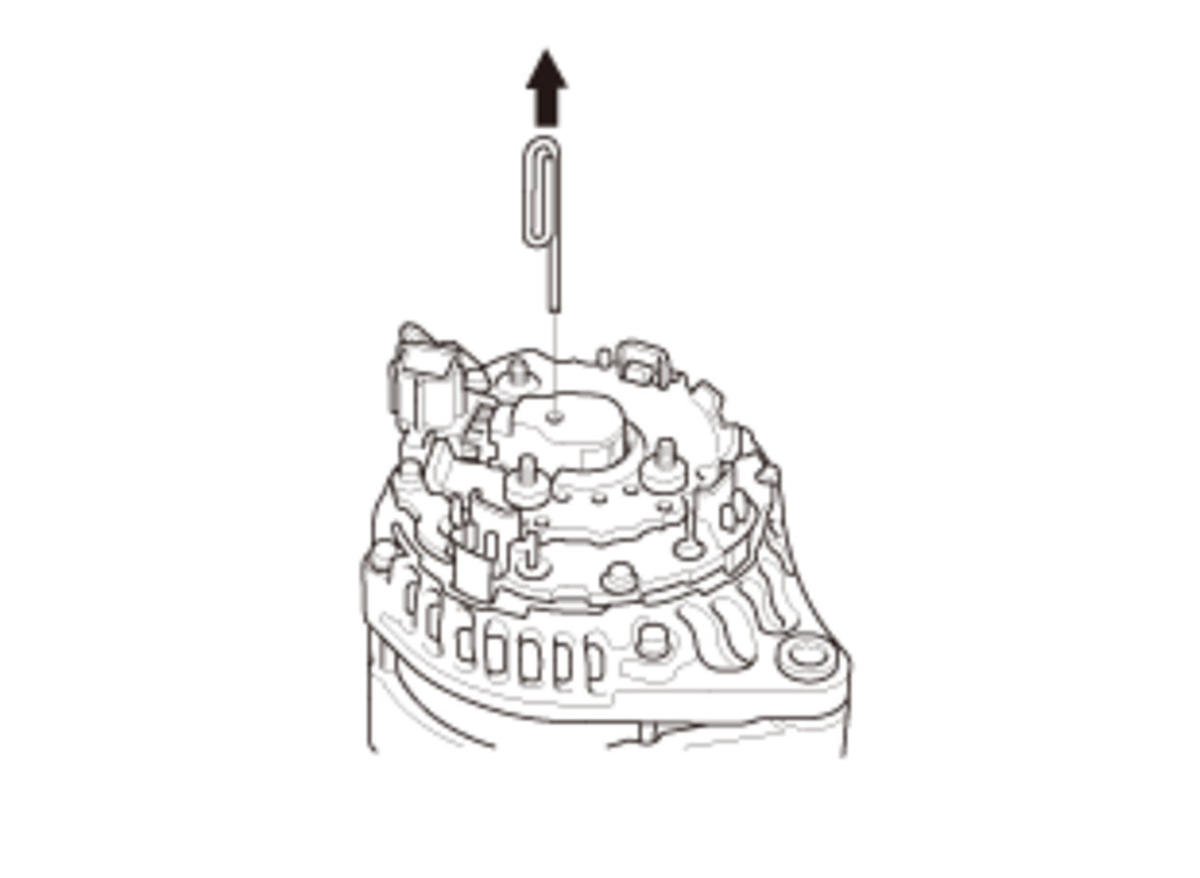

    GHH451114Courtesy of HONDA, U.S.A., INC.
    		 3. Pull out the pin or drill bit.
  6. End Cover and Terminal Insulator - Install
  7. OAD Pulley - Install
