Removal and Installation

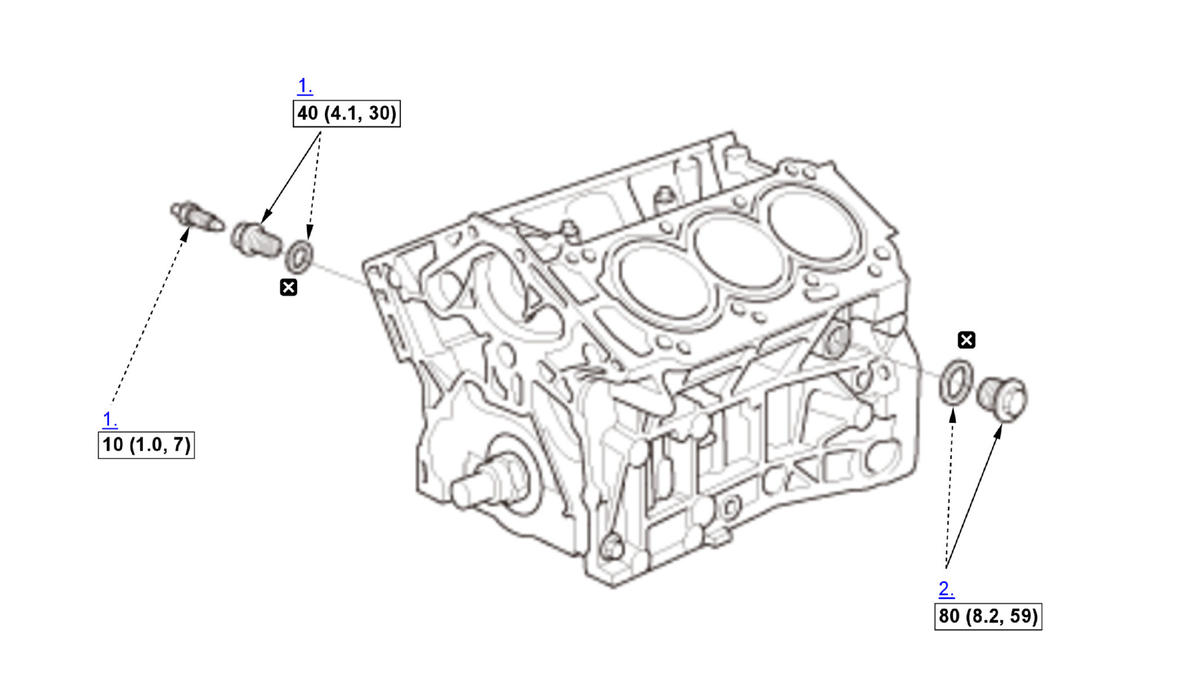

Fig 1: Engine Block Sealing Bolt With Torque Specifications
GHH455059Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
Replace
  1. Drain Bolt - Remove
  2. Sealing Bolt - Remove
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
