Home › Honda › 2018 › Clarity Plug-In Hybrid › Repair and Diagnosis › Body & Frame › Windows › Windows / Glass - Testing & Troubleshooting (Plug-In) › Circuit Diagram › Power Windows

Power Windows

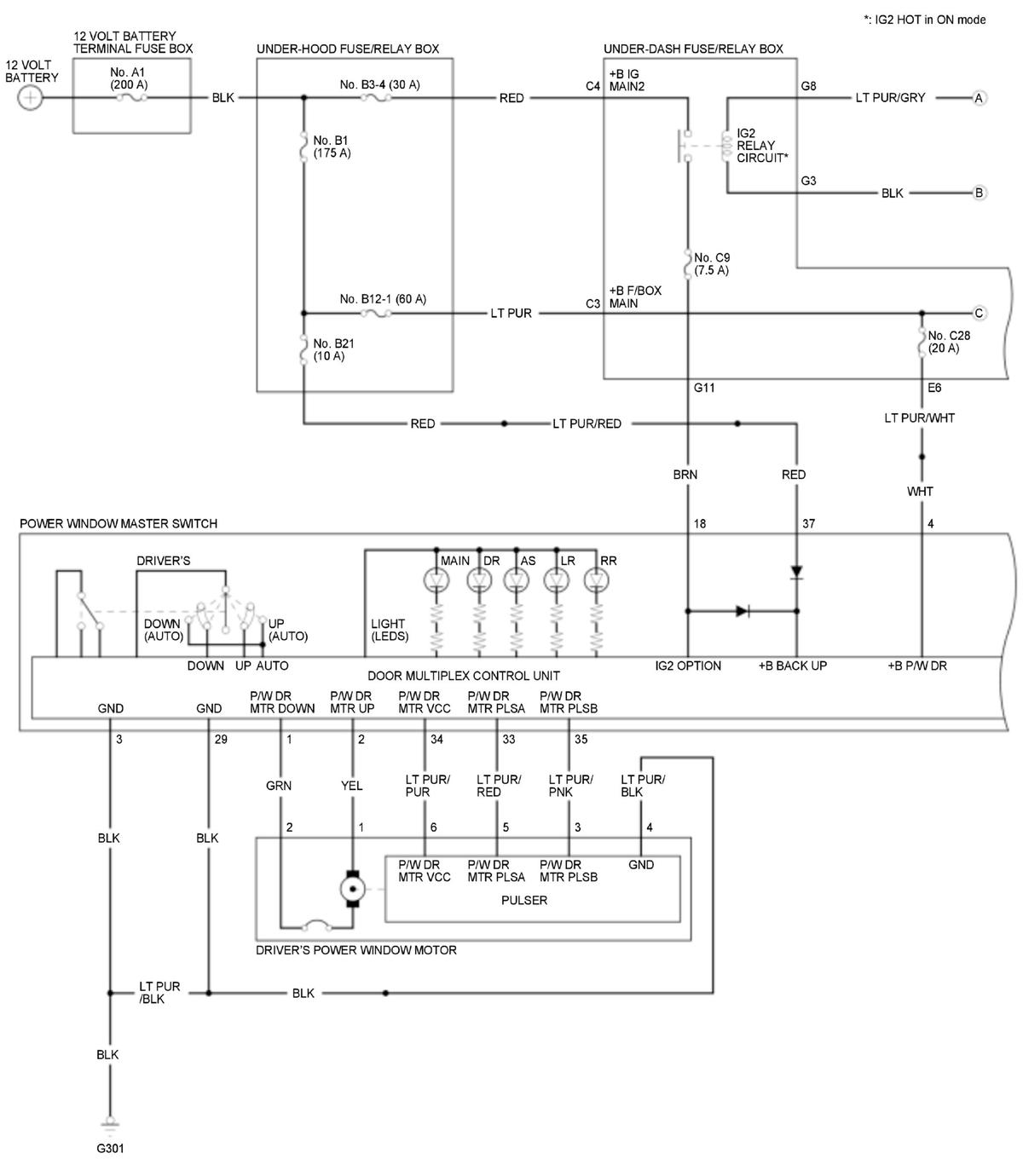

GHH421746Courtesy of HONDA, U.S.A., INC.

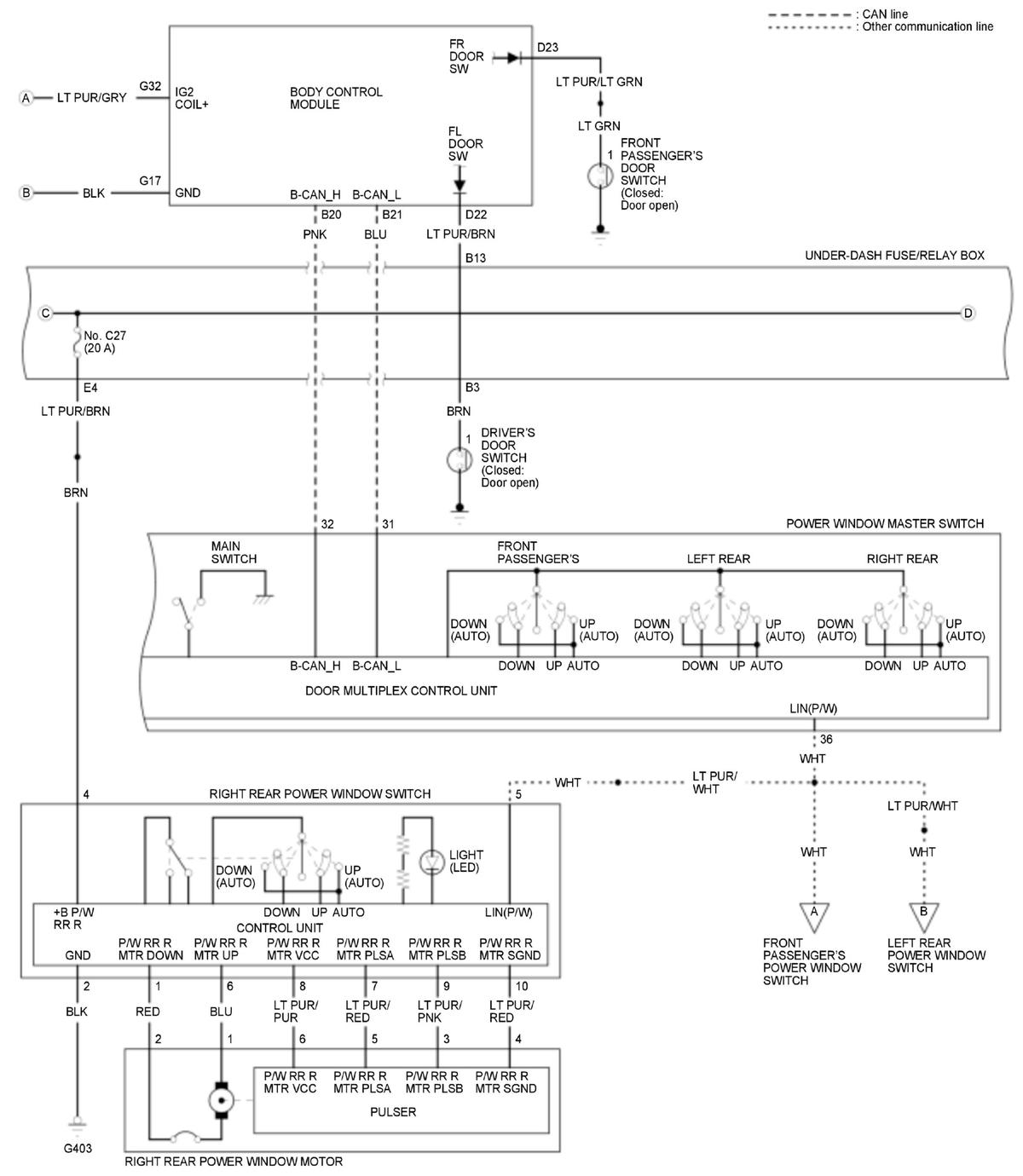

GHH421747Courtesy of HONDA, U.S.A., INC.

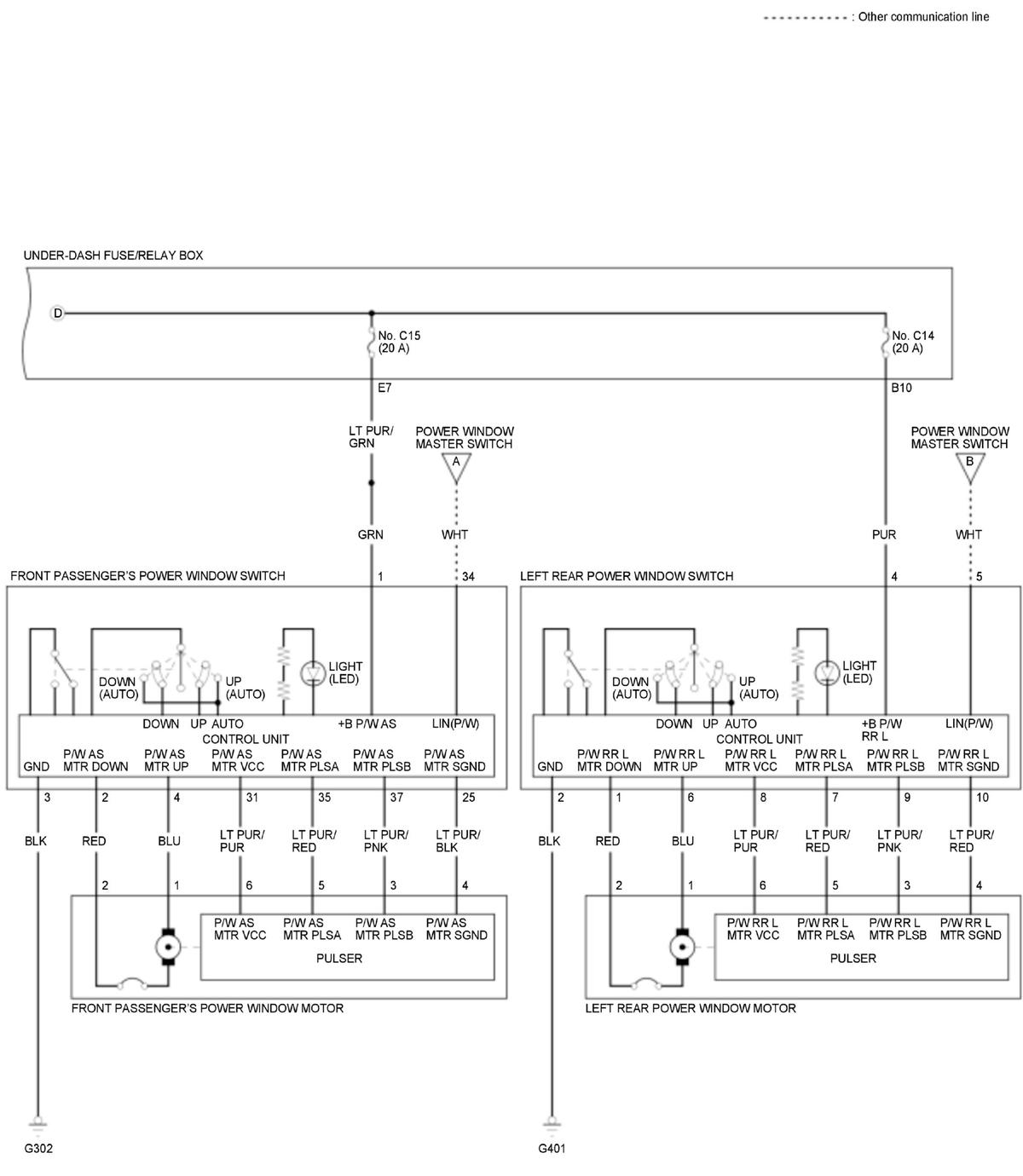

GHH421748Courtesy of HONDA, U.S.A., INC.
