Relay Box Locations And Control Unit Locations
›
Relay and Control Unit Locations
›
Engine Compartment (2/2)
Engine Compartment (2/2)

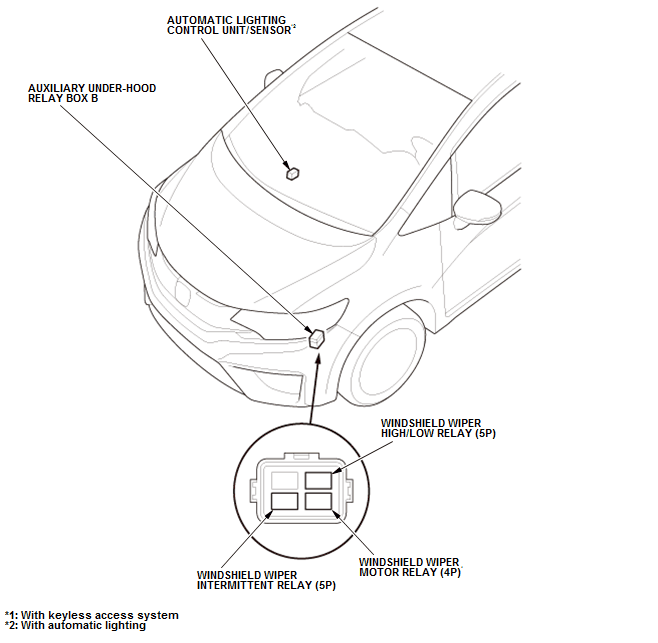

Engine Compartment (2/2) Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
