Lubrication System - Testing & Troubleshooting
›
Component Location Index
›

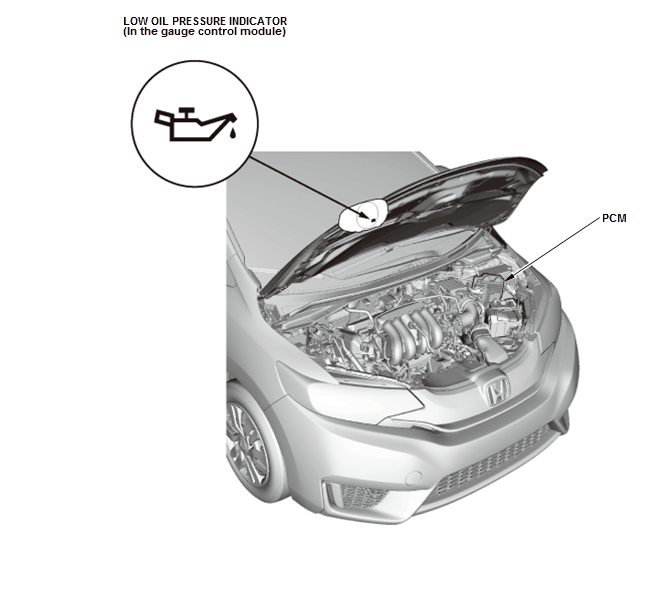

Engine Lubrication System Component Location Index

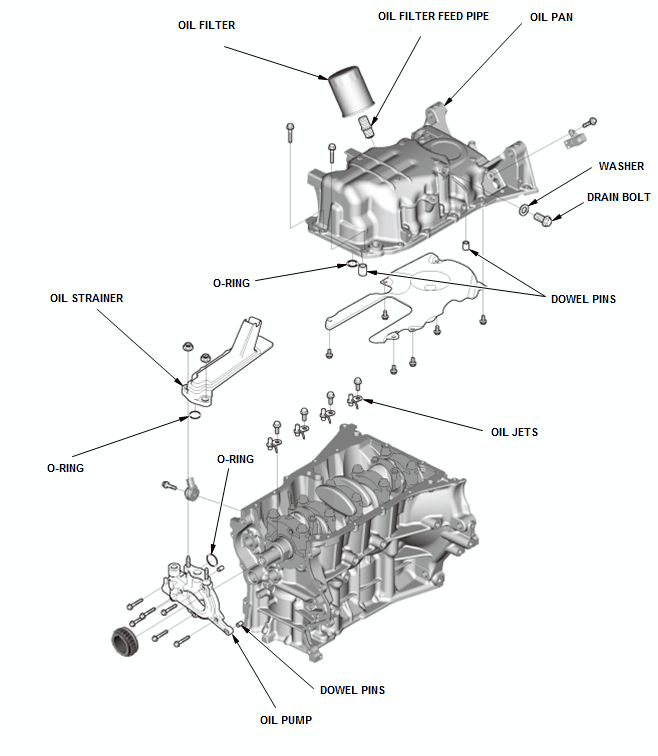

Engine Lubrication System Component Location Index
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
