Engine Oil Replacement: Replacement

NOTE:

Engine - Warm Up

1. Allow the engine to reach operating temperature (fan comes on at least twice).
Vehicle - Lift

Engine Oil - Drain

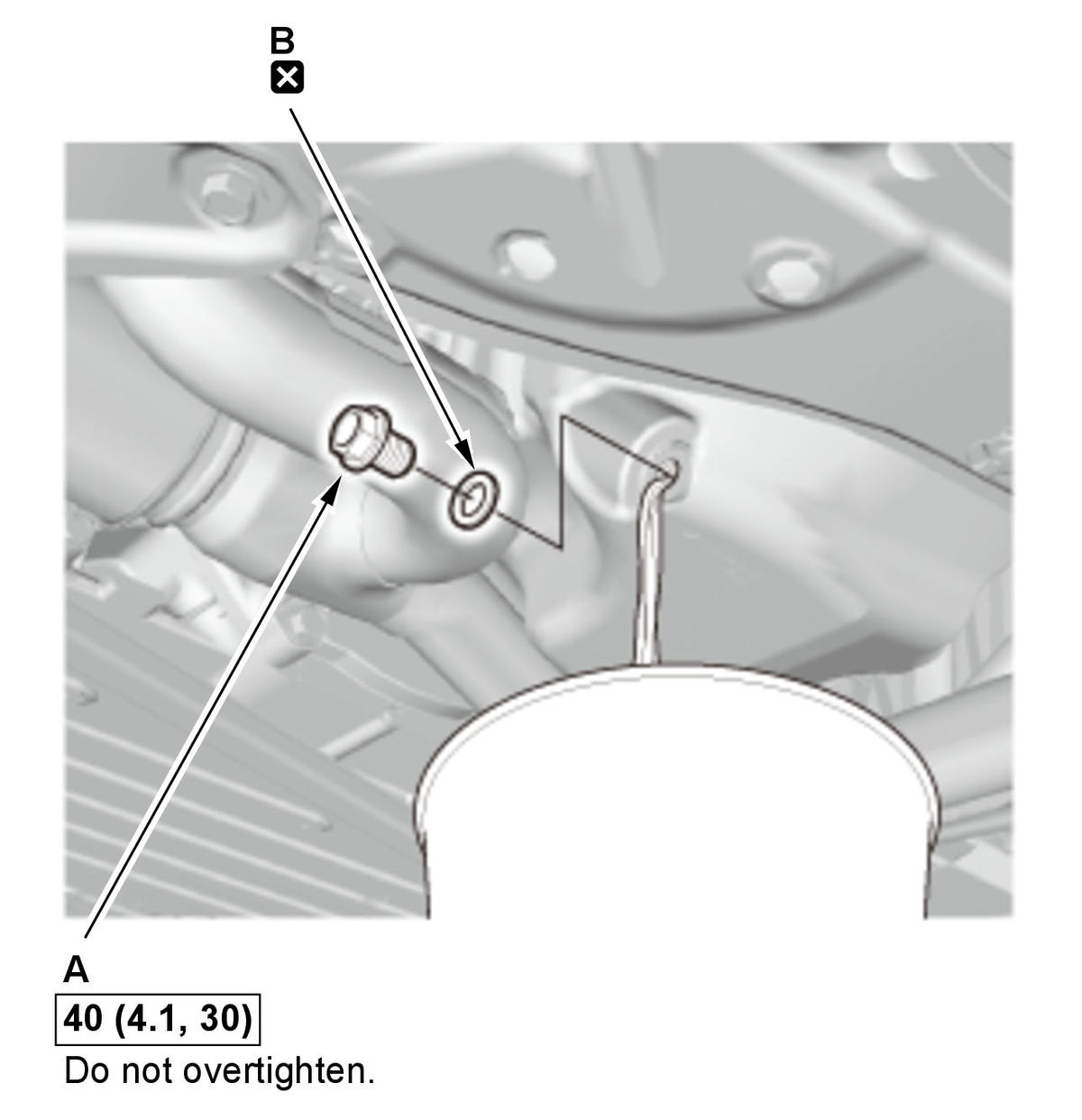

Fig 1: Engine OIl Drain Bolt With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Remove the drain bolt (A), and drain the engine oil.

2. Reinstall the drain bolt with a new washer (B) and torque to specification.

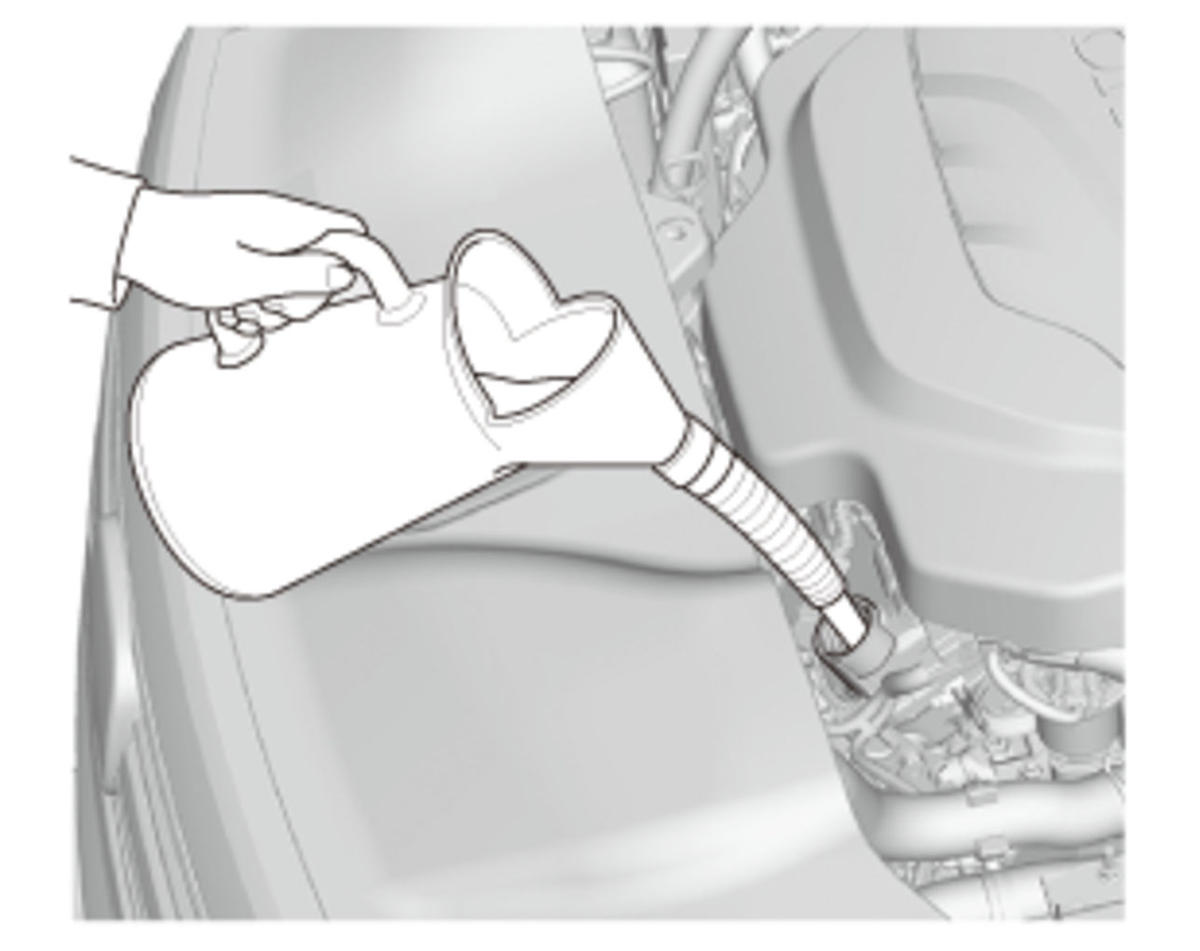

Engine Oil - Refill

Courtesy of HONDA, U.S.A., INC.

1. Refill the engine with the recommended engine oil .

Capacity

After Engine Overhaul:

6.1 L (6.4 US qt)

At Oil Change:	5.1 L (5.4 US qt)
At Oil Change including Filter:	5.4 L (5.7 US qt)

Engine Oil Level - Check

1. Run the engine for more than 3 minutes, then check the oil level and the oil leakage.

Maintenance Minder - Reset

1. If the Maintenance Minder required to replace the engine oil, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder"). If the Maintenance Minder did not require to replace the engine oil, reset the Maintenance Minder with the HDS (see "Resetting the Individual Maintenance Items").
