VSA - System Diagram: Notes

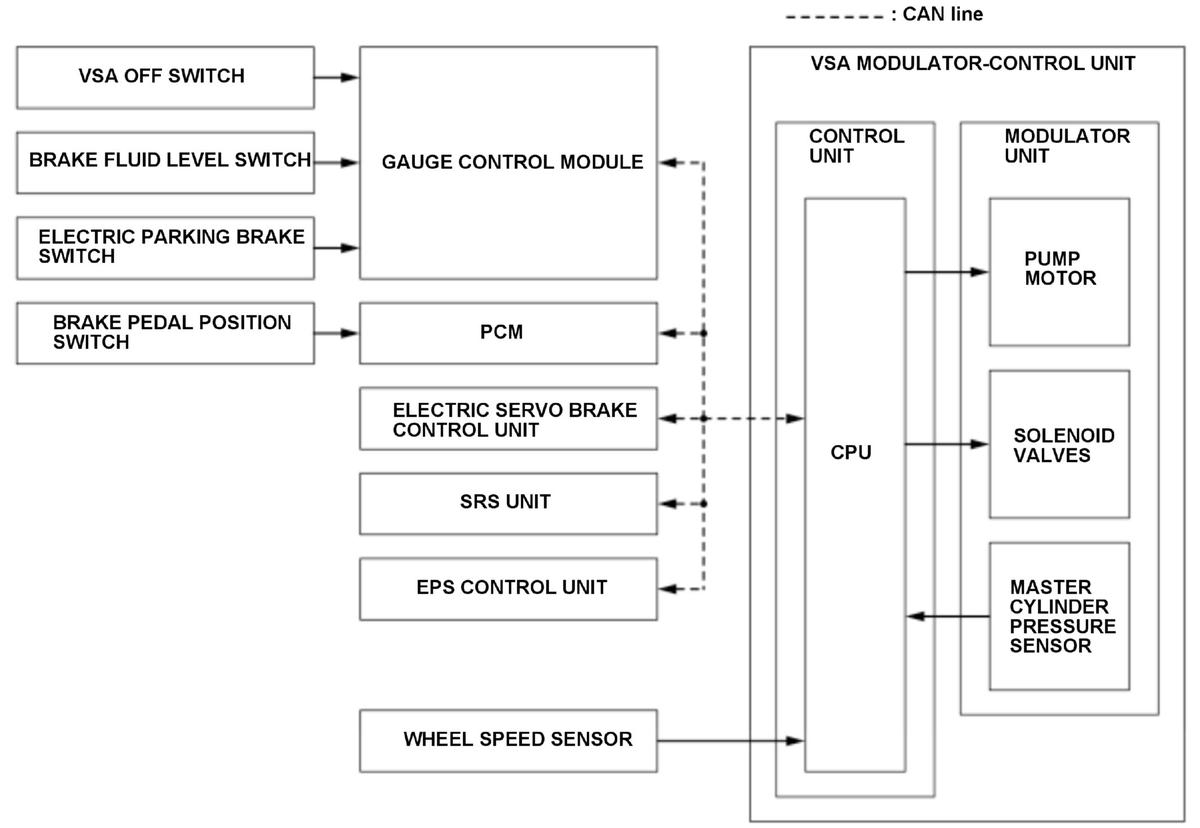

The system diagram of the VSA system is shown below.
For locations of each component on vehicle, refer to Component Location Index:
- VSA modulator-control unit, Wheel speed sensor, VSA OFF switch
- Electric parking brake switch
- PCM
- Gauge control module, Brake fluid level switch
- SRS unit
- EPS control unit
- Electric servo brake control unit
