Input Shaft Installation Height Inspection: Inspection

NOTE:  Remove all of the old liquid gasket from the sealing surface of the transmission housing.

1. Feed Pipe A - Install
2. Feed Pipe Flange - Install
3. Internal Snap Ring - Install

   Courtesy of HONDA, U.S.A., INC.

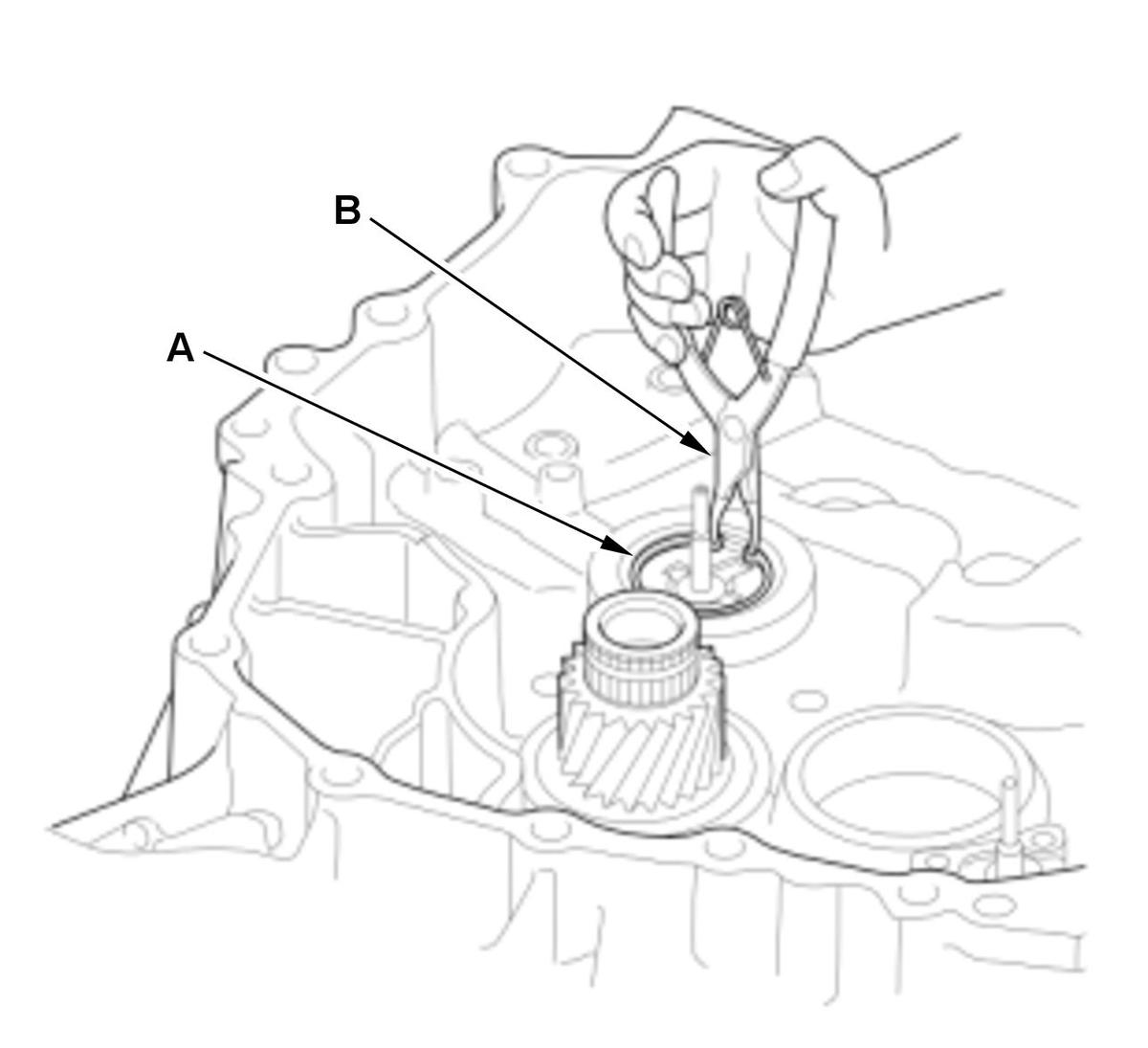

   1. Install the internal snap ring (A) by compressing it using commercially available snap ring pliers (B). NOTE: Be careful not to deform the snap ring by opening/closing it excessively. Make sure the snap ring is firmly installed in the groove.

4. Over Drive Gear Bearing (Transmission Housing Side) - Install
5. Over Drive Gear Bearing (Over Drive Clutch Side) - Install
6. Over Drive Gear - Install
7. Over Drive Clutch - Install
8. Input Shaft - Install

   NOTE:  No need to install the O-rings in this procedure.

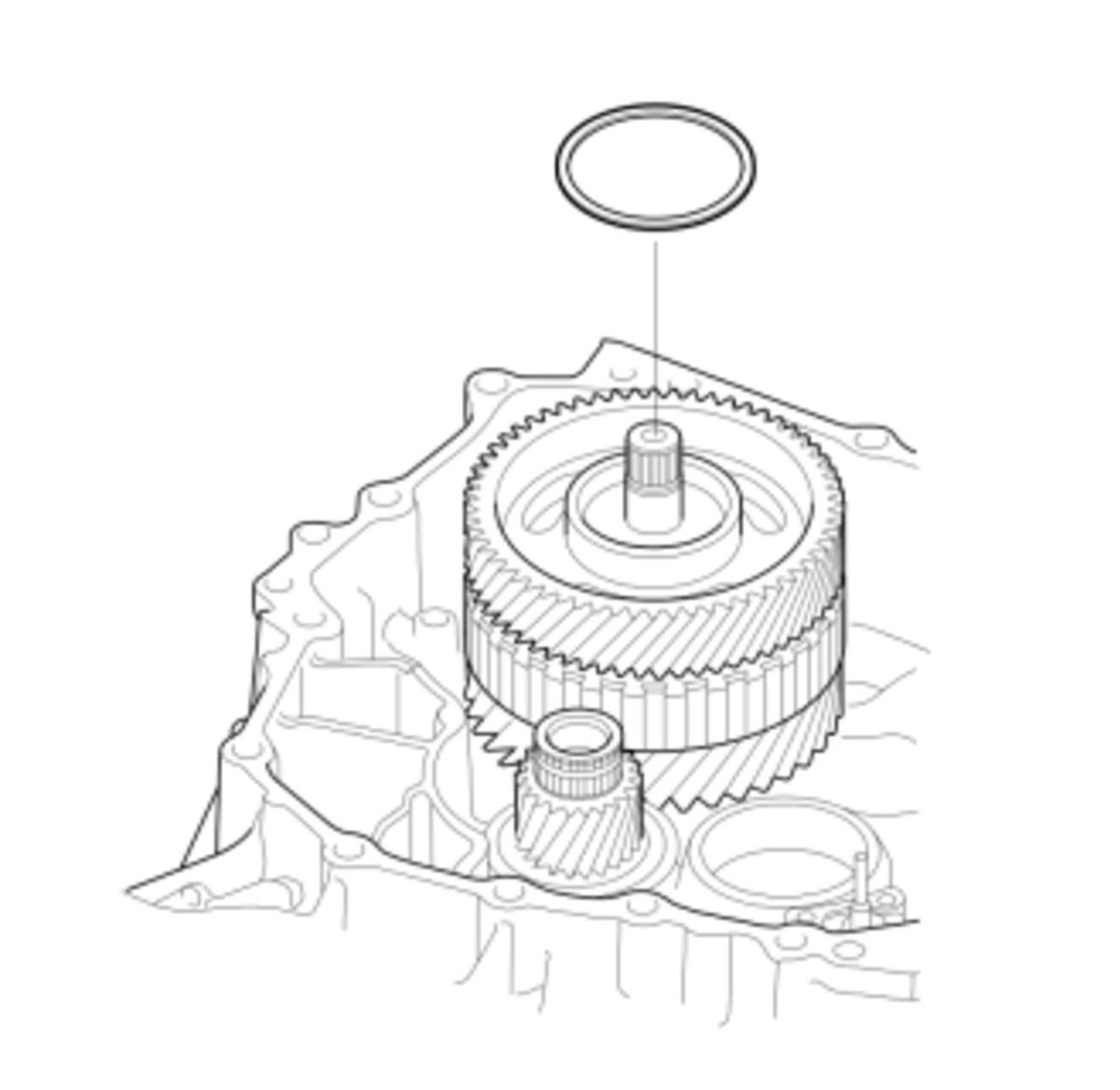

9. Shim - Install

   Courtesy of HONDA, U.S.A., INC.

10. Input Shaft Installation Height - Inspect

    Courtesy of HONDA, U.S.A., INC.

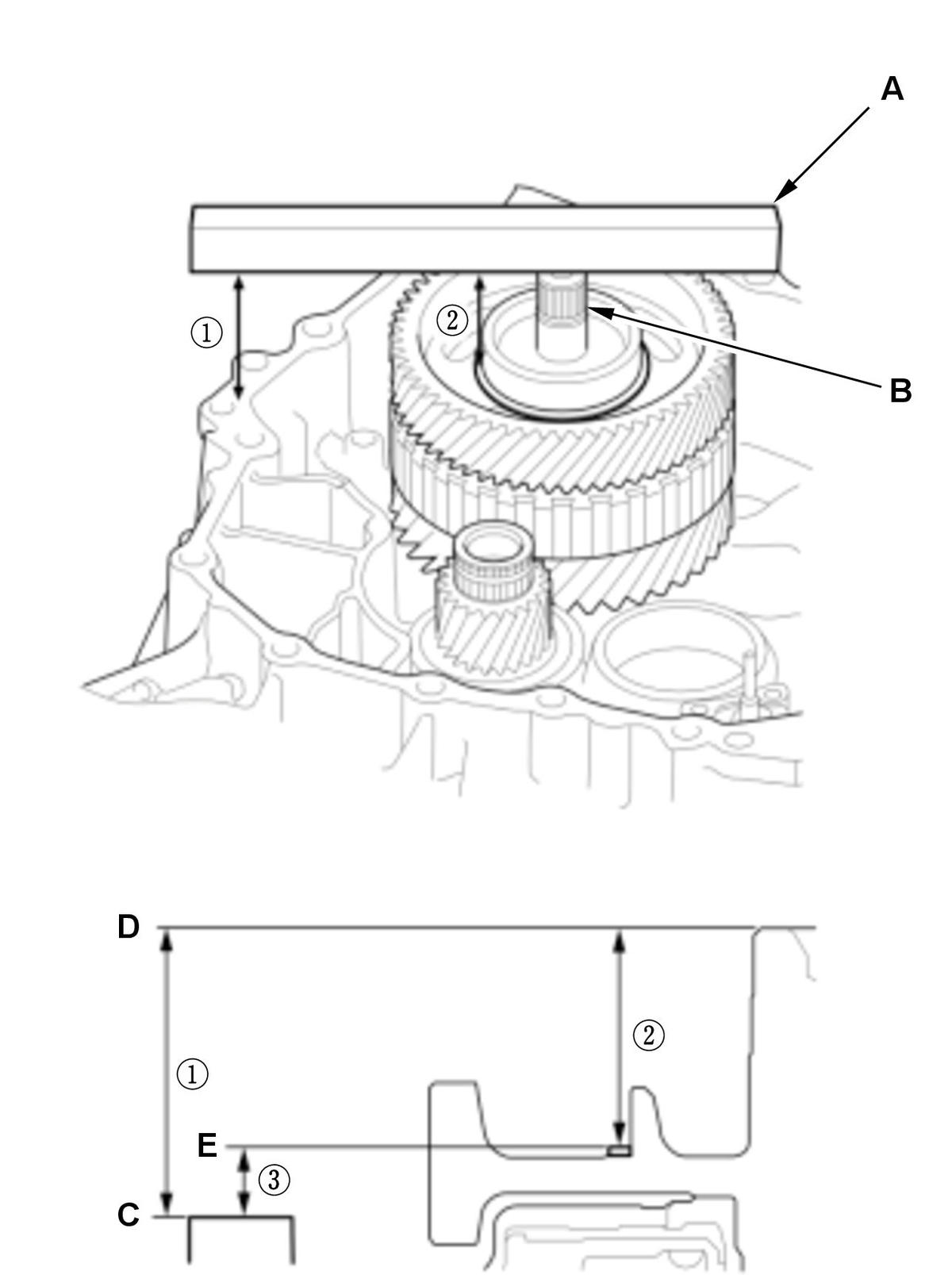

    1. Set a straight edge (A) on the input shaft (B). 2. Measure the height Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. between the transmission housing surface (C) and the top of the input shaft (D). Measure at three locations, and average the reading. 3. Measure the height Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. between the shim surface (E) and the top of the input shaft (D). Measure at three locations, and average the reading. 4. Calculate the height Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. in accordance with the following formula: Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. = Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. - Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. 5. Measure the shim thickness. Refer to the Parts catalog, then select appropriate shim so the height Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. is to be the standard value.

    Installation Height Standard:
    	16.165-16.210 mm (0.63642-0.63819 in)

    6. Install the selected shim, then recheck the installation height.
