Engine Oil Jet Replacement: Replacement

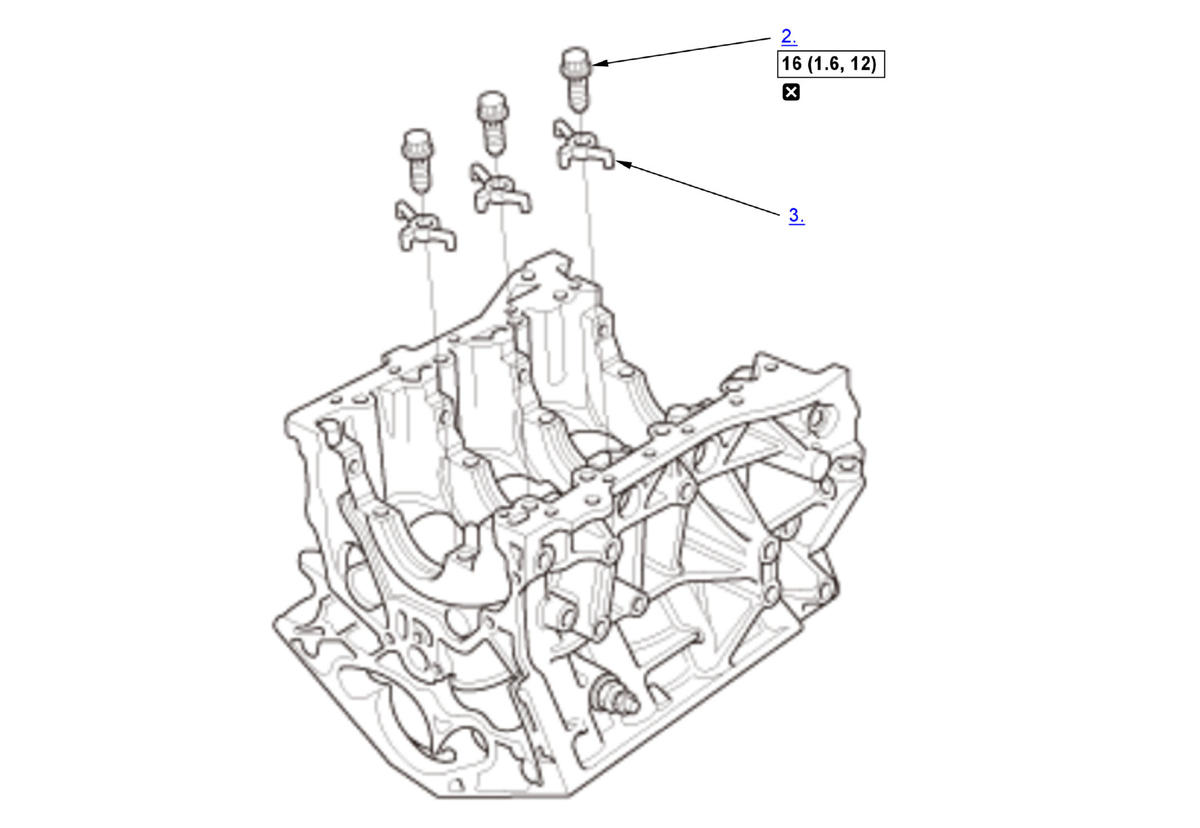

Fig 1: Oil Jet Bolt With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Crankshaft - Remove
2. Oil Jet Bolt - Remove
3. Oil Jet - Remove
4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal. NOTE: When installing the oil jet bolt, apply new engine oil to the bolt threads.
