Integrated Control Systems - Testing & Troubleshooting (Except Hybrid)
›
Component Location Index
›

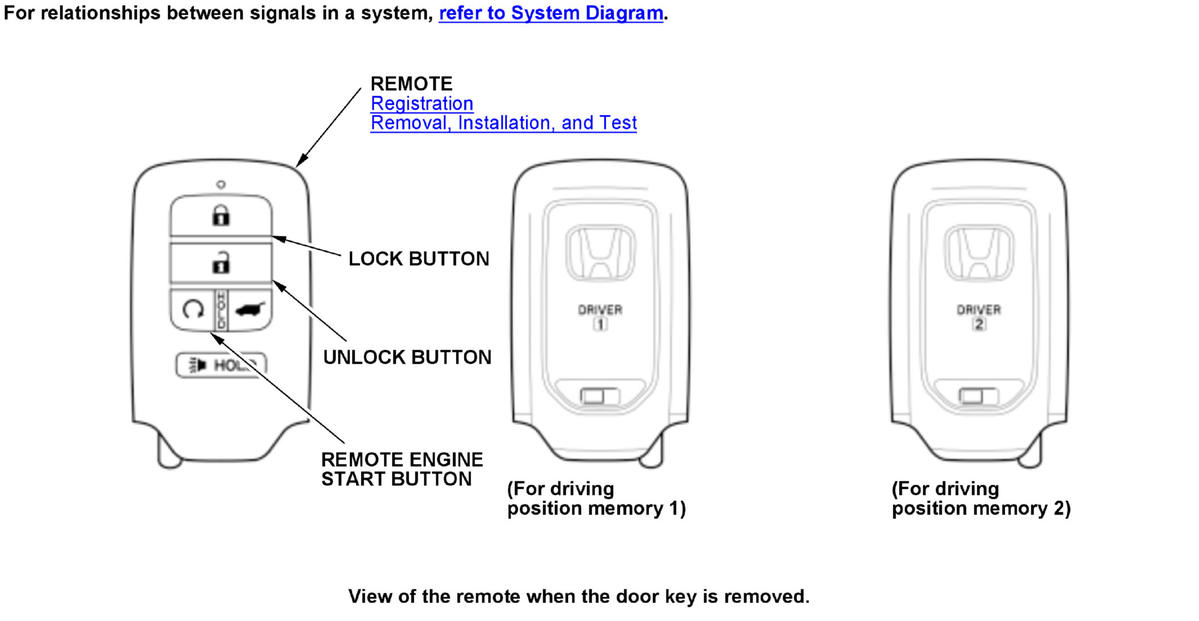

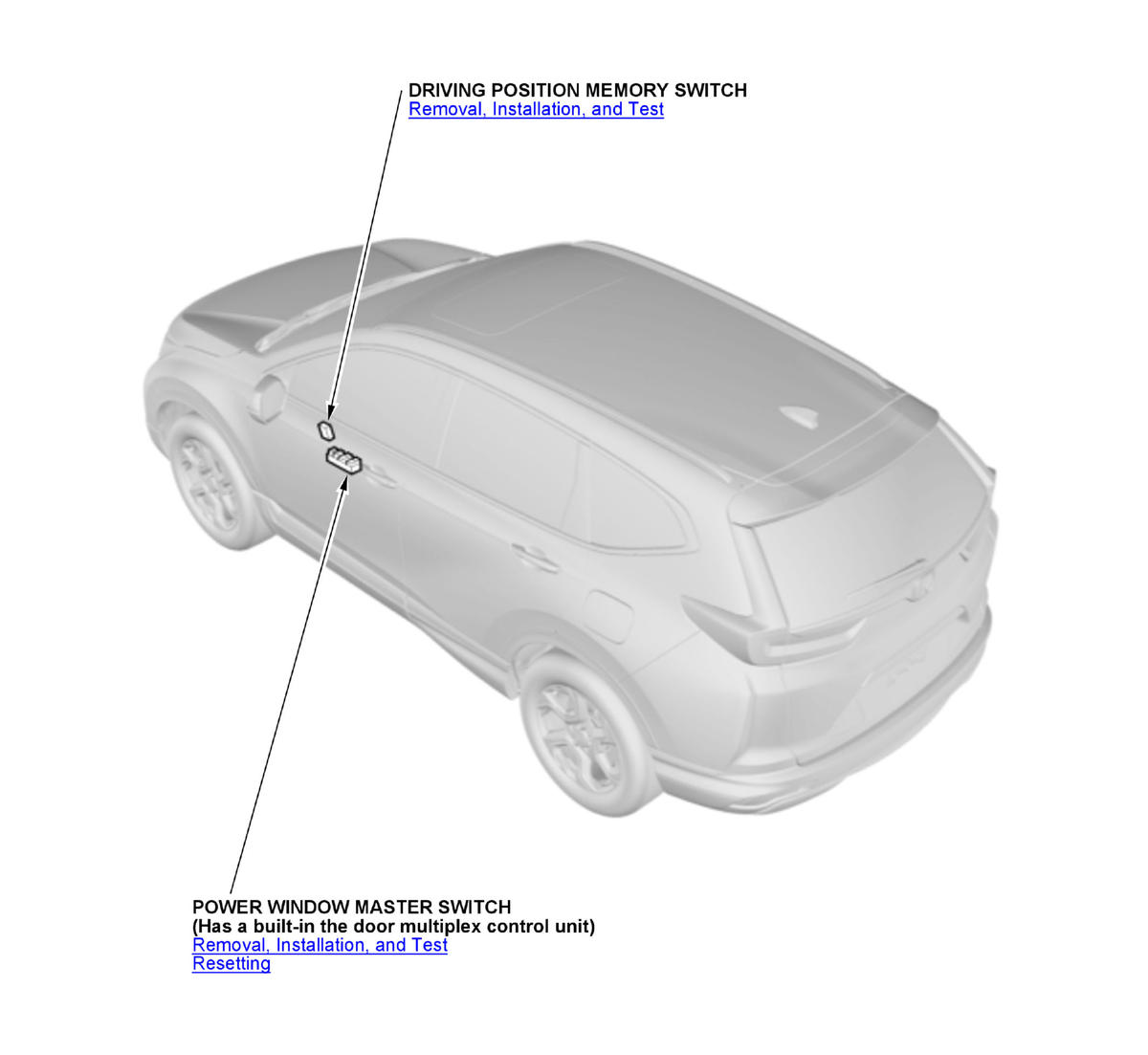

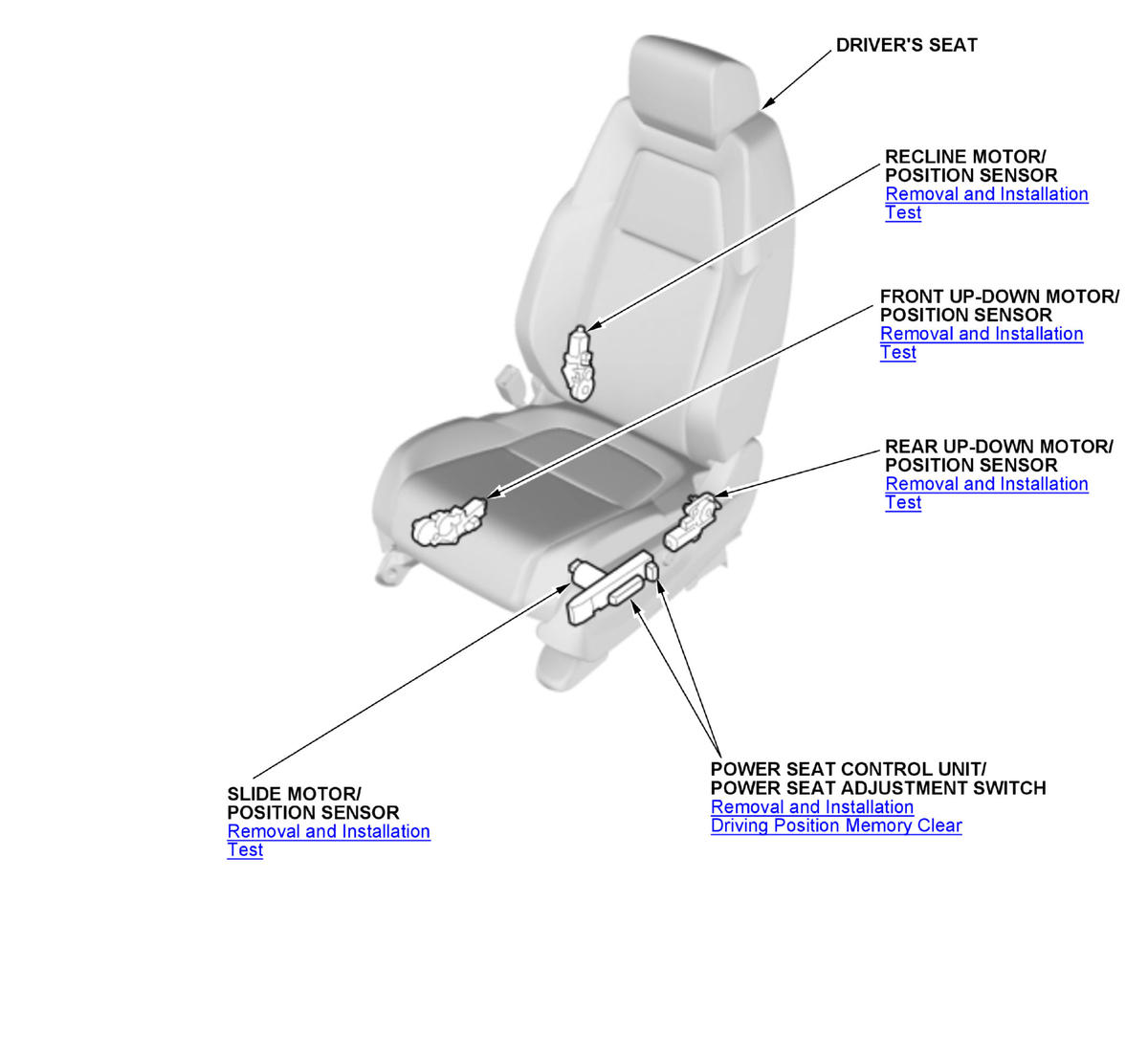

Driving Position Memory System (DPMS) Component Location Index
Driving Position Memory System (DPMS) Component Location Index
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
