Door Locks
›
Security System & Keyless Entry System - Testing & Troubleshooting
›
Circuit Diagram
›

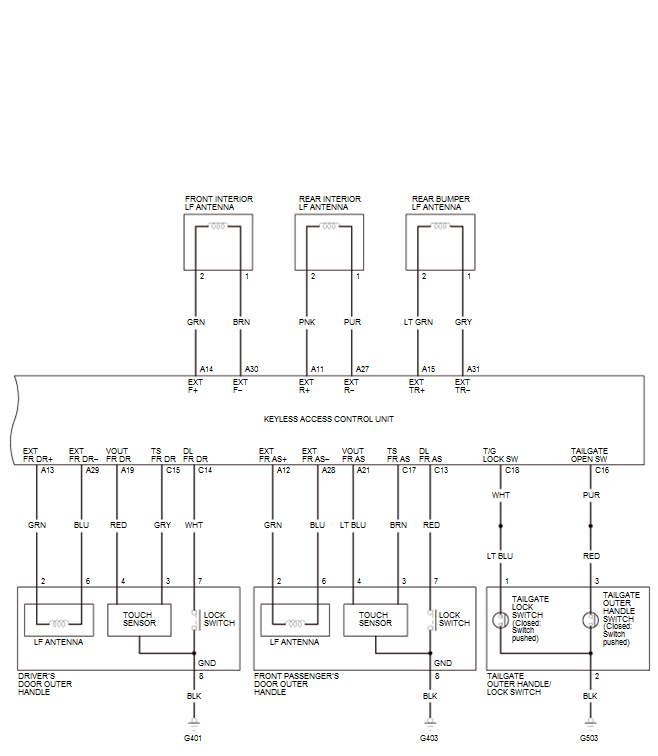

Keyless Access System Circuit Diagram

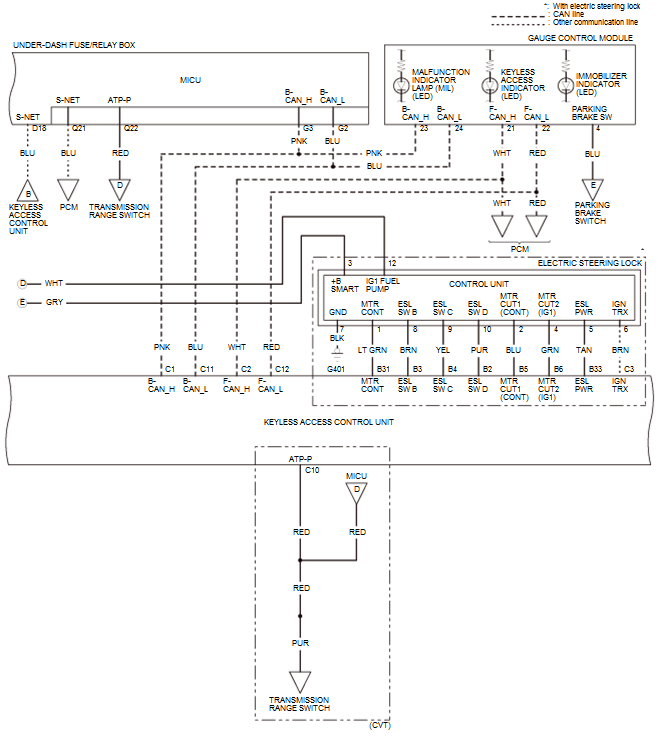

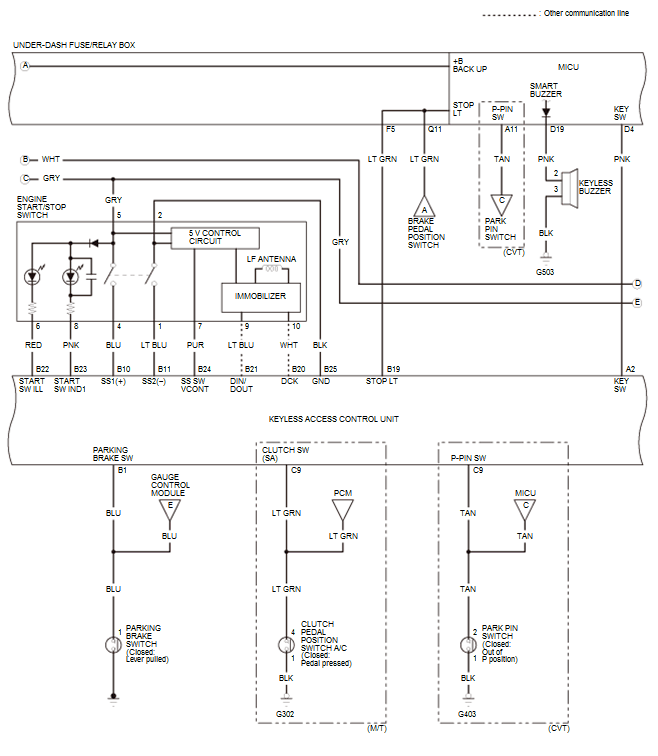

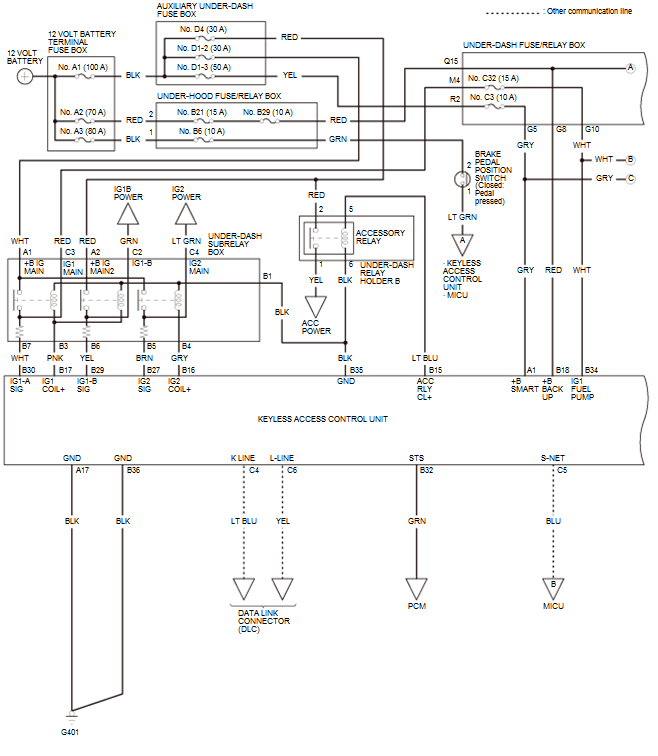

Keyless Access System Circuit Diagram
