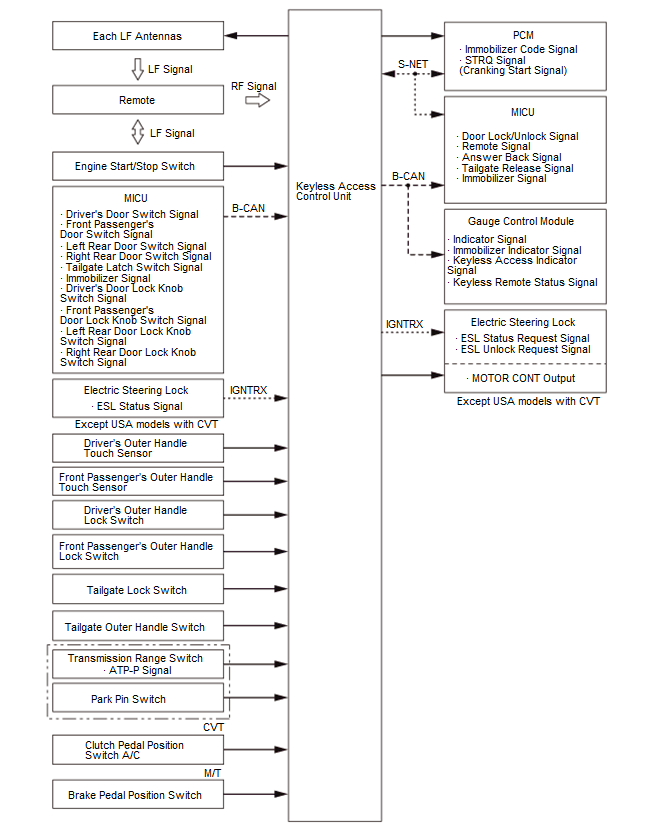

Home › Honda › 2020 › Fit EX › Repair and Diagnosis › Body & Frame › Door Locks › Security System & Keyless Entry System - Testing & Troubleshooting › Description › Keyless Access System Description › System Diagram
