Exploded View

NOTE:  Do not wipe off the special grease applied to the area of the starter marked with an asterisk (*) when you disassemble or assemble it.

1. Starter

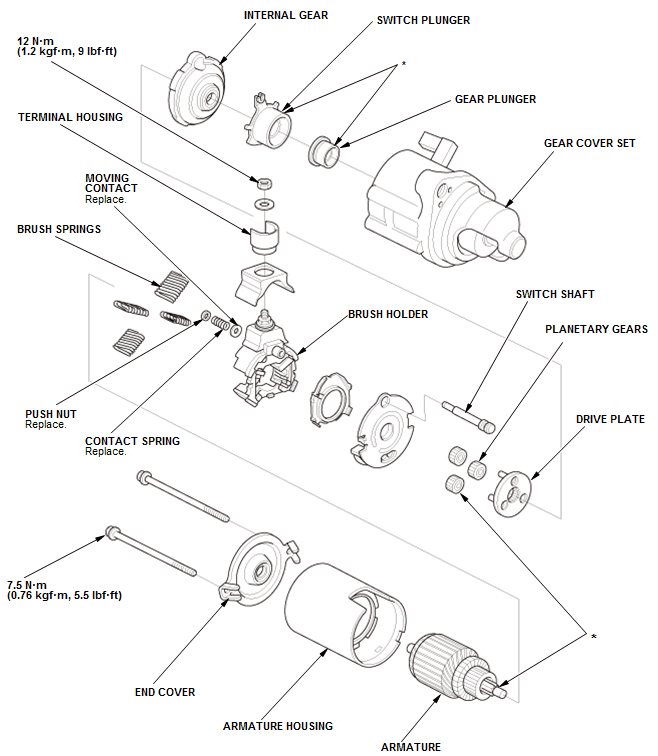

   Fig 1: Starter With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.
