Engine Oil Pump Removal and Installation: Installation

  1. Oil Pump - Install
      1. Install the oil pump (A) with a new O-ring (B)

    2. Install the oil strainer (C) with a new O-ring (D).

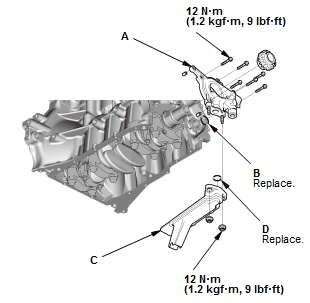

    Fig 1: Oil Pump & Oil Strainer With Torque Specifications
    GHH81272Courtesy of HONDA, U.S.A., INC.
  2. Oil Pan - Install
  3. Engine - Support
      1. Lift and support the engine with a jack and a wood block under the oil pan.
  4. Engine Support Hanger and Universal Lifting Eyelet - Remove
  5. Cam Chain - Install
  6. Engine Undercover - Install
  7. Wiper Motor - Install
  8. Under-Cowl Panel - Install
