Intake Manifold Removal and Installation
›
Exploded View
Exploded View
Intake Manifold

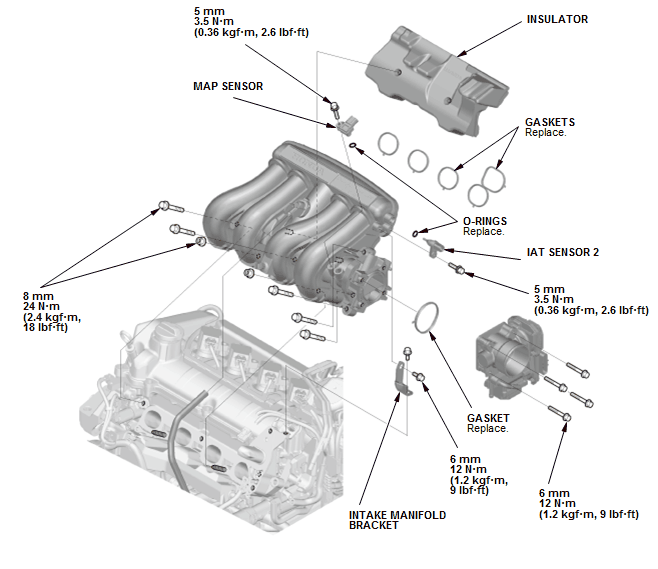

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
