Confirmation Procedure

Operating Condition

Courtesy of HONDA, U.S.A., INC.

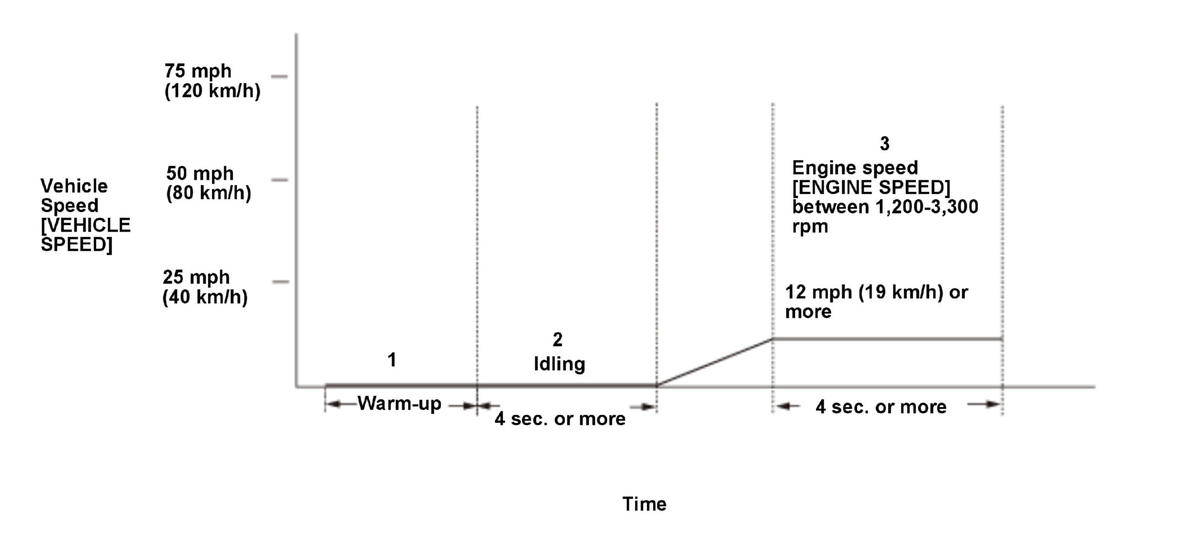

• Start the engine. Hold the engine speed [ENGINE SPEED] at 3, 000 rpm without load (in P or N) until the radiator fan comes on.
• Let the engine idle for at least 4 seconds.
• Drive the vehicle on a flat road in 4th gear at a steady speed of 12 mph (19 km/h) or more at a steady engine speed [ENGINE SPEED] between 1, 200 - 3, 300 rpm for at least 4 seconds.

• Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

With the HDS

Select the VTEC+VCM TEST in the Function Test Menu, then select SOLENOID A of the SOL.V.ACTIVATION with the HDS.
