Engine Block Assembly Component Location Index (1.5 L Engine)

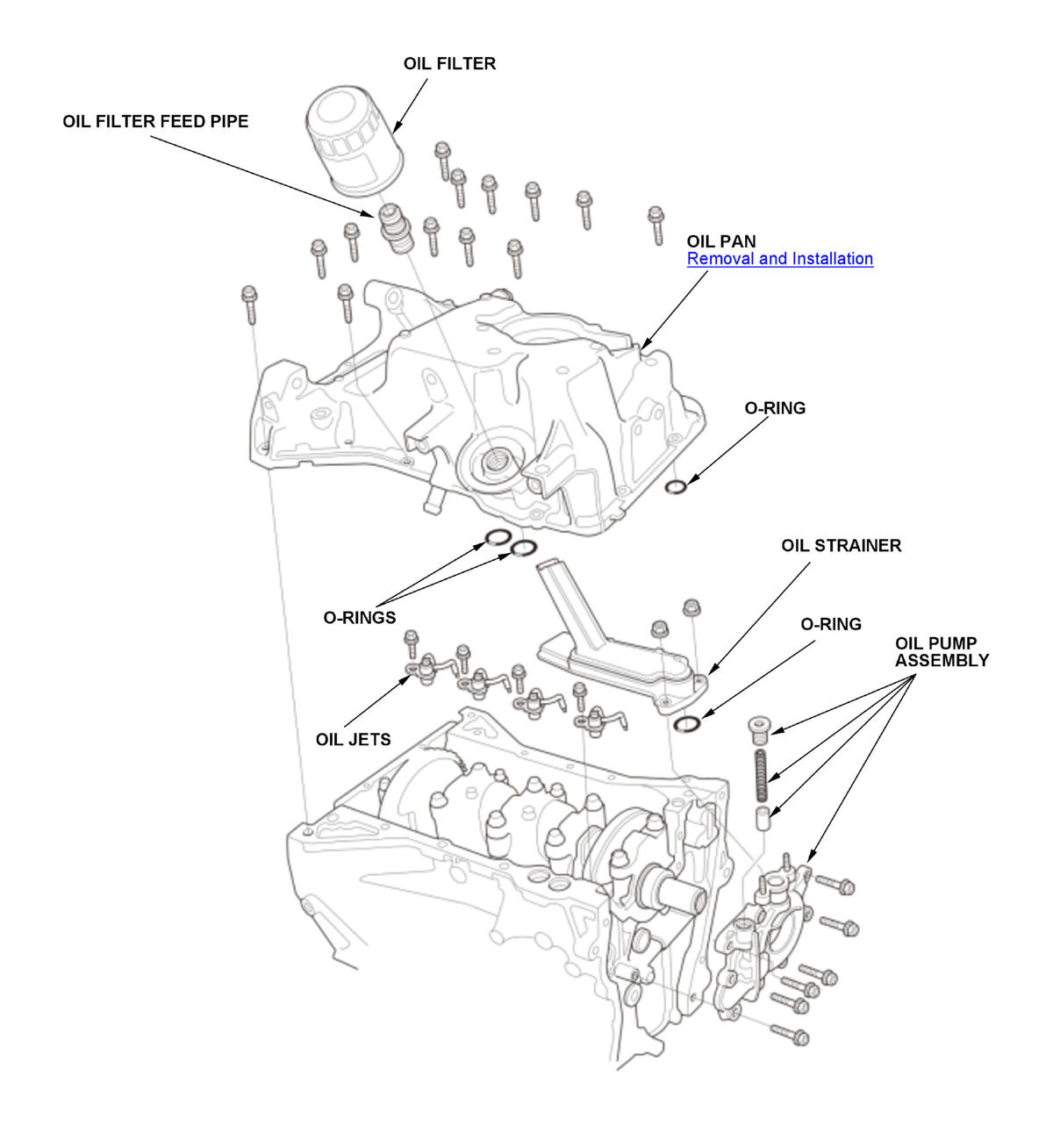

GHH427024

Courtesy of HONDA, U.S.A., INC.

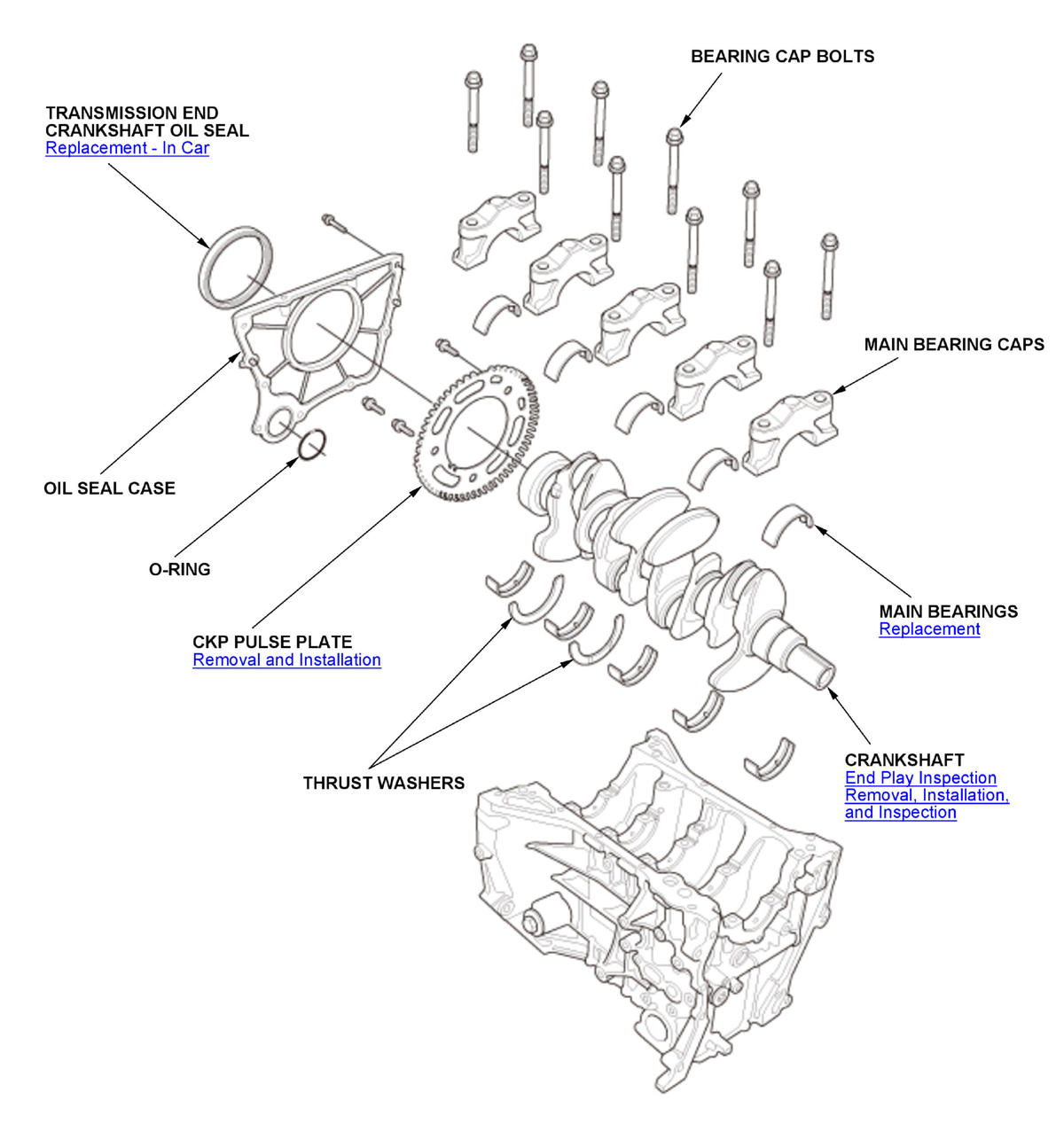

GHH427025

Courtesy of HONDA, U.S.A., INC.

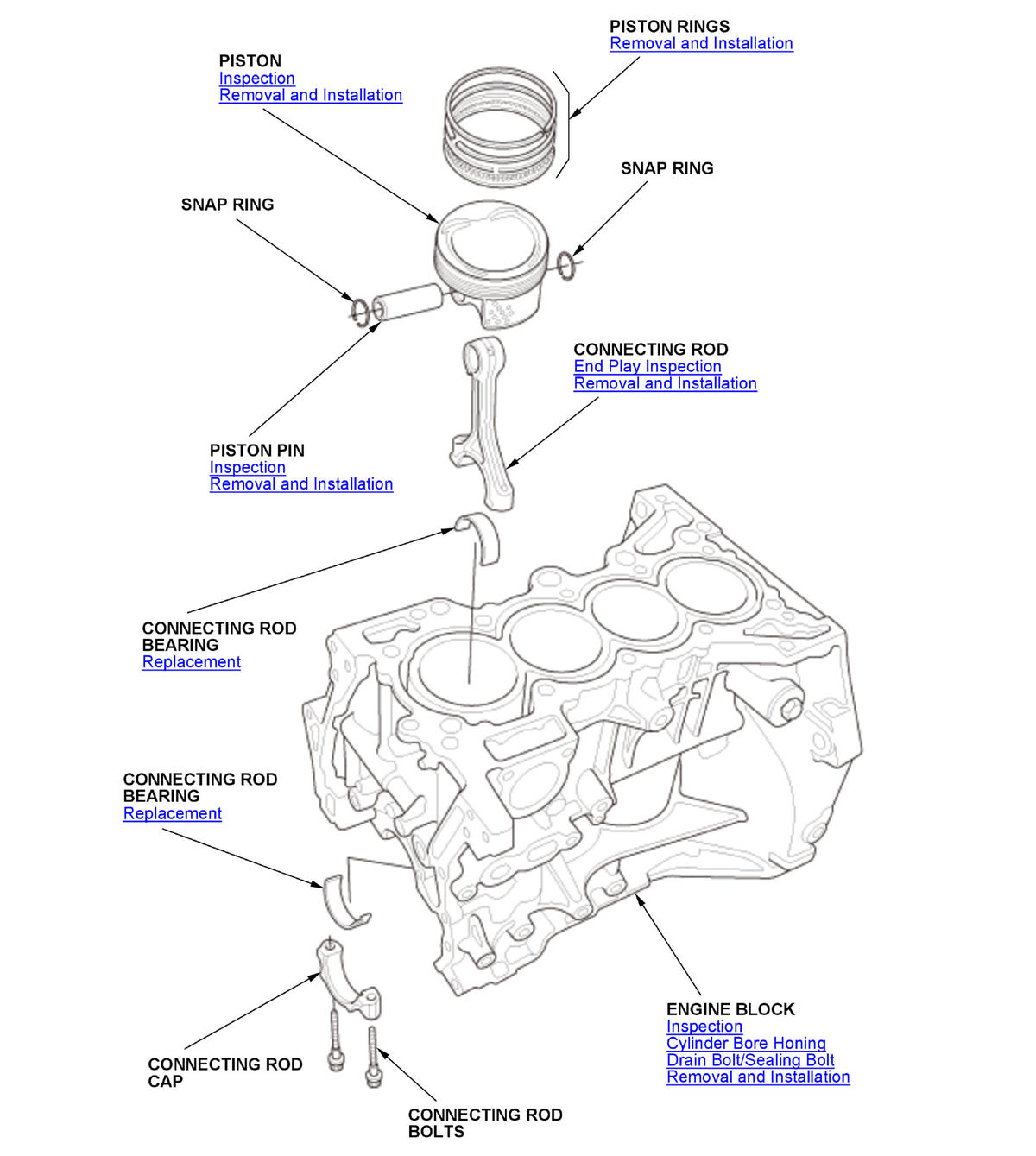

GHH427026

Courtesy of HONDA, U.S.A., INC.
