Engine Block Assembly Component Location Index

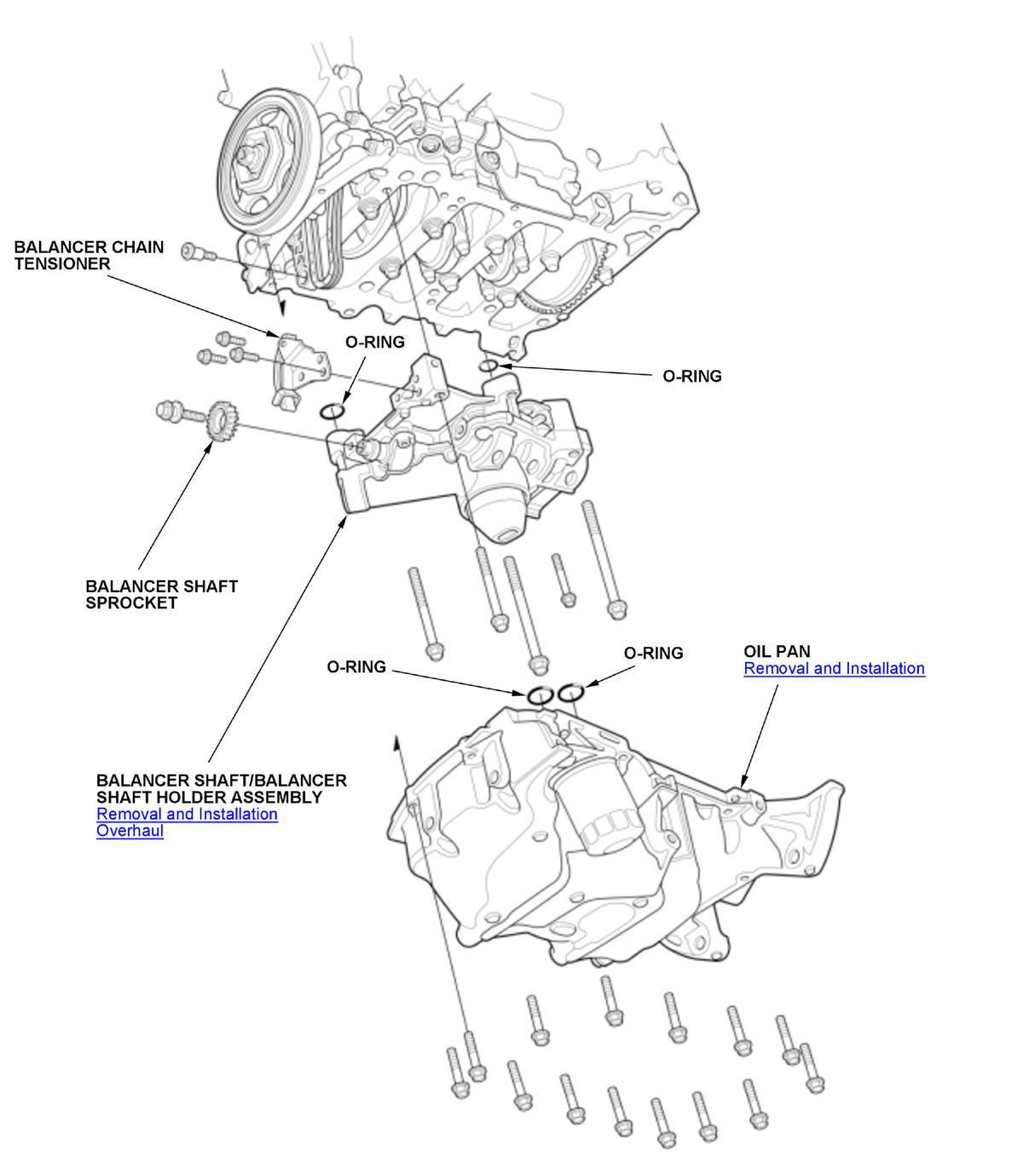

GHH378332

Courtesy of HONDA, U.S.A., INC.

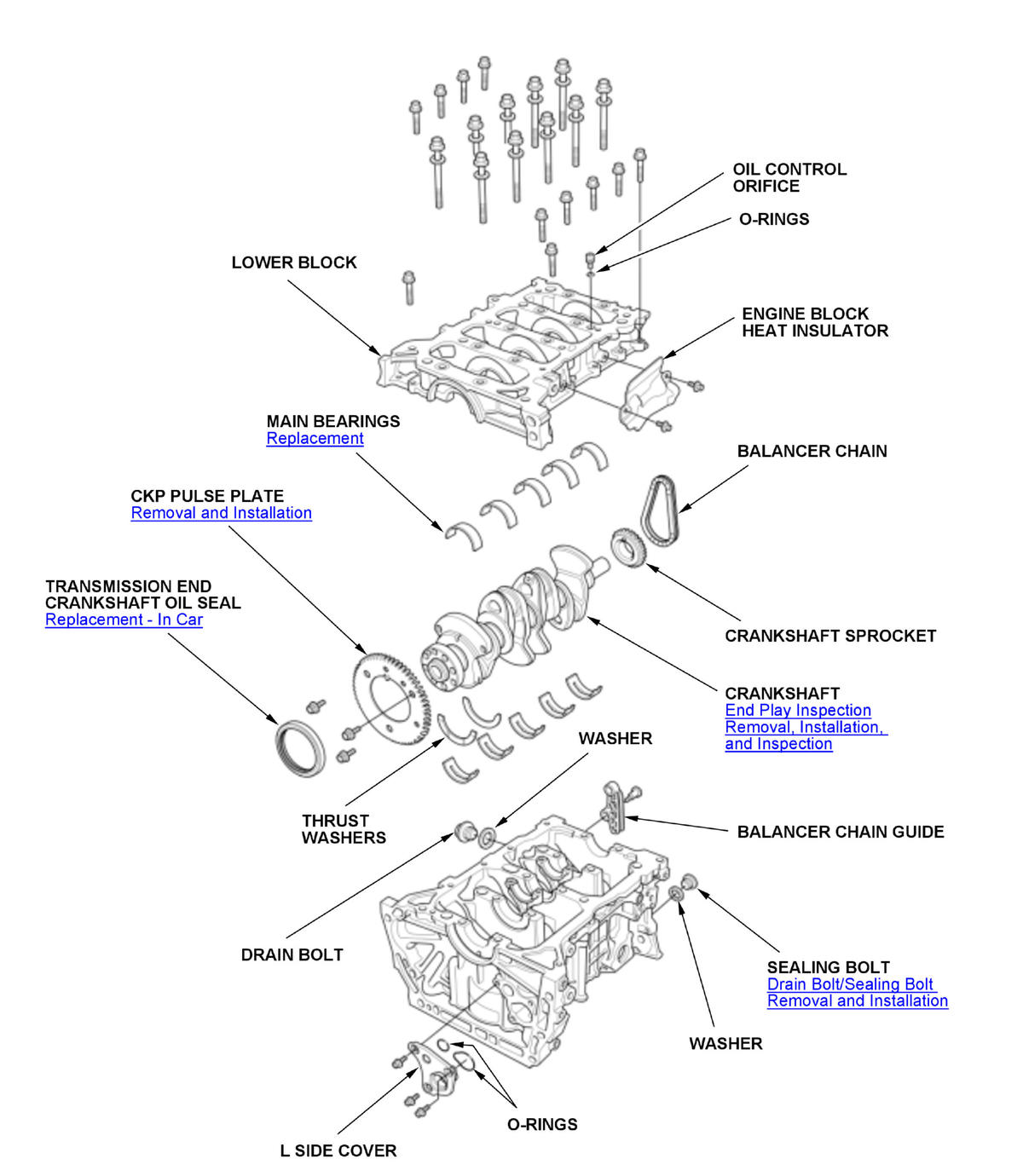

GHH378333

Courtesy of HONDA, U.S.A., INC.

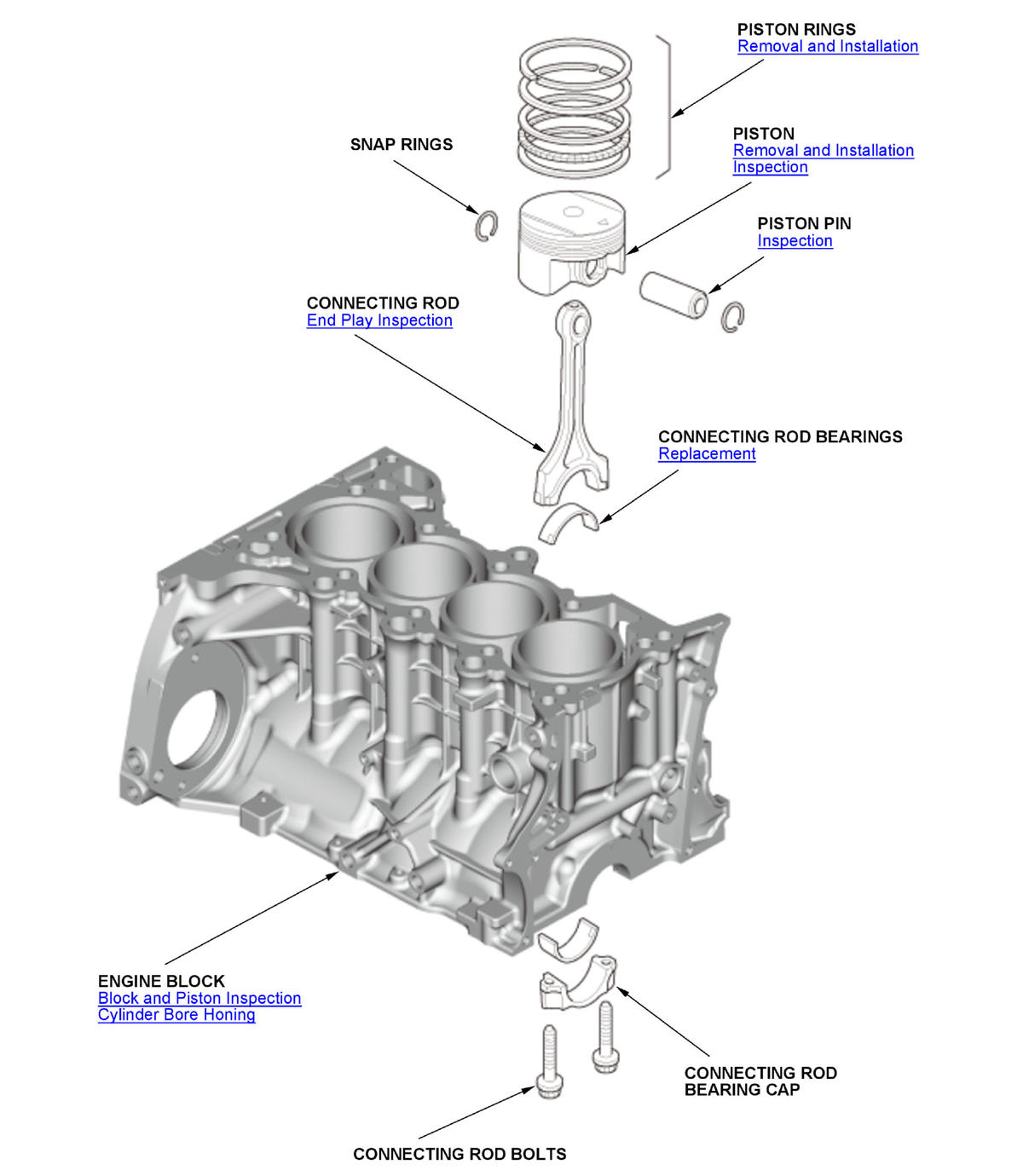

GHH378334

Courtesy of HONDA, U.S.A., INC.
