DTC B1042

DTC B1042  : Front Wiper Security Line Error

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Body Control Module)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Check for DTCs with the HDS.

   DTC Description	DTC
   B1042 Front Wiper Security Line Error

   Is DTC B1042 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Shorted wire check (BACK UP(WIPER) line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Body control module connector B (36P) Windshield wiper control unit/motor 6P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector B (36P): disconnected Windshield wiper control unit/motor 6P connector: disconnected

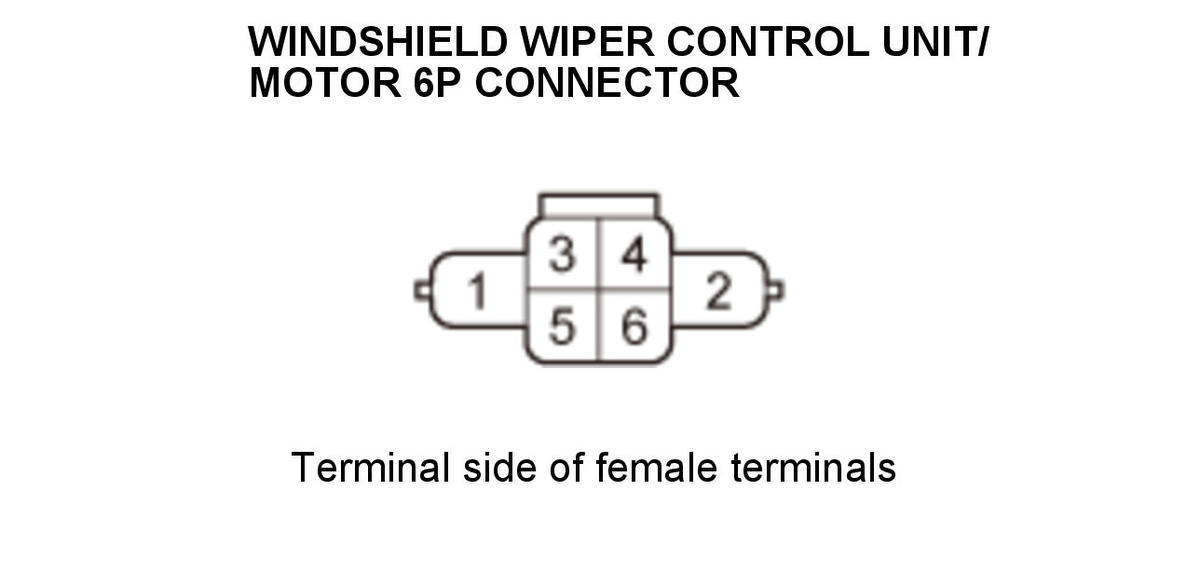

   Test point 1	Windshield wiper control unit/motor 6P connector No. 3
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the BACK UP(WIPER) wire between the body control module and the windshield wiper control unit/motor.

   NO

   The BACK UP(WIPER) wire is not shorted. Go to step 3.

3. Open wire check (BACK UP(WIPER) line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector B (36P): disconnected Windshield wiper control unit/motor 6P connector: disconnected
   Test point 1	Body control module connector B (36P) No. 10
   Test point 2	Windshield wiper control unit/motor 6P connector No. 3

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The BACK UP(WIPER) wire is OK. Replace the windshield wiper control unit/motor . If the DTC is still present, replace the body control module .

   NO

   An open or poor connection in the BACK UP(WIPER) wire between the body control module and the windshield wiper control unit/motor.
