Fuse/Relay Box Connector Locations

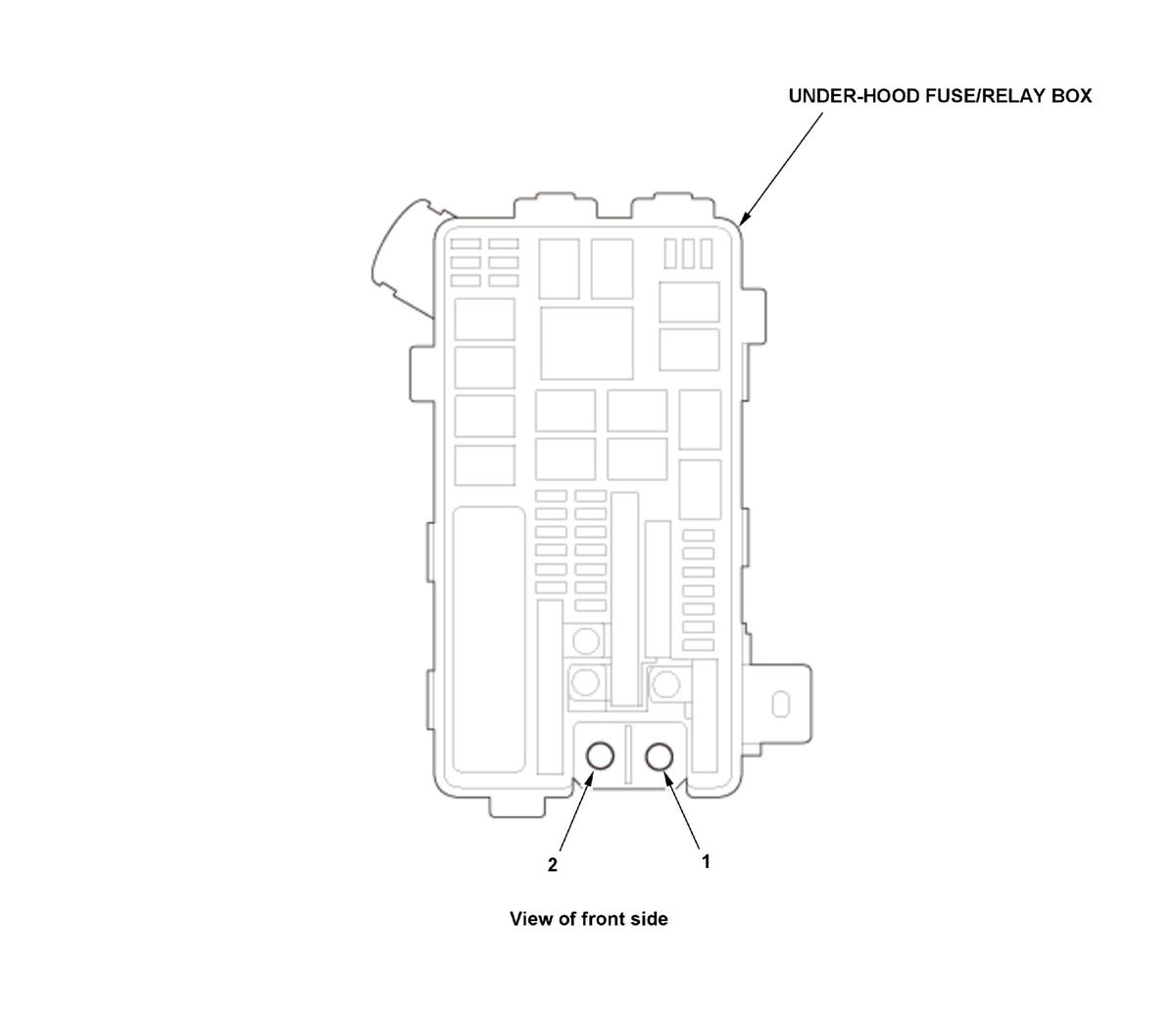

Under-Hood Fuse/Relay Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| T2 | 2 | --- | Starter cable | |
| T3 | 1 | --- | Engine wire harness |

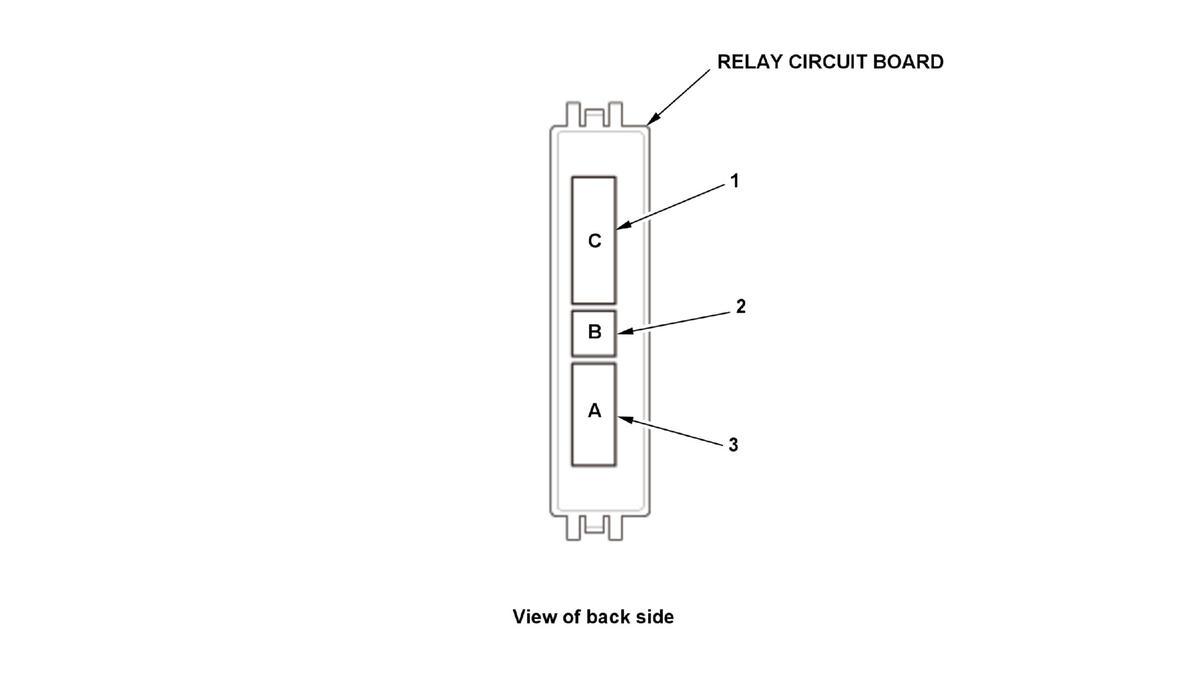

Under-Hood Fuse/Relay Box (Relay Circuit Board Part)
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| Relay circuit board connector A | 3 | 8 | Engine compartment wire harness | |
| Relay circuit board connector B | 2 | 6 | Engine compartment wire harness | |
| Relay circuit board connector C | 1 | 18 | Engine compartment wire harness |

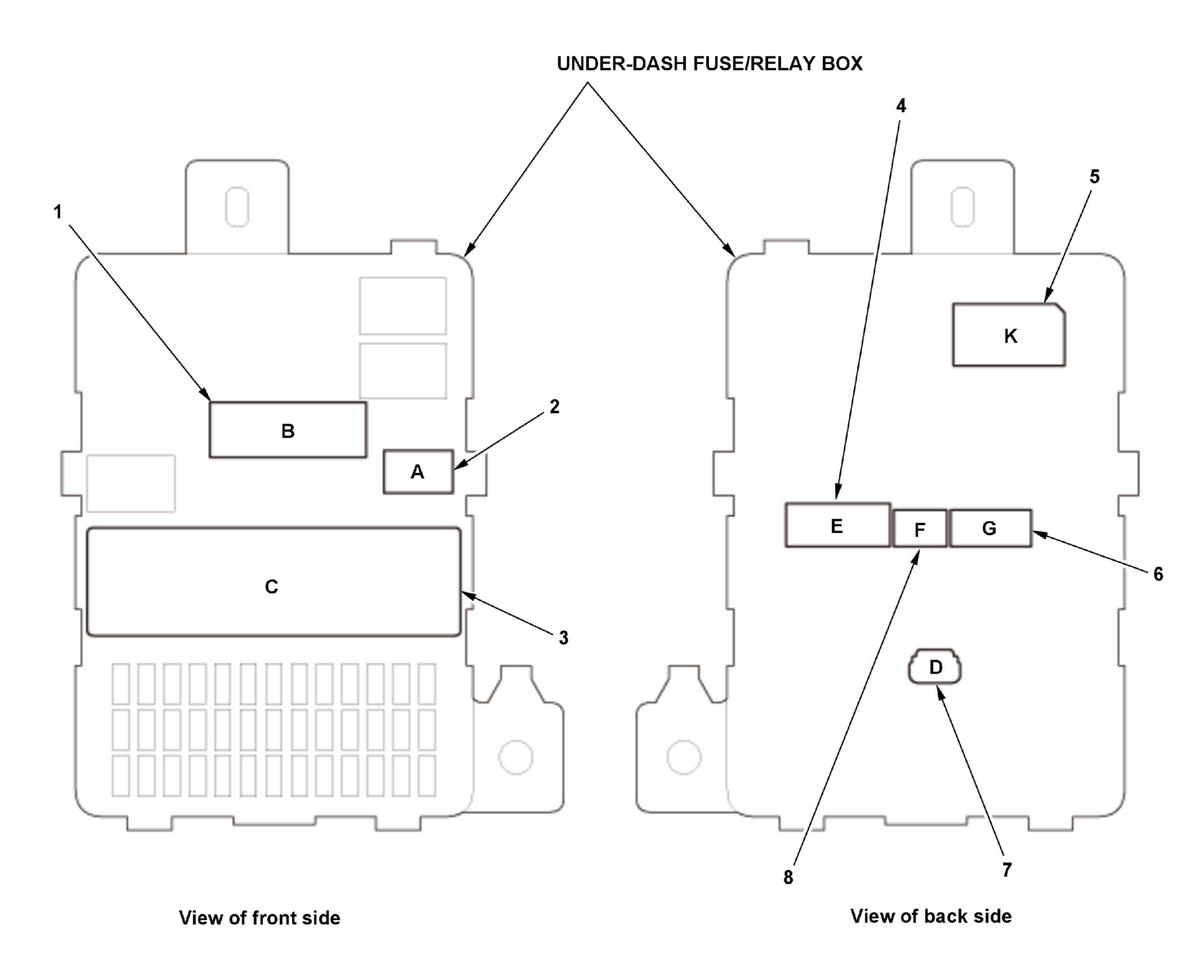

Under-Dash Fuse/Relay Box
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A (optional connector) | 2 | 4 | Not used | |
| B | 1 | 22 | Floor wire harness | |
| C | 3 | 27 | Engine compartment wire harness | |
| D | 7 | 4 | Dashboard wire harness | |
| E | 4 | 18 | Dashboard wire harness | |
| F | 8 | 12 | Dashboard wire harness | |
| G | 6 | 20 | Dashboard wire harness | |
| K | 5 | 5 | Dashboard wire harness | Without keyless access system |
