Intake Manifold Removal and Installation (1.5L Engine)
›
Exploded View
Exploded View
Intake Manifold

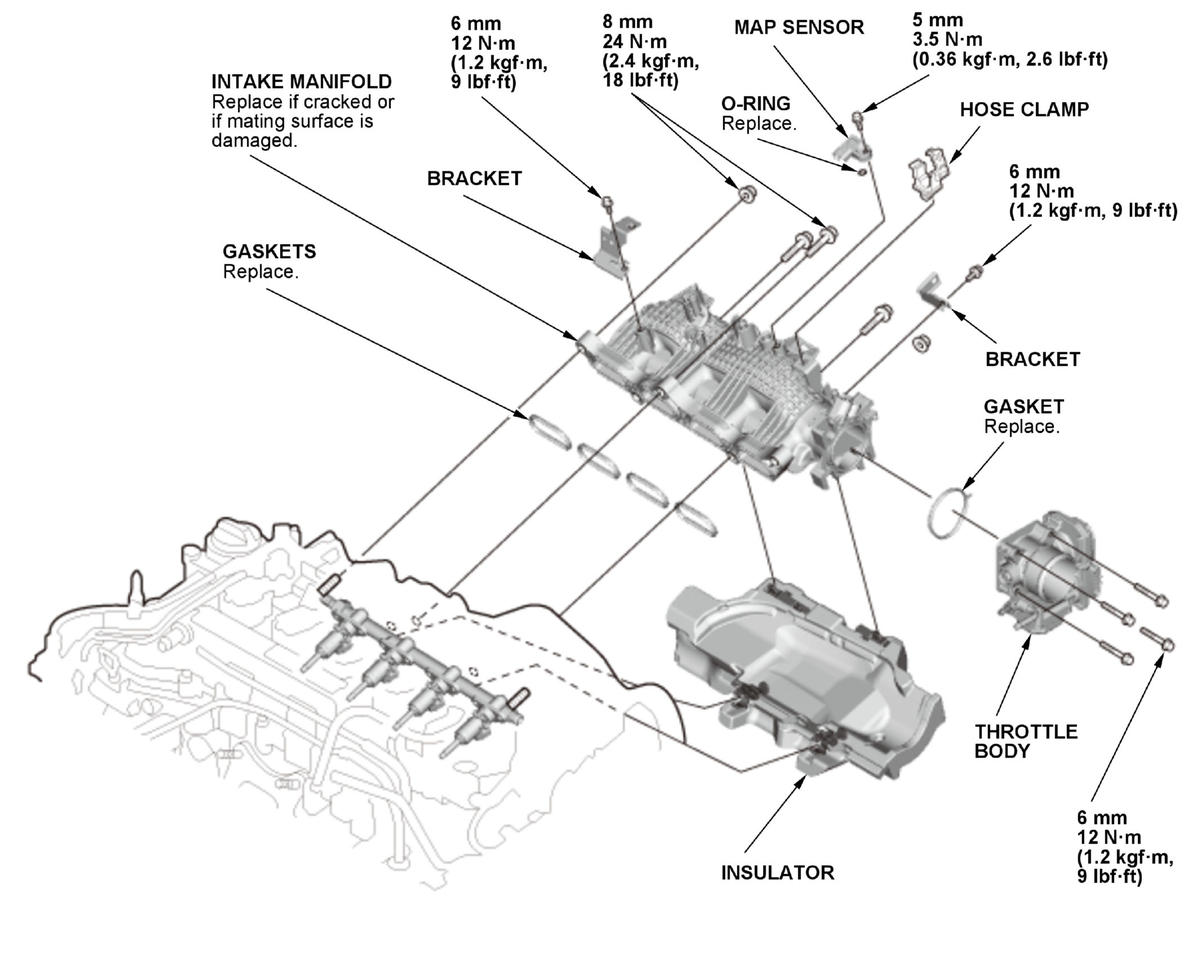

Fig 1: Exploded View Of Intake Manifold Components With Torque Specifications (1.5L Engine)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
