DTC P2650

DTC P2650  : Rocker Arm Oil Control Solenoid Circuit Malfunction

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   Clear DTC

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Start the engine.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P2650 Rocker Arm Oil Control Solenoid Circuit Malfunction

   Is DTC P2650 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the rocker arm oil control solenoid and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. Rocker arm oil control solenoid internal resistance check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Rocker arm oil control solenoid 2P connector

   -3. At the rocker arm oil control solenoid side, measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil control solenoid 2P connector: disconnected

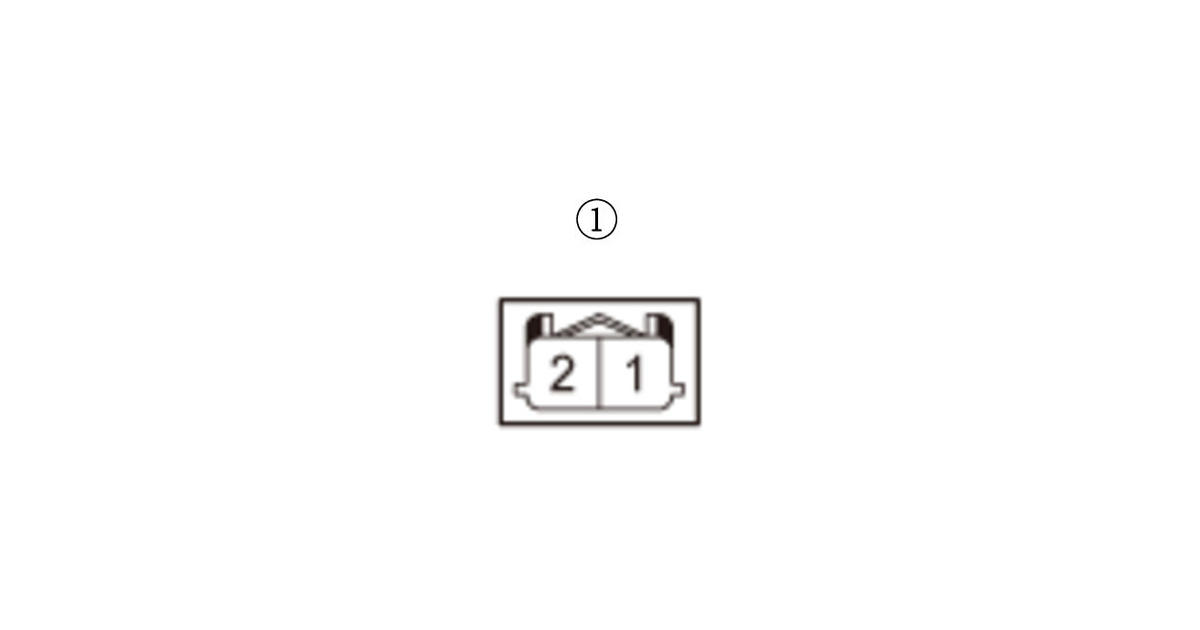

   Test point 1	Rocker arm oil control solenoid 2P connector (male terminals) No. 1 (solenoid side):
   Test point 2	Rocker arm oil control solenoid 2P connector (male terminals) No. 2 (solenoid side):

   Courtesy of HONDA, U.S.A., INC.

   Is there 14.6 - 16.2 Ω at room temperature?

   YES

   Go to step 3.

   NO

   Replace the rocker arm oil control valve .

3. Open wire check (PG line)

   -1. Check for continuity between test point 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil control solenoid 2P connector: disconnected
   Test point 1	Rocker arm oil control solenoid 2P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 4.

   NO

   Repair an open in the PG wire between the rocker arm oil control solenoid and G101.

4. Open wire check (VTSEX line)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Disconnect the following connector.

   PCM connector No. 1 (96P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil control solenoid 2P connector: disconnected
   	PCM connector No. 1 (96P): disconnected
   Test point 1	Rocker arm oil control solenoid 2P connector (female terminals) No. 1:
   Test point 2	PCM connector No. 1 (96P) No. 25

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The VTSEX wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P2650 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the VTSEX wire between PCM connector No. 1 terminal No. 25 and the rocker arm oil control solenoid.
