DTC P2651

DTC P2651  : Rocker Arm Oil Pressure Switch Performance/Stuck off

Special Tools Required

Pressure Gauge Adapter 07NAJ-P07010A

A/T Low Pressure Gauge w/Panel 07406-0070301

A/T Pressure Test Hose 07AAJ-PY4A100

A/T Pressure Adapter 07MAJ-PY40120

Oil Pressure Hose 07ZAJ-S5AA200

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC Description	Confirmed DTC	Pending DTC
P2651 Rocker Arm Oil Pressure Switch Performance/Stuck off

DTC (PGM-FI)

1. Oil level check

   -1. Check the engine oil level .

   Is the level OK?

   YES

   Go to step 2.

   NO

   Adjust the engine oil to the proper level .

2. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   Clear DTC

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Select the VTEC TEST in the INSPECTION MENU with the HDS.

   VTEC TEST

   Does the HDS indicate Normal?

   YES

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the rocker arm oil pressure switch and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

   NO

   The failure is duplicated. Go to step 3.

3. Determine possible failure area (VTMEX line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Rocker arm oil pressure switch 2P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Rocker arm oil pressure switch 2P connector: disconnected

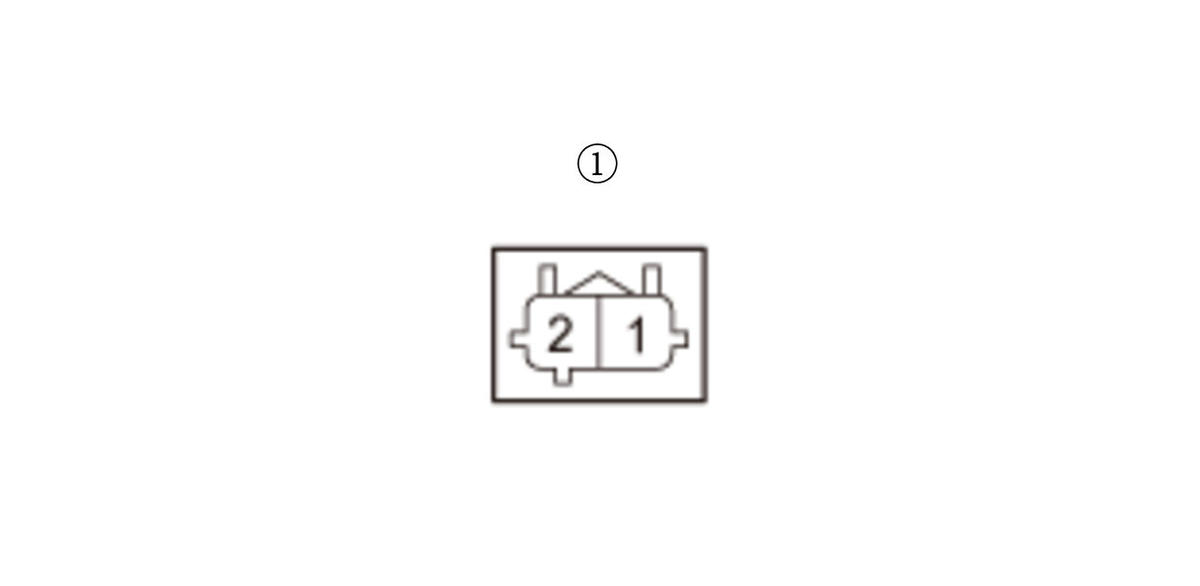

   Test point 1	Rocker arm oil pressure switch 2P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there any voltage?

   YES

   Go to step 4.

   NO

   Go to step 6.

4. Open wire check (PG line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil pressure switch 2P connector: disconnected
   Test point 1	Rocker arm oil pressure switch 2P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 5.

   NO

   Repair an open in the PG wire between the rocker arm oil pressure switch and G101.

5. VTEC system oil pressure check

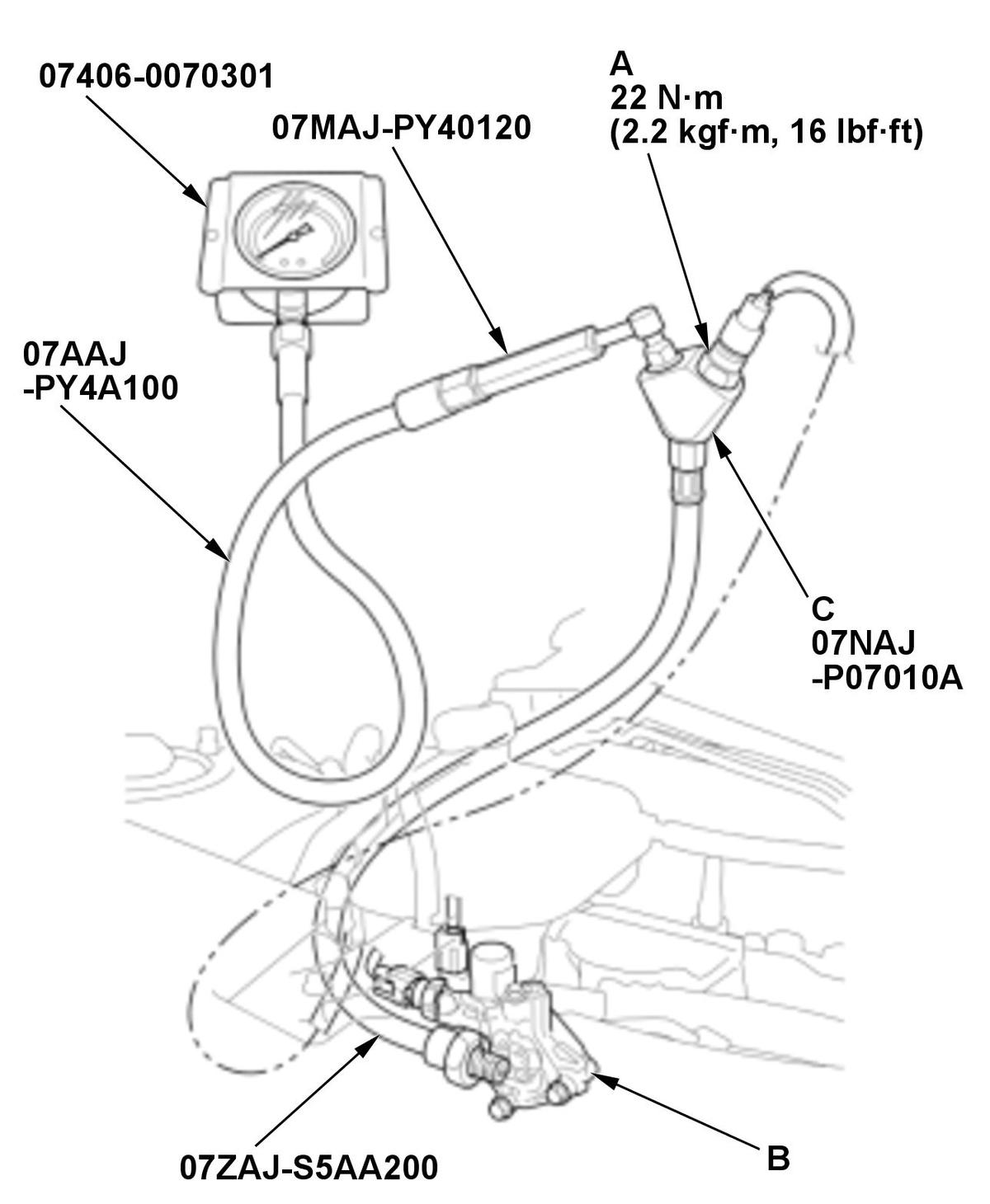

   -1. Remove the rocker arm oil pressure switch (A) from the rocker arm oil control valve (B), and attach the special tools as shown, then attach the rocker arm oil pressure switch that was removed to the oil pressure gauge adapter (C).

   Fig 1: VTEC System Oil Pressure Check Components With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   -2. Reconnect the following connector.

   Rocker arm oil pressure switch 2P connector

   -3. Start the engine.

   -4. Select the VTEC TEST in the INSPECTION MENU with the HDS.

   VTEC TEST

   -5. Check the oil pressure.

   Is the oil pressure 45 kPa (0.46 kgf/cm² , 6.5 psi) or more?

   YES

   Replace the rocker arm oil control valve (rocker arm oil control solenoid) .

   NO

   Inspect the VTEC system oil passage. If it is OK, replace the rocker arm oil control valve .

6. Open wire check (VTMEX line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector No. 1 (96P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil pressure switch 2P connector: disconnected
   	PCM connector No. 1 (96P): disconnected
   Test point 1	Rocker arm oil pressure switch 2P connector (female terminals) No. 2:

   Test point 2

   PCM connector No. 1 (96P) No. 48

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 7.

   NO

   Repair an open in the VTMEX wire between PCM connector No. 1 terminal No. 48 and the rocker arm oil pressure switch.

7. Rocker arm oil pressure switch internal circuit check

   -1. At the rocker arm oil pressure switch side, check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil pressure switch 2P connector: disconnected
   	PCM connector No. 1 (96P): disconnected

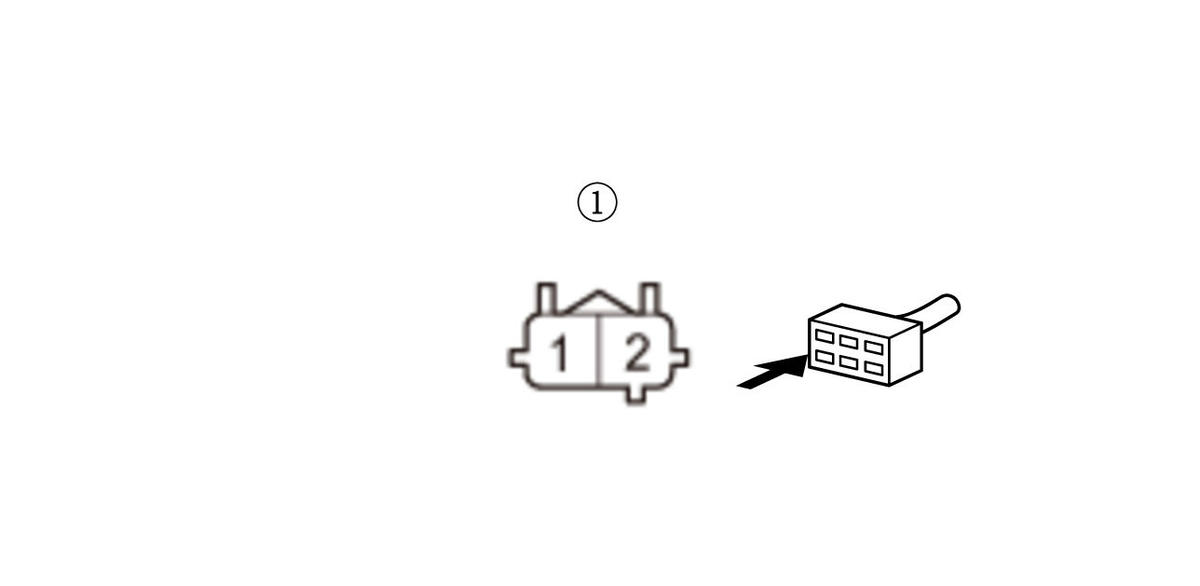

   Test point 1	Rocker arm oil pressure switch 2P connector (male terminals) No. 1 (switch side):
   Test point 2	Rocker arm oil pressure switch 2P connector (male terminals) No. 2 (switch side):

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the rocker arm oil pressure switch .

   NO

   Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P2651 goes away and the PCM was substituted, replace the original PCM .
