Security System / Keyless Entry System - Testing & Troubleshooting - (Plug-In)
›

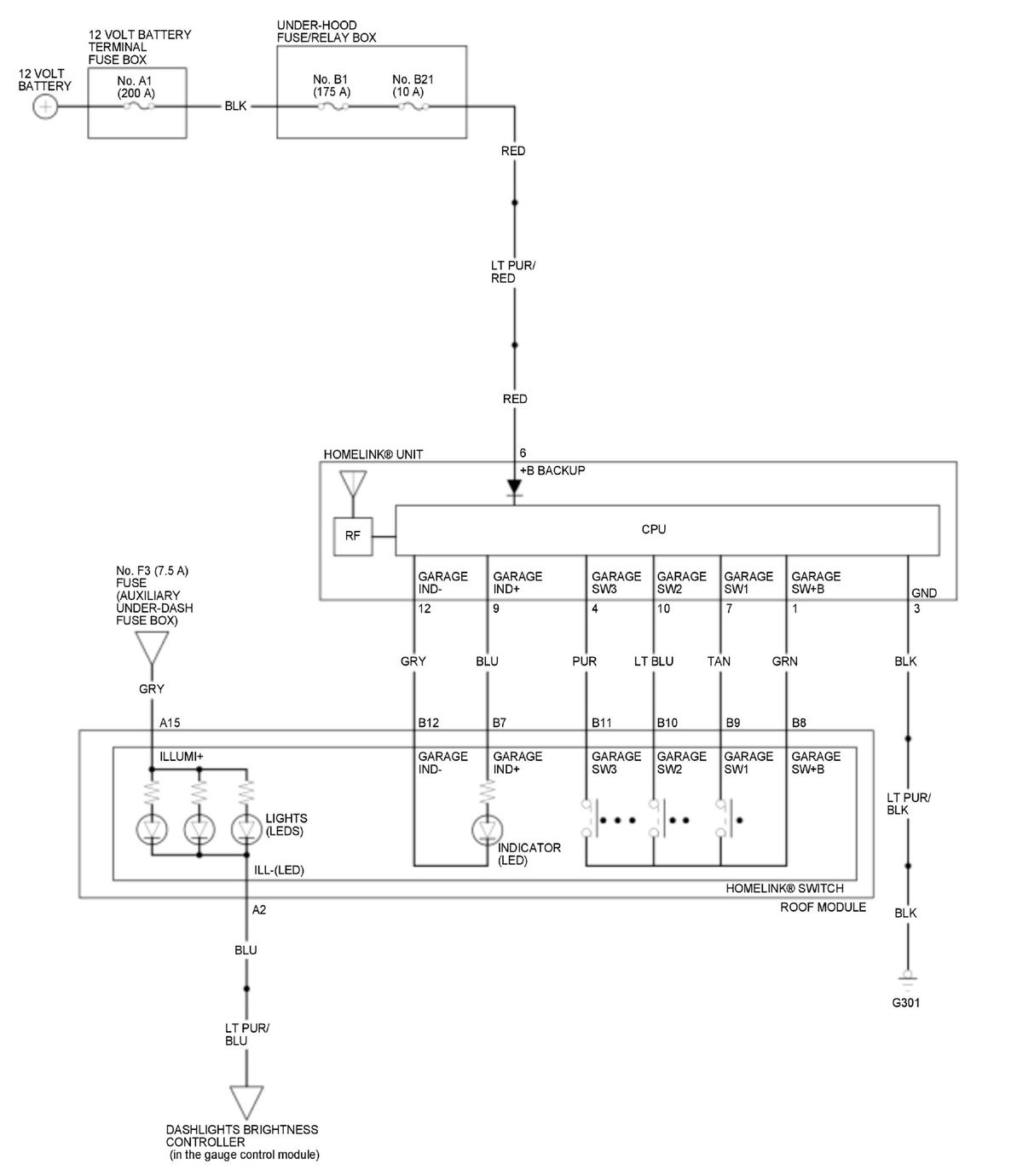

Circuit Diagram
›
HomeLink Remote Control System
HomeLink Remote Control System
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
