Security System / Keyless Entry System - Testing & Troubleshooting - (Plug-In)
›

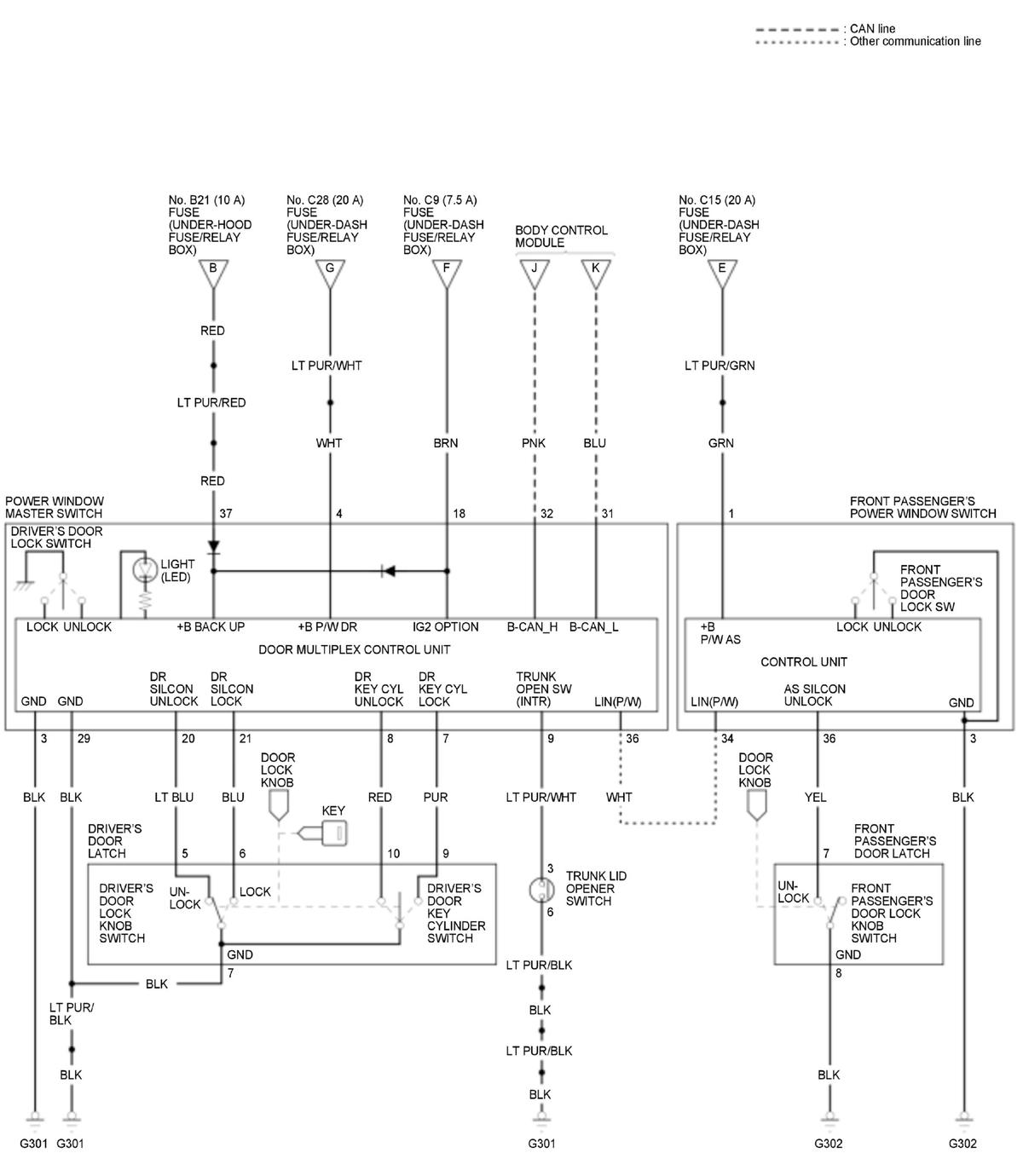

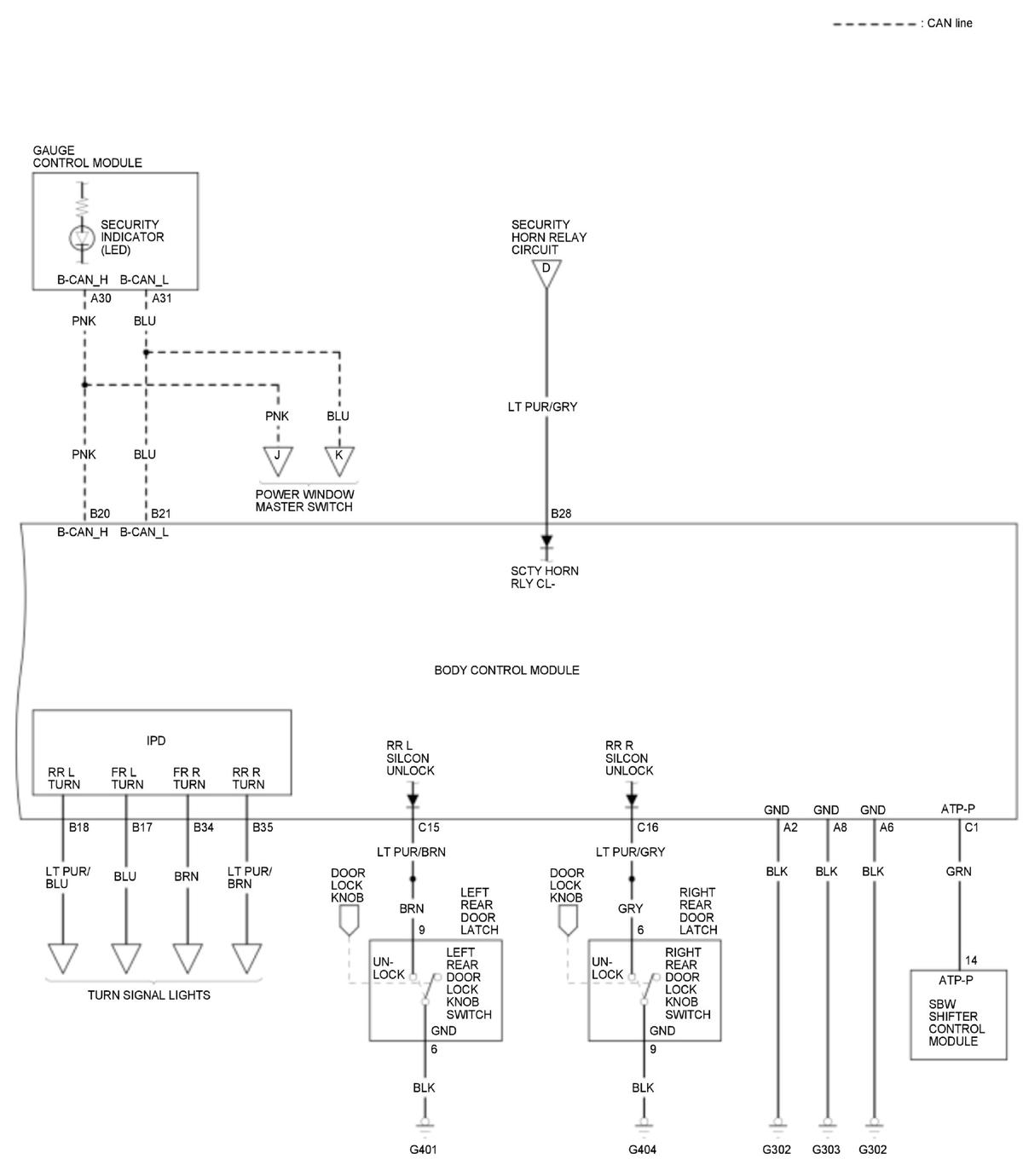

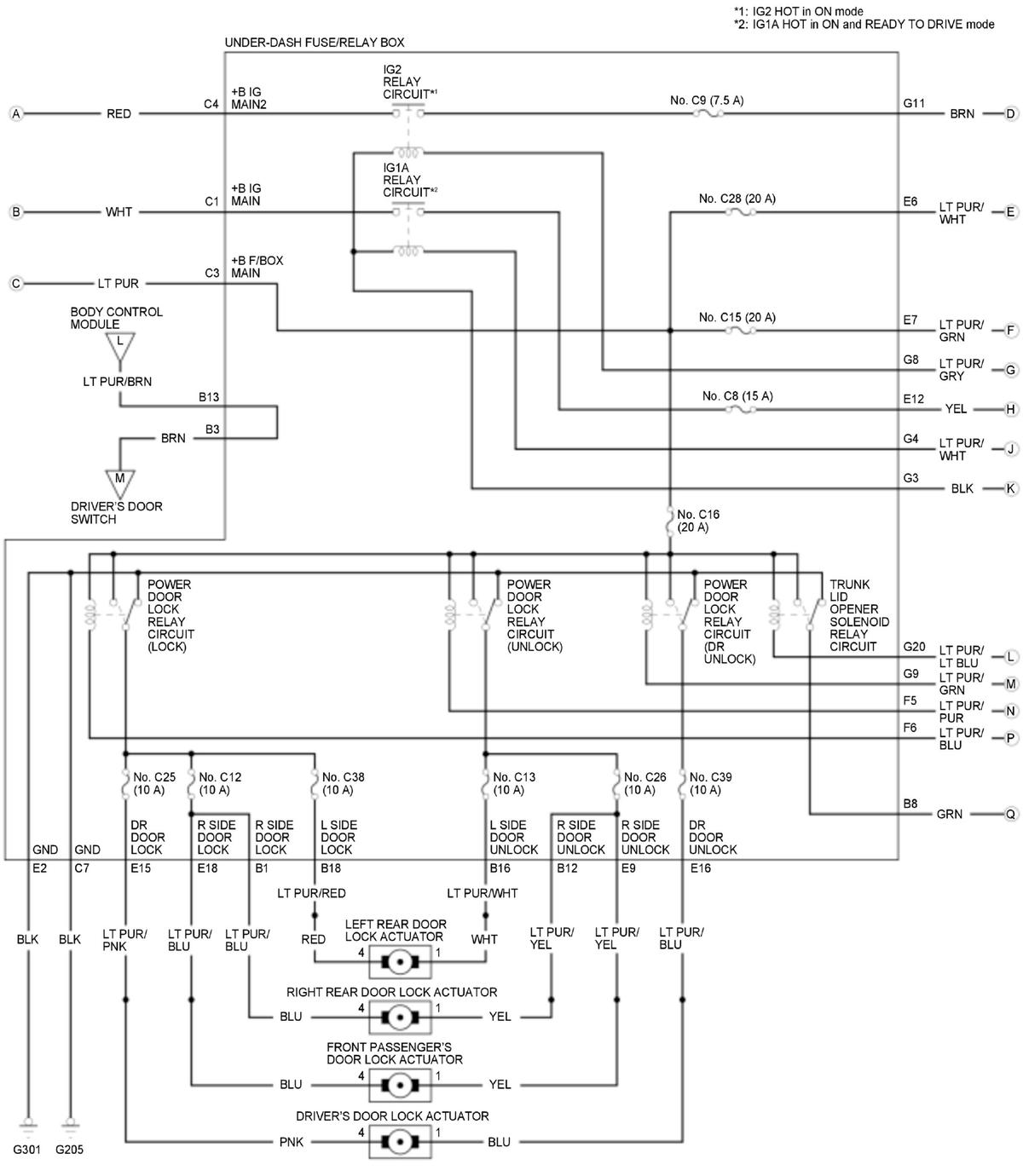

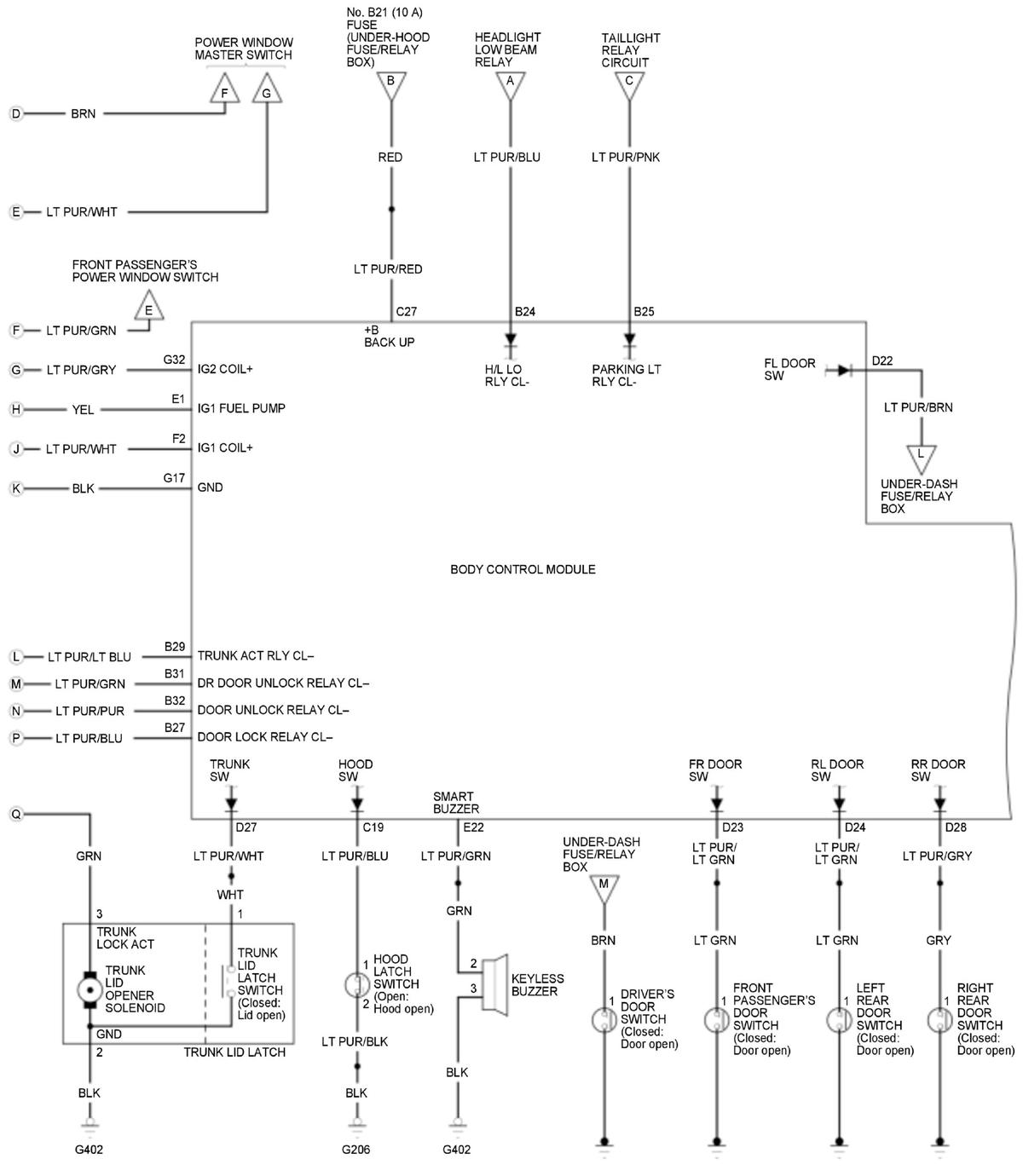

Circuit Diagram
›
Keyless/Power Door Locks/Security System
Keyless/Power Door Locks/Security System
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
