Power Windows
Basic Control/Function
Manual Up/Down Function
- The 1-step operation of the power window switch moves the window up or down.
- This is available when the vehicle is in the ON mode or the vehicle OFF (LOCK) operation.
Auto Up/Down Function
- The 2-step operation of the power window switch moves the window up or down.
- This is available when the vehicle is in the ON mode or the vehicle OFF (LOCK) operation.

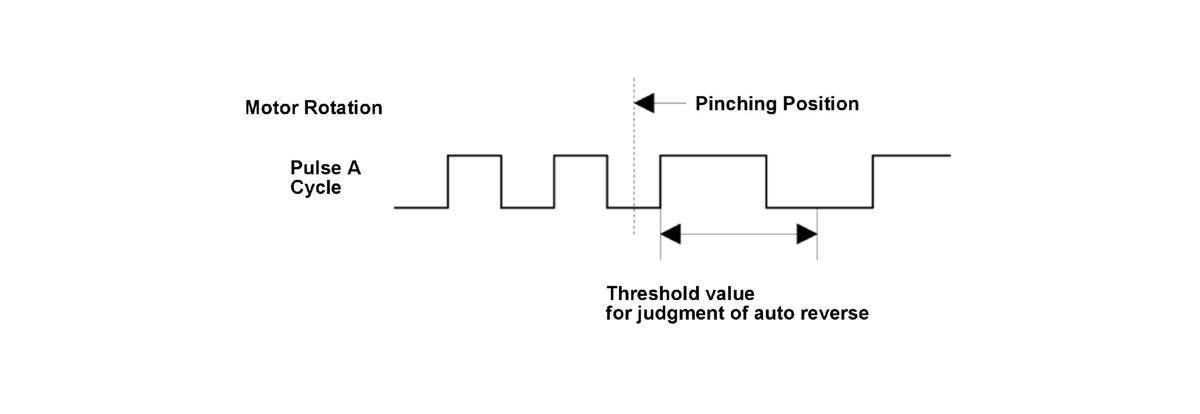

Auto Reverse Power Window Function
When some object is detected during the auto up operation, the window stops closing and reverses about 70 mm (2.76 in). If the window is less than halfway opened (about 220 mm (8.66 in)), it will reverse to half open position (about 220 mm (8.66 in)). In manual operation, this function is active only during the vehicle OFF operation. This function is activated based on the calculation of the rotation speed and load change of the motor's pulse A.

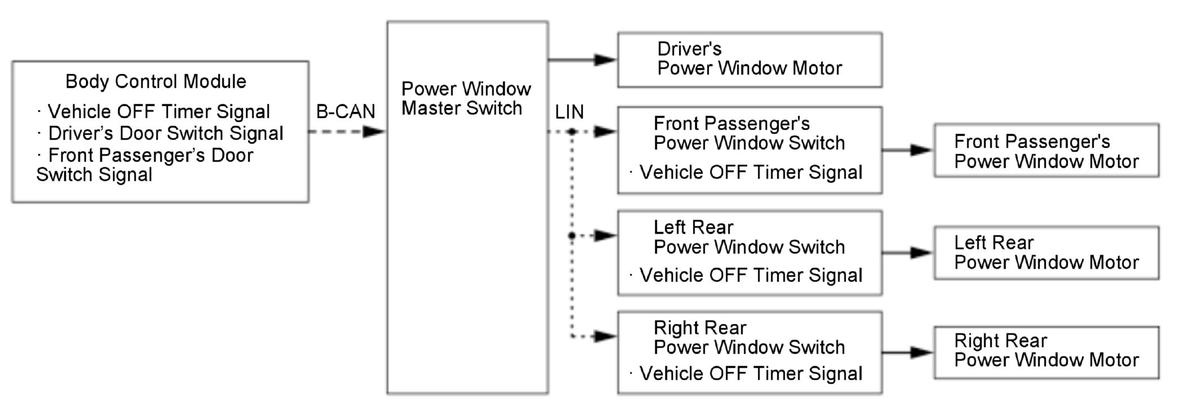

Vehicle OFF Operation
For a certain period of time after the vehicle is turned to the OFF (LOCK) mode, the window's open/close operation with the power window switches is available.
| Vehicle OFF Operation Start Condition | Vehicle ON mode → OFF mode | |
| Vehicle OFF Operation Cancel Condition | Timer | Vehicle ON → OFF mode and past 10 min. |
| Door |
|
|

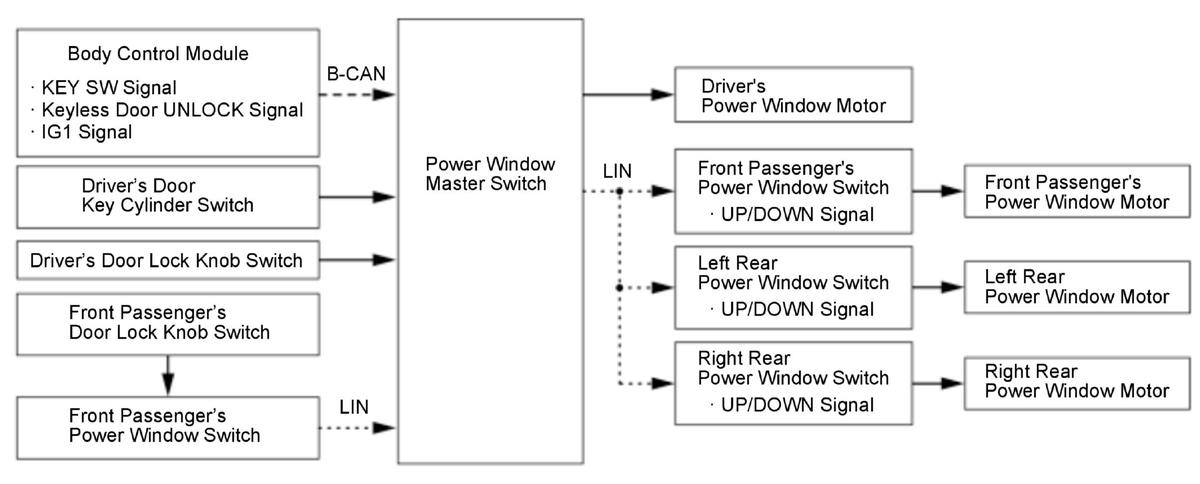

Keyless/Key Cylinder Operation
By turning the key a second time and holding it with the key inserted into the driver's door key cylinder, the windows close (or open) (turning the key clockwise to open, turning the key counterclockwise to close). The windows stop moving when the key is returned to the neutral position.
By pressing and holding the UNLOCK button of the remote a second time, the windows open. The windows stop moving when the UNLOCK button is released. The windows do not close with the LOCK button.
Failsafe Function
When a failure occurs in the inputs of the motor pulses and power window switches, the failsafe function stops the control of each function.
