Disassembly and Reassembly: Procedure

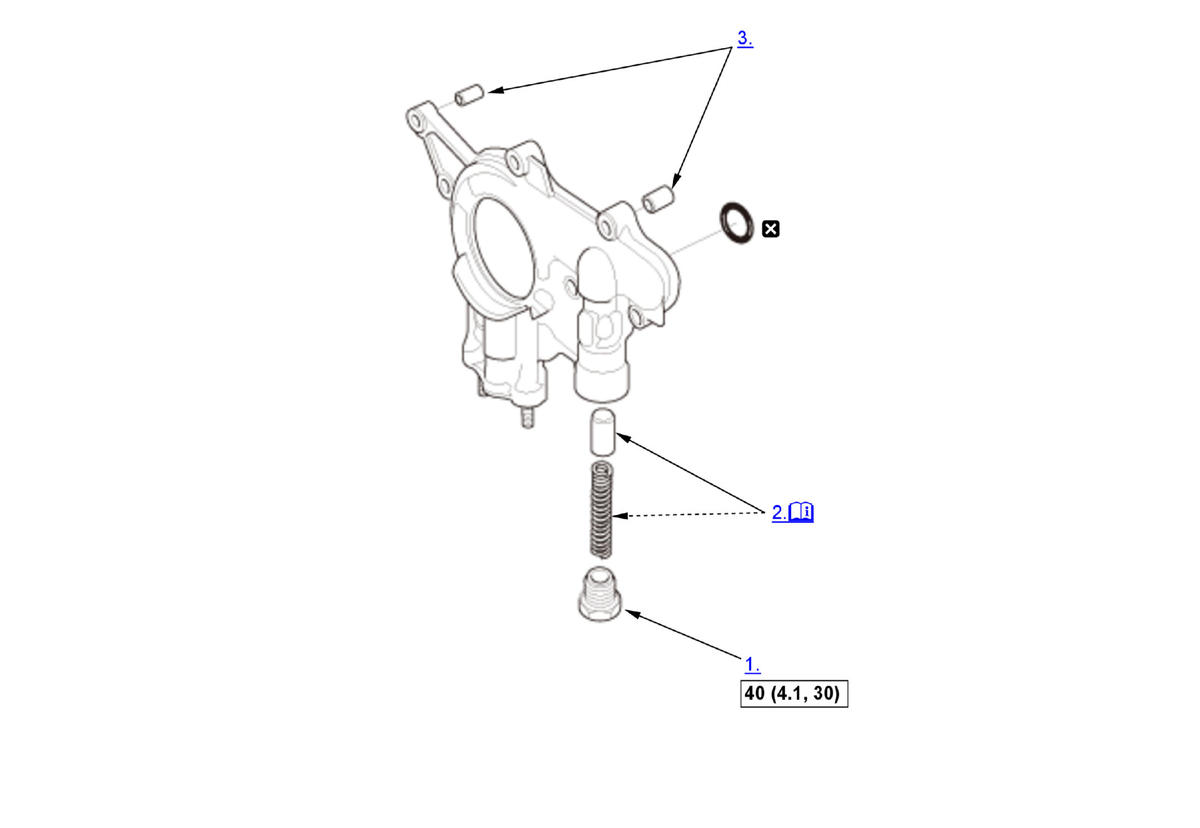

Fig 1: Engine Oil Pump With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

Sealing Bolt - Remove
Relief Valve - Remove
NOTE: Check the relief valve must slide freely in the housing bore. Replace if scored.
Dowel Pin - Remove
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
