Engine Control System / Engine Mechanical - Testing & Troubleshooting - (Plug- In)
›
Component Location Index
›
Engine Block Assembly Component Location Index

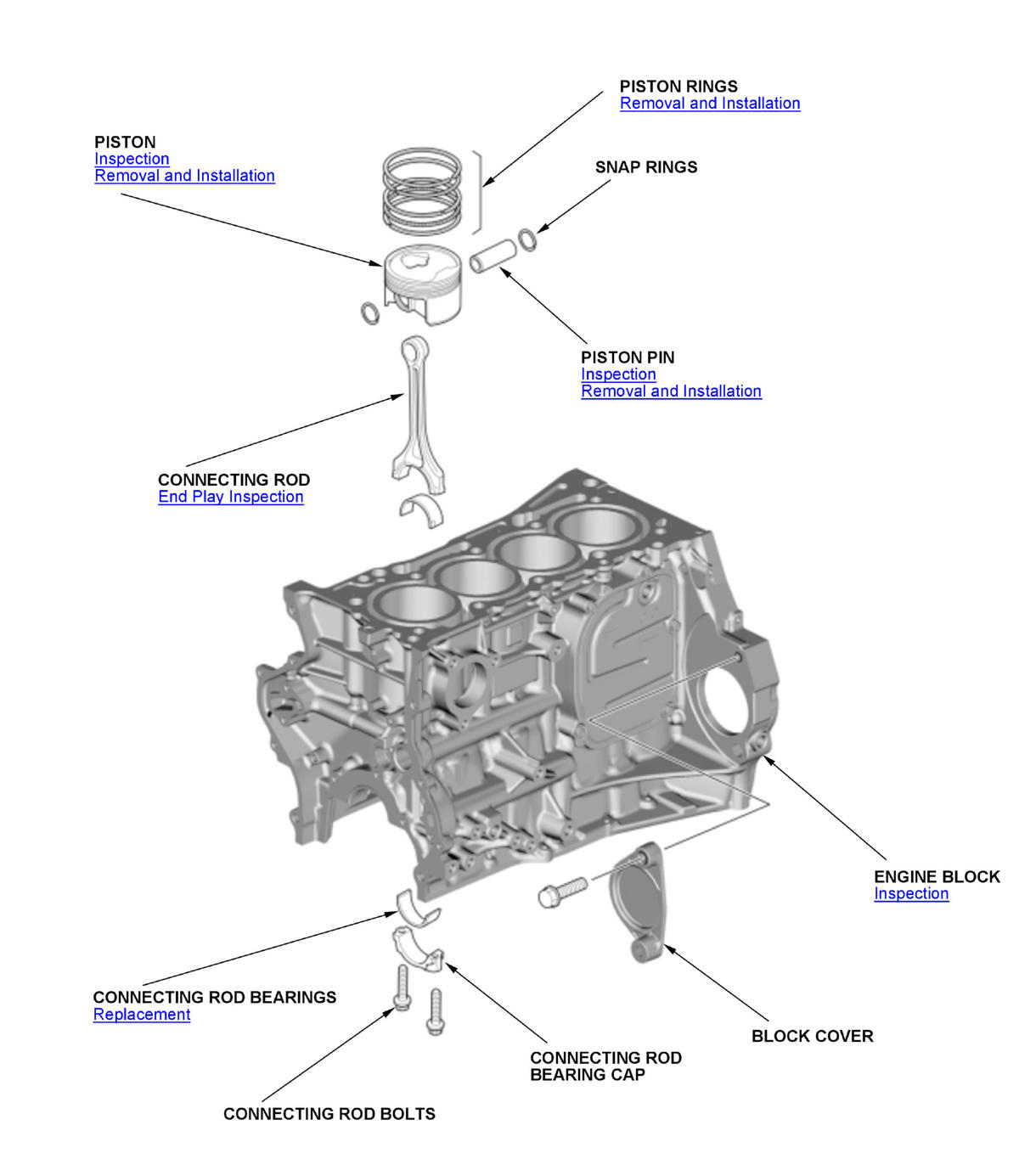

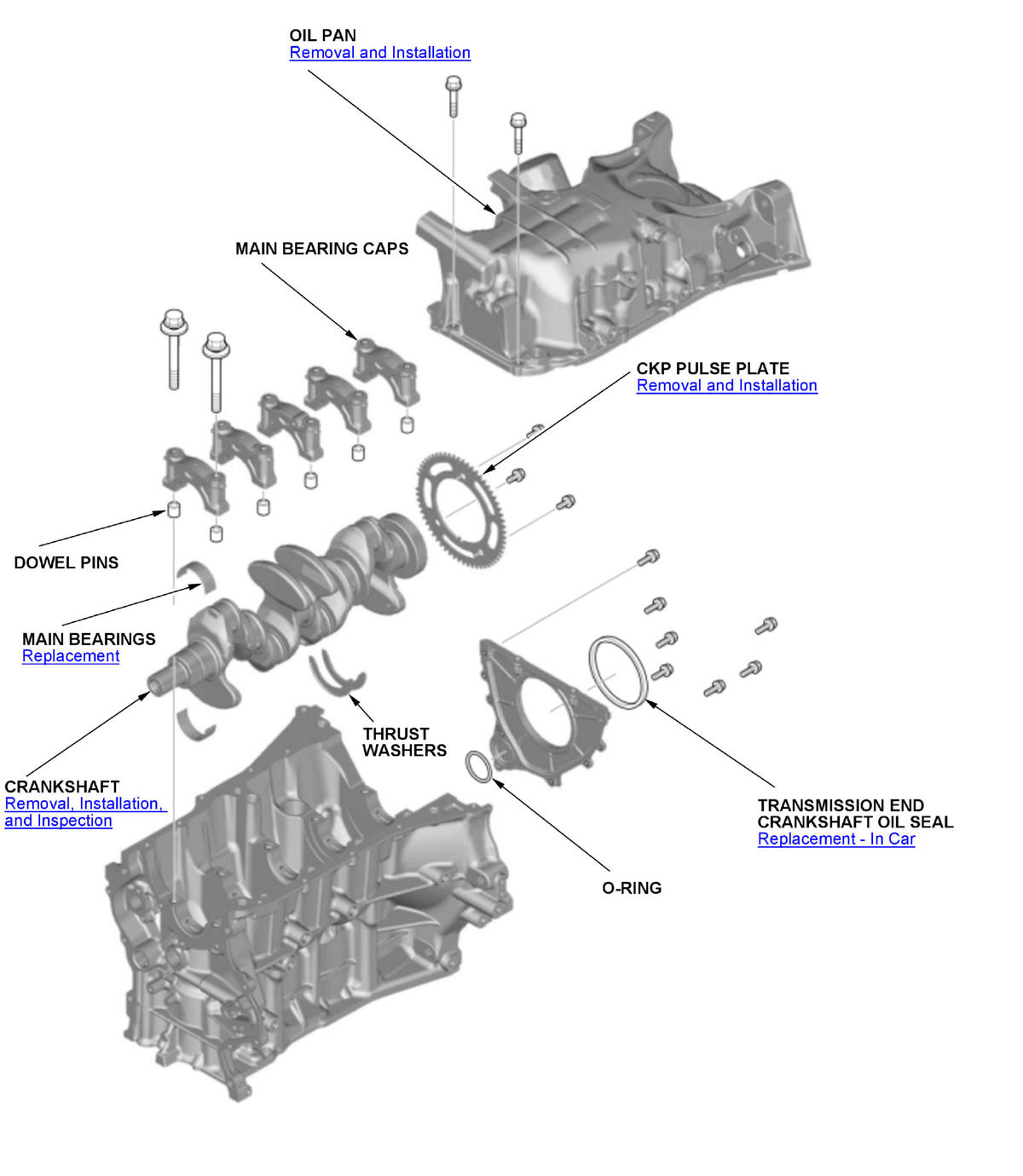

Engine Block Assembly Component Location Index
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
