ATF Level Check and Replacement: Check

NOTE:

• How to read the torque specifications .
• Keep all foreign particles out of the transmission (e-CVT).
• Check the fluid level within 60-90 seconds after turning the engine off.
• Higher fluid level may be indicated if the radiator fan comes on three times or more.

1. Vehicle - Lift
2. Motor Undercover - Remove

   NOTE:  Remove the necessary part(s).

3. ATF Level - Check

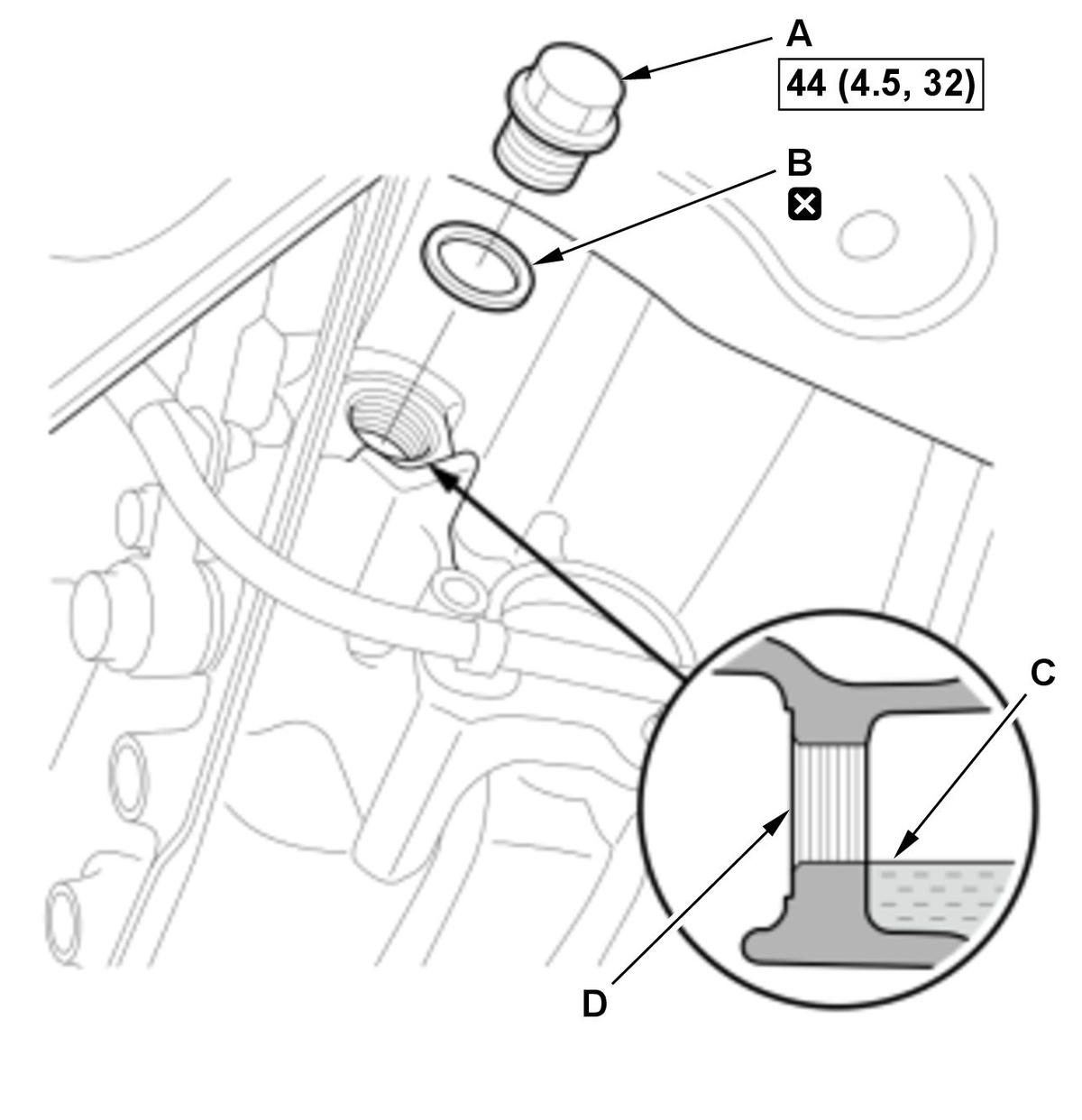

   Fig 1: Filler Plug (A) With The Sealing Washer (B) With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the filler plug (A) with the sealing washer (B). 2. Make sure the ATF level is at the proper level (C). If the ATF is overfilled, drain the ATF from the filler plug hole (D) to the proper level. If the ATF is low, inspect and repair any external leaks. If there are no leaks, fill the transmission (e-CVT) with the recommended fluid through the filler plug hole to the proper level. Always use genuine Honda ATF DW NOTE:  Using the wrong type of fluid will damage the transmission (e-CVT).

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
