ATF Level Check and Replacement: Replacement

NOTE:

• How to read the torque specifications .
• Keep all foreign particles out of the transmission (e-CVT).

1. Vehicle - Lift
2. Motor Undercover - Remove

   NOTE:  Remove the necessary part(s).

3. ATF - Drain

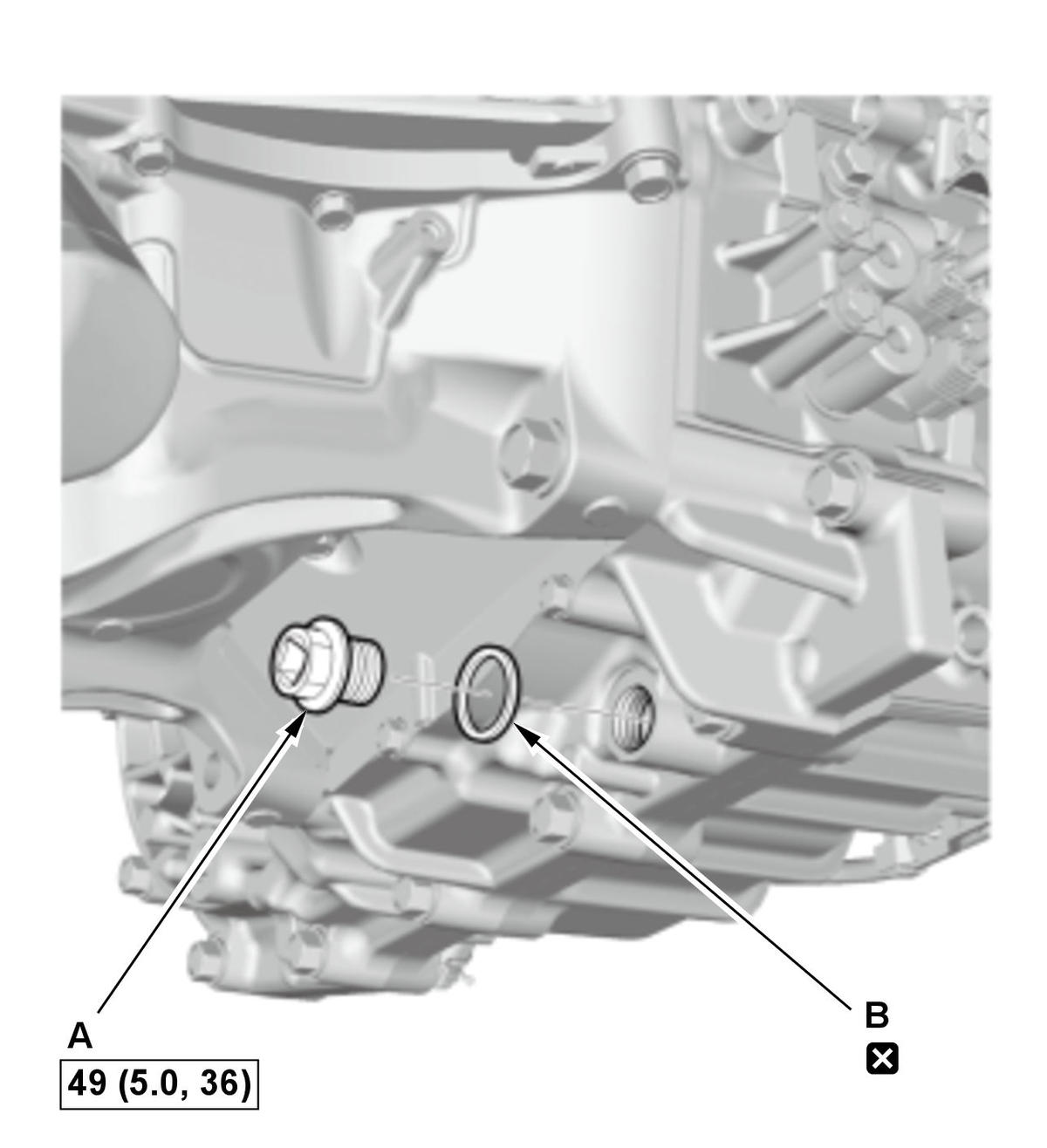

   Fig 1: drain plug (A) with the sealing washer (B) With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the drain plug (A) with the sealing washer (B). 2. Drain the ATF. 3. Reinstall the drain plug with a new sealing washer.

4. ATF - Refill

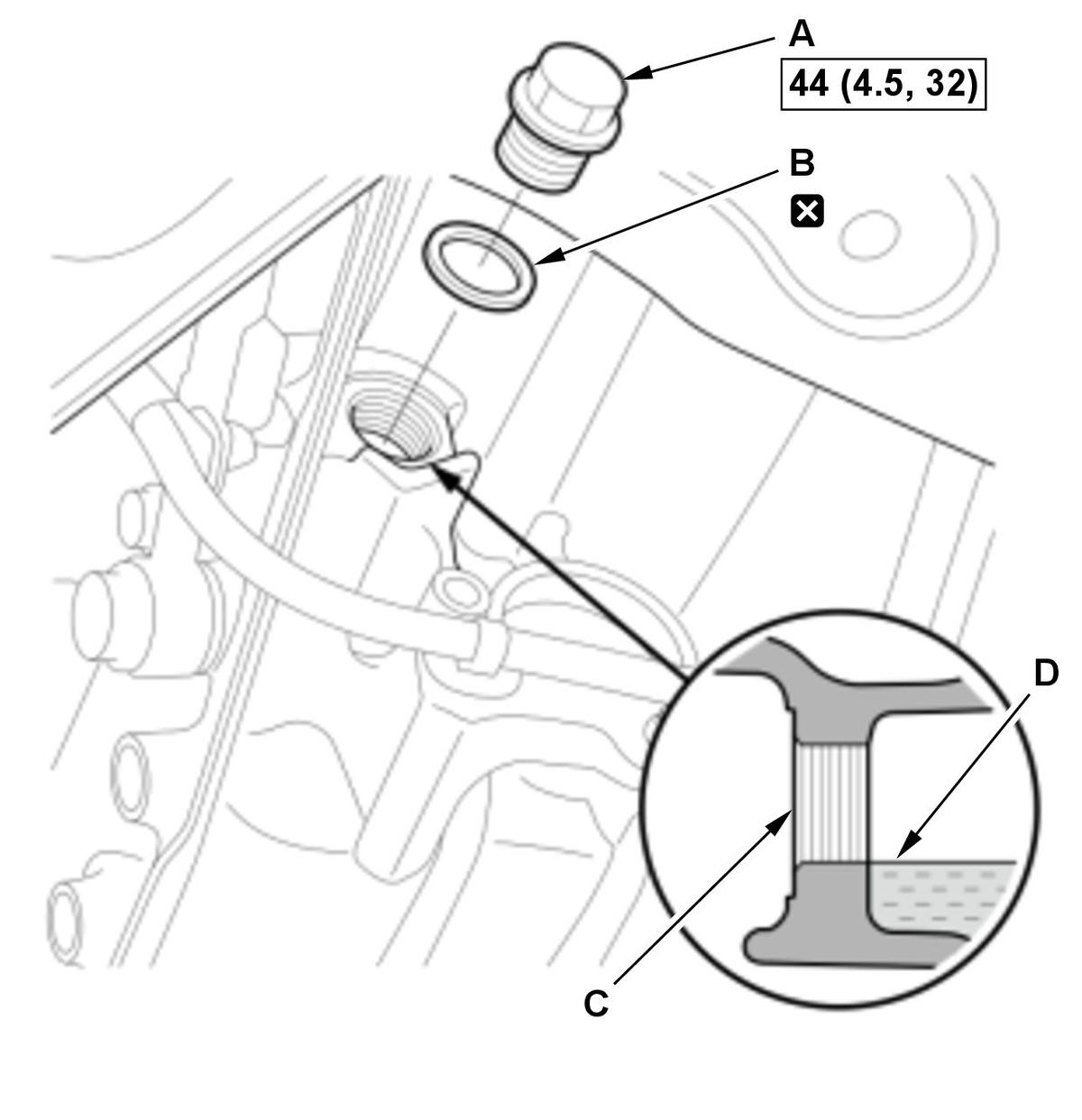

   Fig 2: Drain Plug (A) With The Sealing Washer (B) With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the filler plug (A) with the sealing washer (B). 2. Refill the transmission (e-CVT) with the recommended fluid through the filler plug hole (C) to the proper level (D). Always use genuine Honda ATF DW-1.

   ATF Capacity:
   	2.11 L (2.23 US qt) at change
   	3.15 L (3.33 US qt) at overhaul

   NOTE:  Using a non-Honda ATF can affect shift quality.

5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

6. Maintenance Minder - Reset

   1. If the Maintenance Minder required to replace the ATF, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder") . If the Maintenance Minder did not require to replace the ATF, reset the Maintenance Minder with the HDS (see "Resetting the Individual Maintenance Items") .
