Removal and Installation

  1. Front Grille Cover - Remove

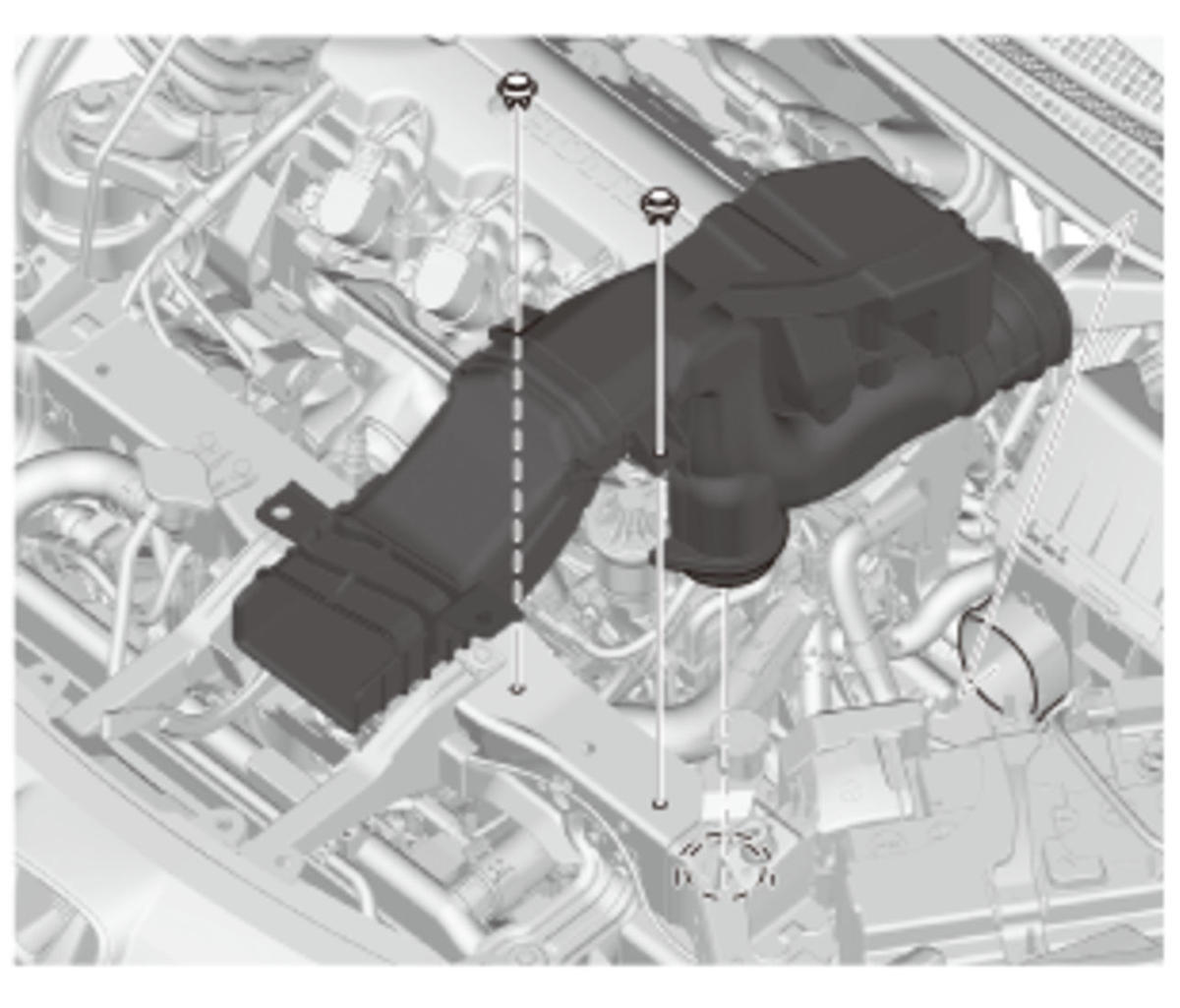

  2. Air Intake Duct - Remove
    GHH435310Courtesy of HONDA, U.S.A., INC.

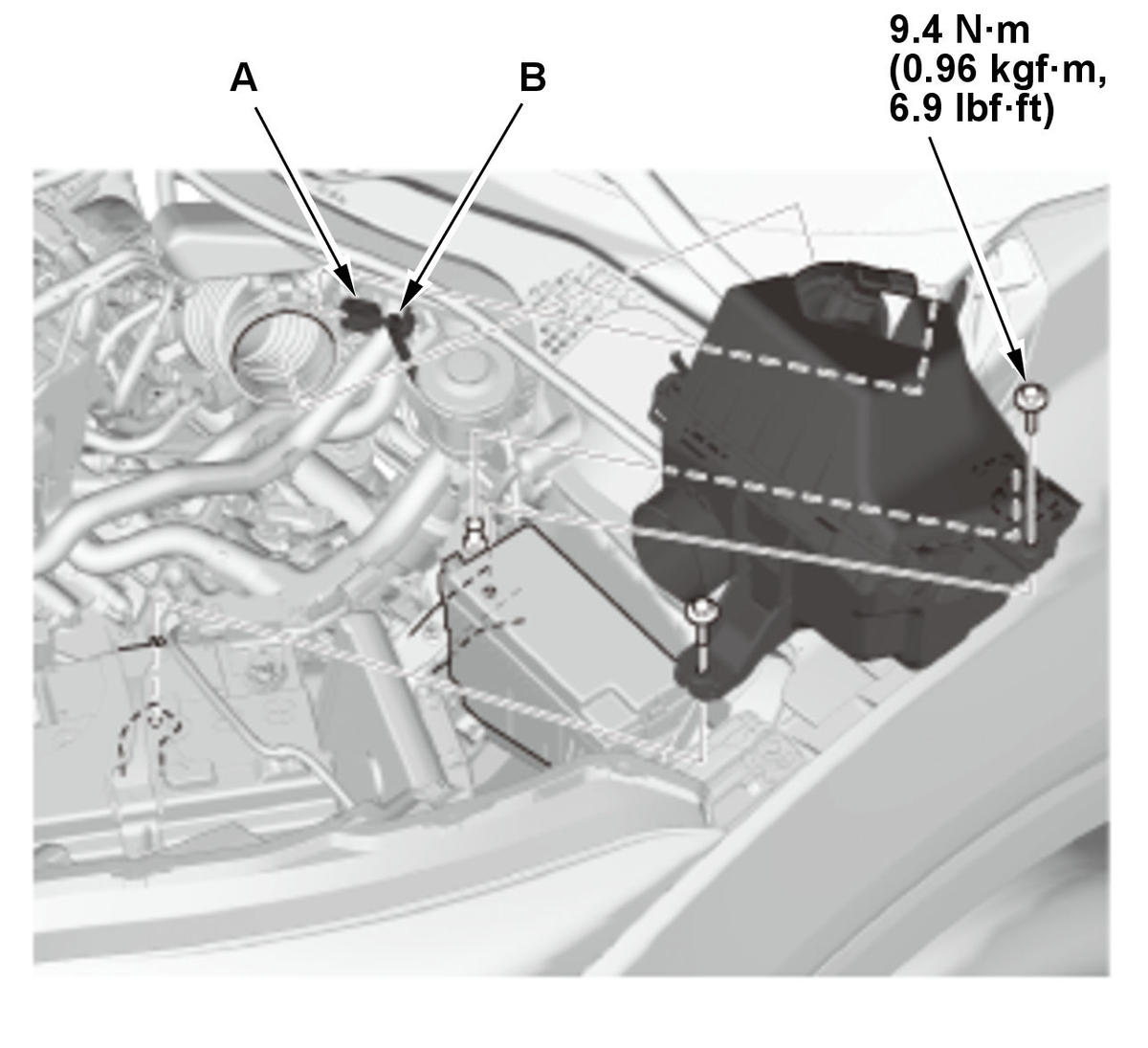

  3. Air Cleaner - Remove
    GHH435311Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

    2. Remove the harness clamp (B).

    3. Remove the air cleaner.
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
