Crankshaft Pulley Removal and Installation: Installation

Crankshaft Pulley - Install

Courtesy of HONDA, U.S.A., INC.

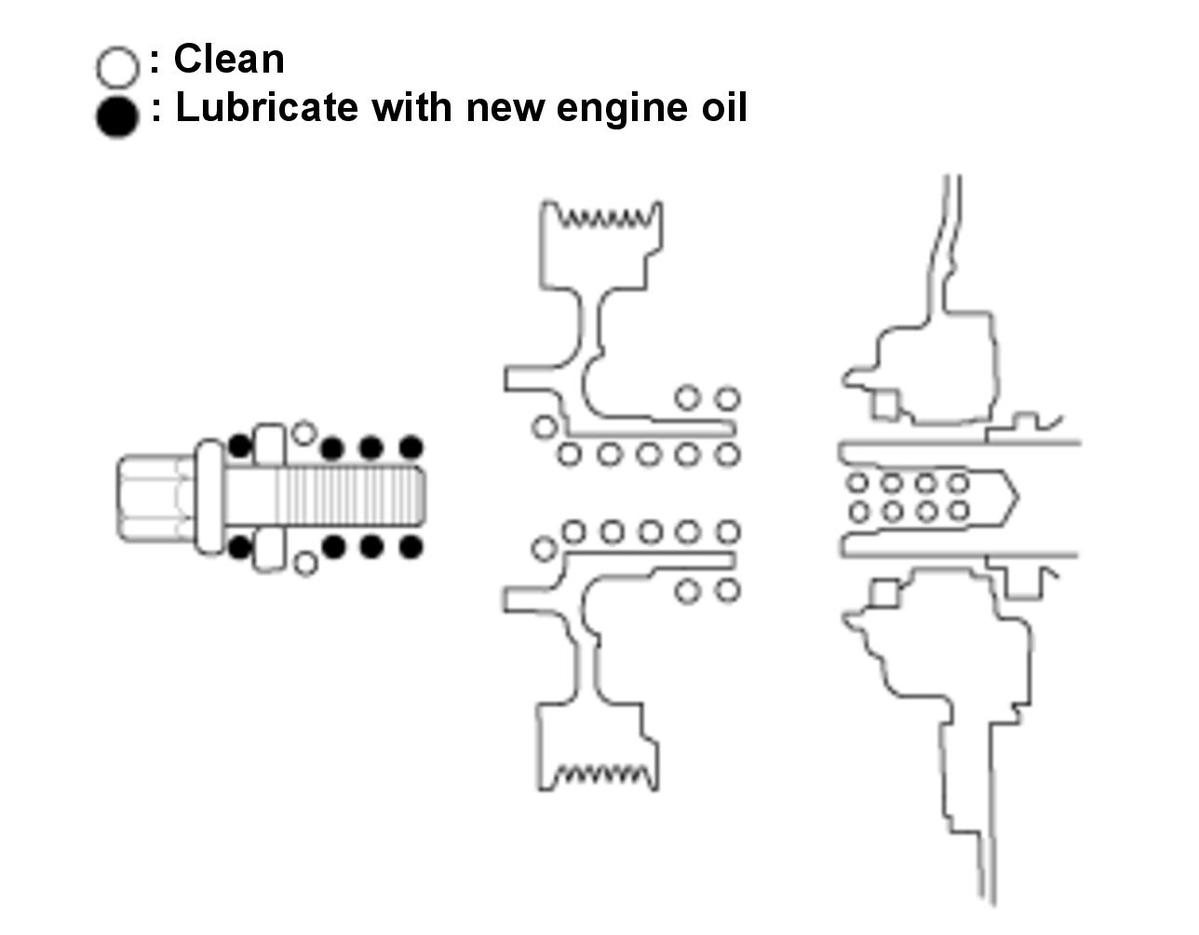

1. Remove any oil and clean the crankshaft pulley, the crankshaft, the bolt, and the washer.

2. Lubricate with new engine oil as shown.

Courtesy of HONDA, U.S.A., INC.

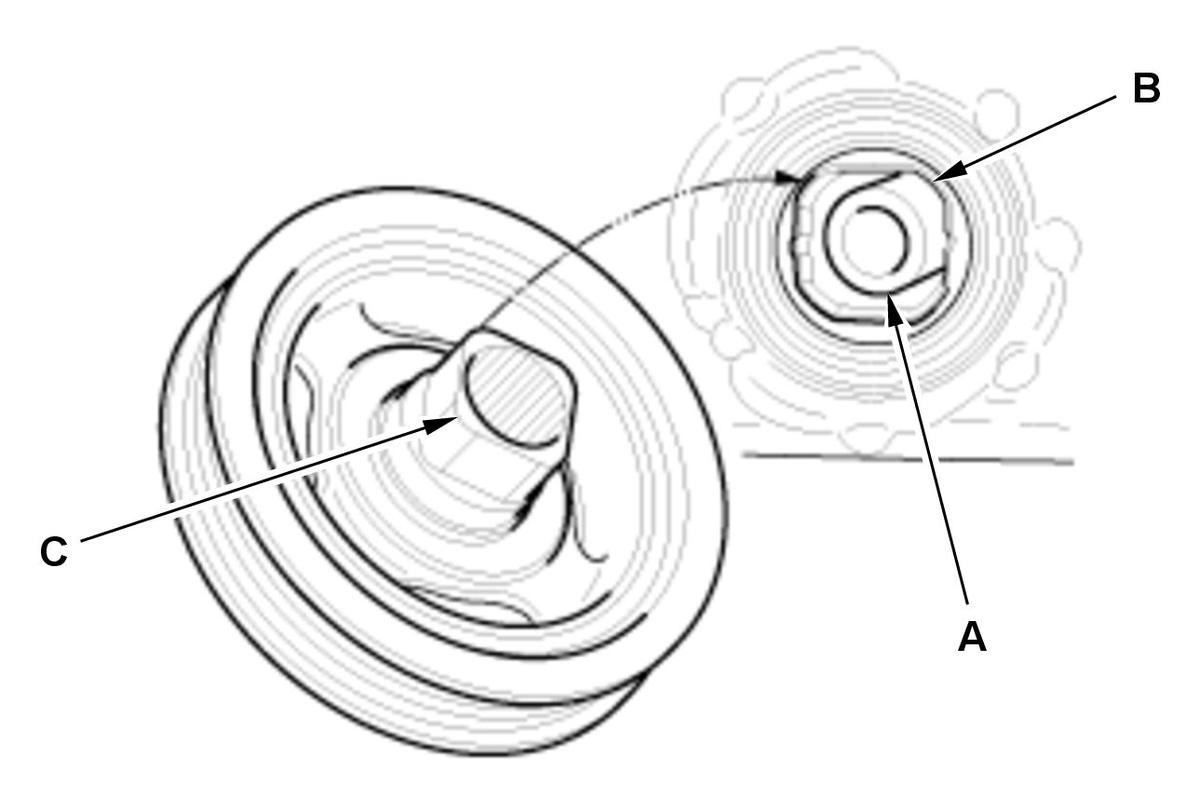

3. Install the crankshaft pulley onto the crankshaft (A) by aligning the flat sides (B) of the pulley with the flat sides (C) of the inner oil pump gear.

Courtesy of HONDA, U.S.A., INC.

When a new crankshaft or a new pulley bolt is installed

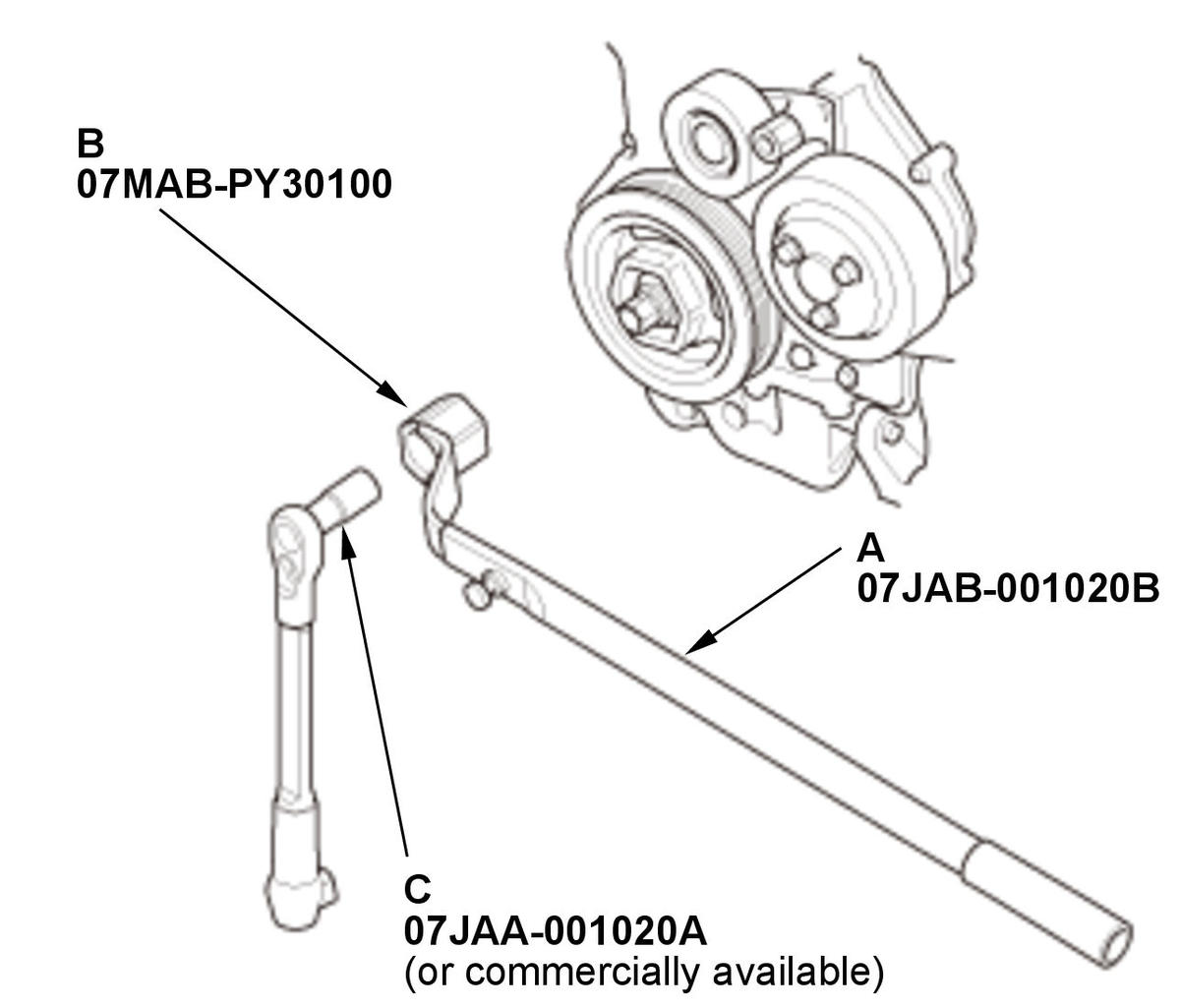

4. Hold the pulley with the holder handle (A) and the pulley holder attachment, 50 x 39 mm (B), torque the bolt to 180 N.m (18.4 kgf.m, 133 lbf.ft) with a torque wrench and a socket, 19 mm (C), then remove the bolt.

NOTE: Do not use an impact wrench.

5. Torque the bolt to 50 N.m (5.1 kgf.m, 37 lbf.ft) with a torque wrench and a socket.

Courtesy of HONDA, U.S.A., INC.

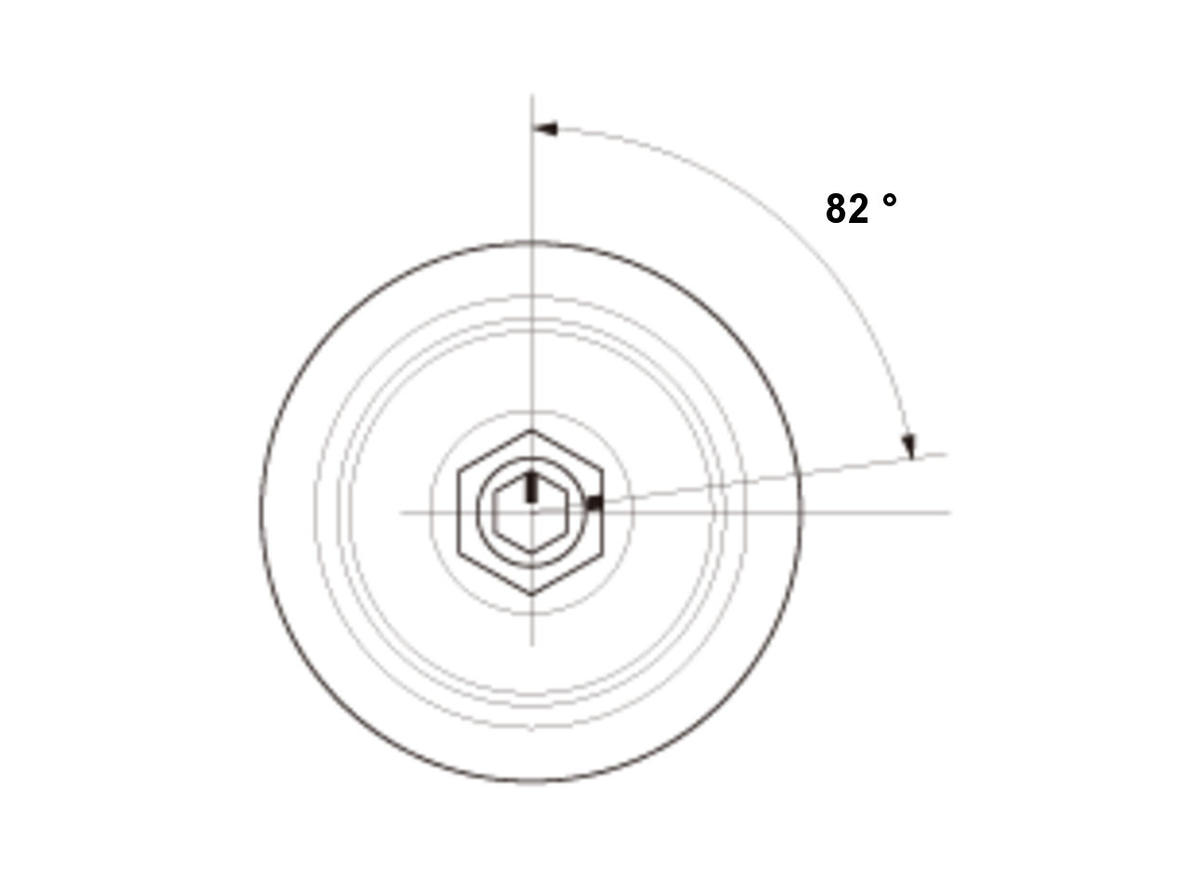

6. Tighten the bolt an additional 82 deg..

Courtesy of HONDA, U.S.A., INC.

When the crankshaft or the pulley bolt is reused

7. Hold the pulley with the holder handle (A) and the pulley holder attachment, 50 x 39 mm (B), then torque the bolt to 70 N.m (7.1 kgf.m, 52 lbf.ft) with a torque wrench and a socket, 19 mm (C).NOTE: Do not use an impact wrench.

Courtesy of HONDA, U.S.A., INC.

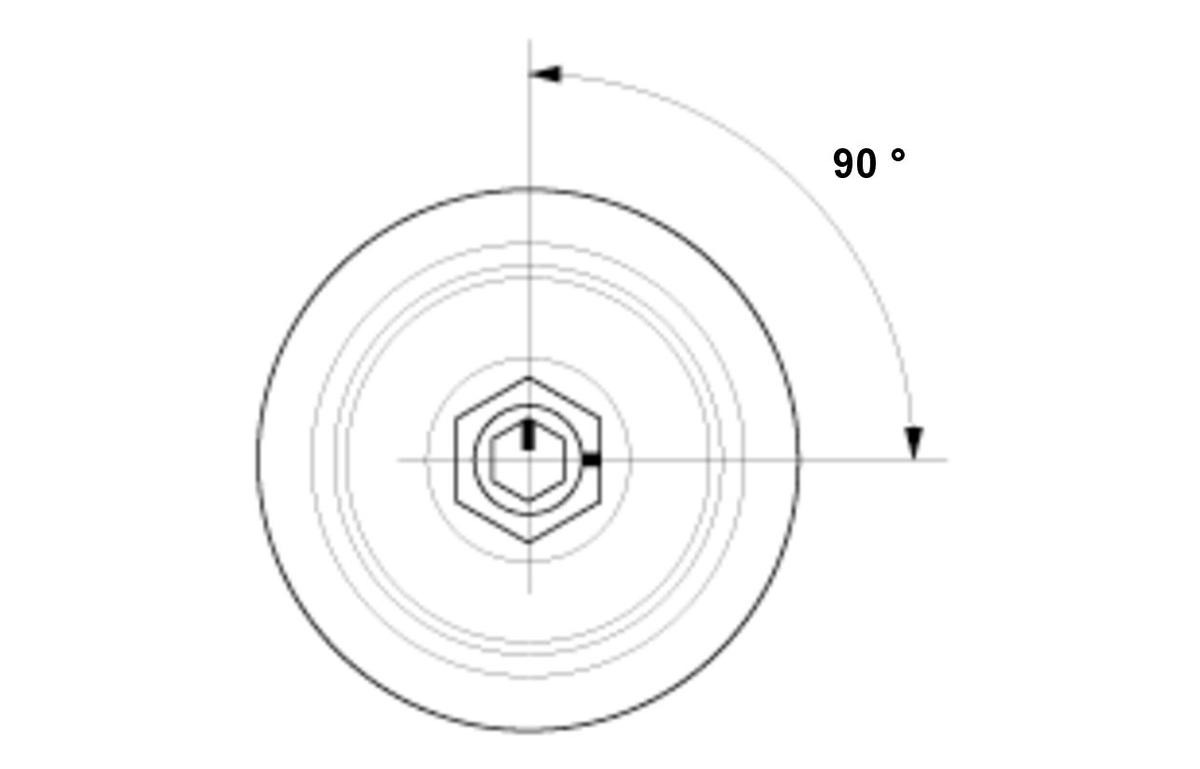

8. Tighten the bolt an additional 90 deg..

Drive Belt - Install
Right Front Splash Shield - Install
Right Front Wheel - Install
