Intake Manifold Removal and Installation
›
Exploded View
Exploded View
Intake Manifold Exploded View

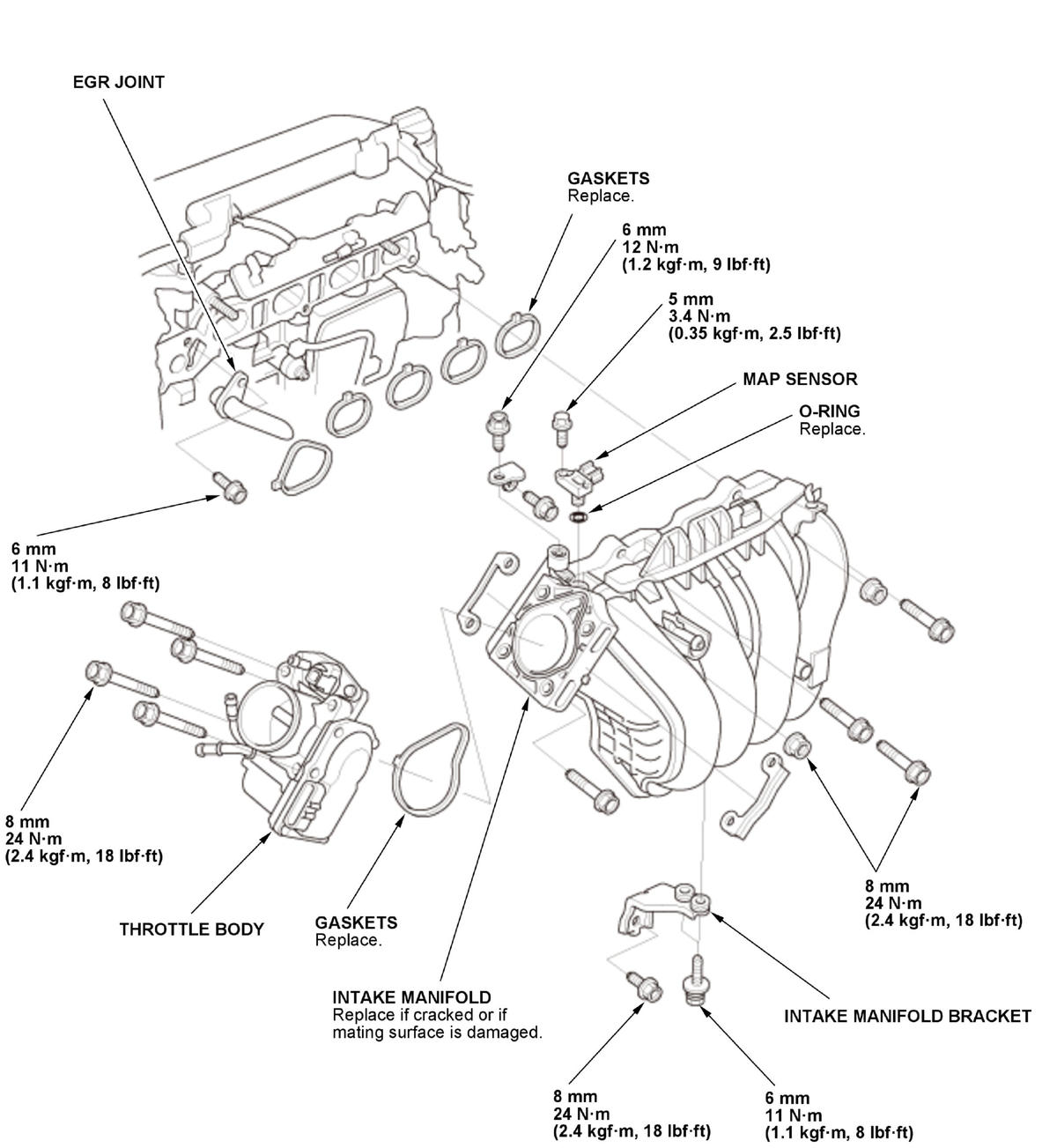

Fig 1: Intake Manifold Exploded View With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
