Valve, Spring, and Valve Seal Removal and Installation: Installation

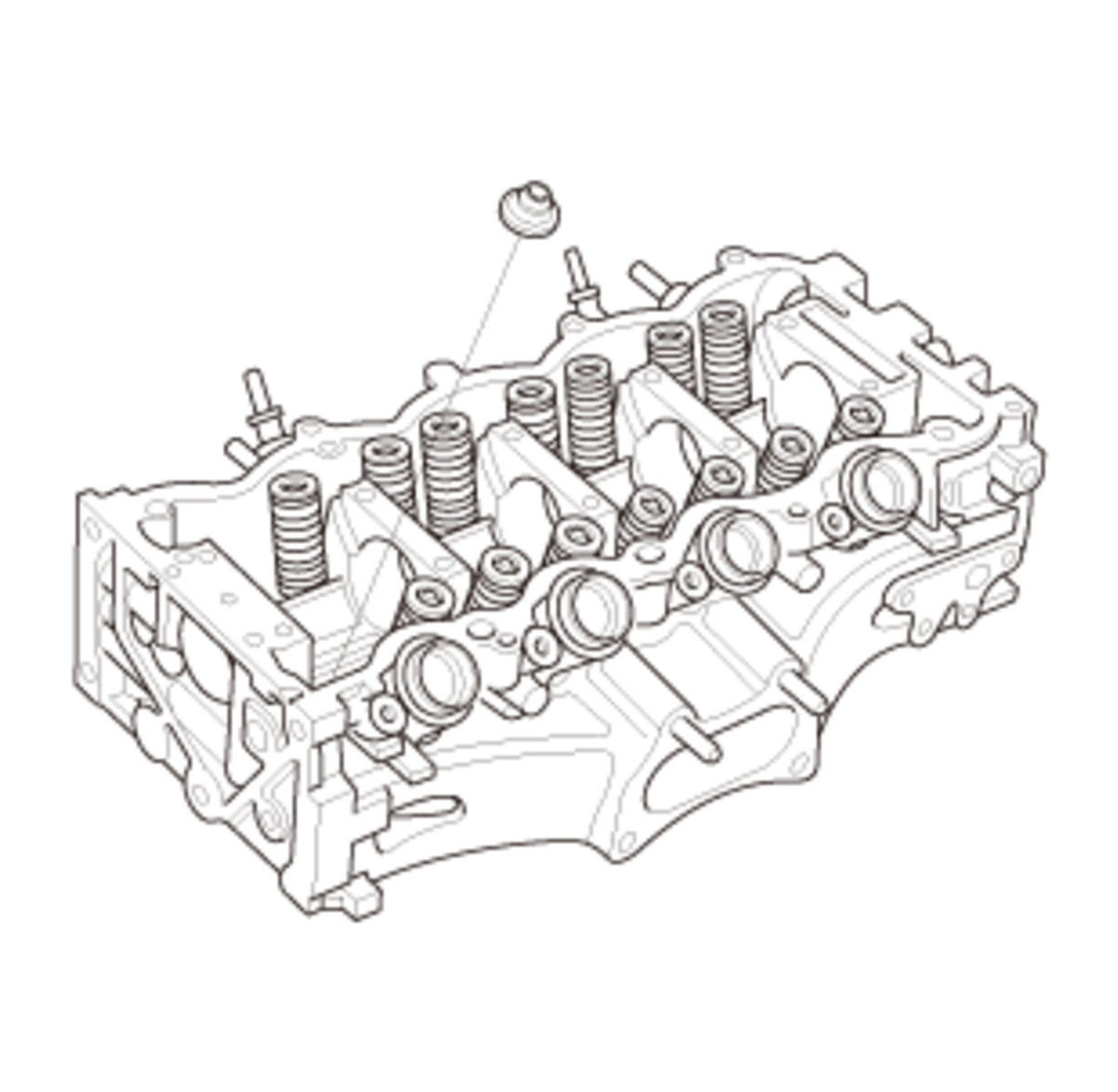

Valve Spring Seat - Install

Courtesy of HONDA, U.S.A., INC.

Valve Seal - Install

Courtesy of HONDA, U.S.A., INC.

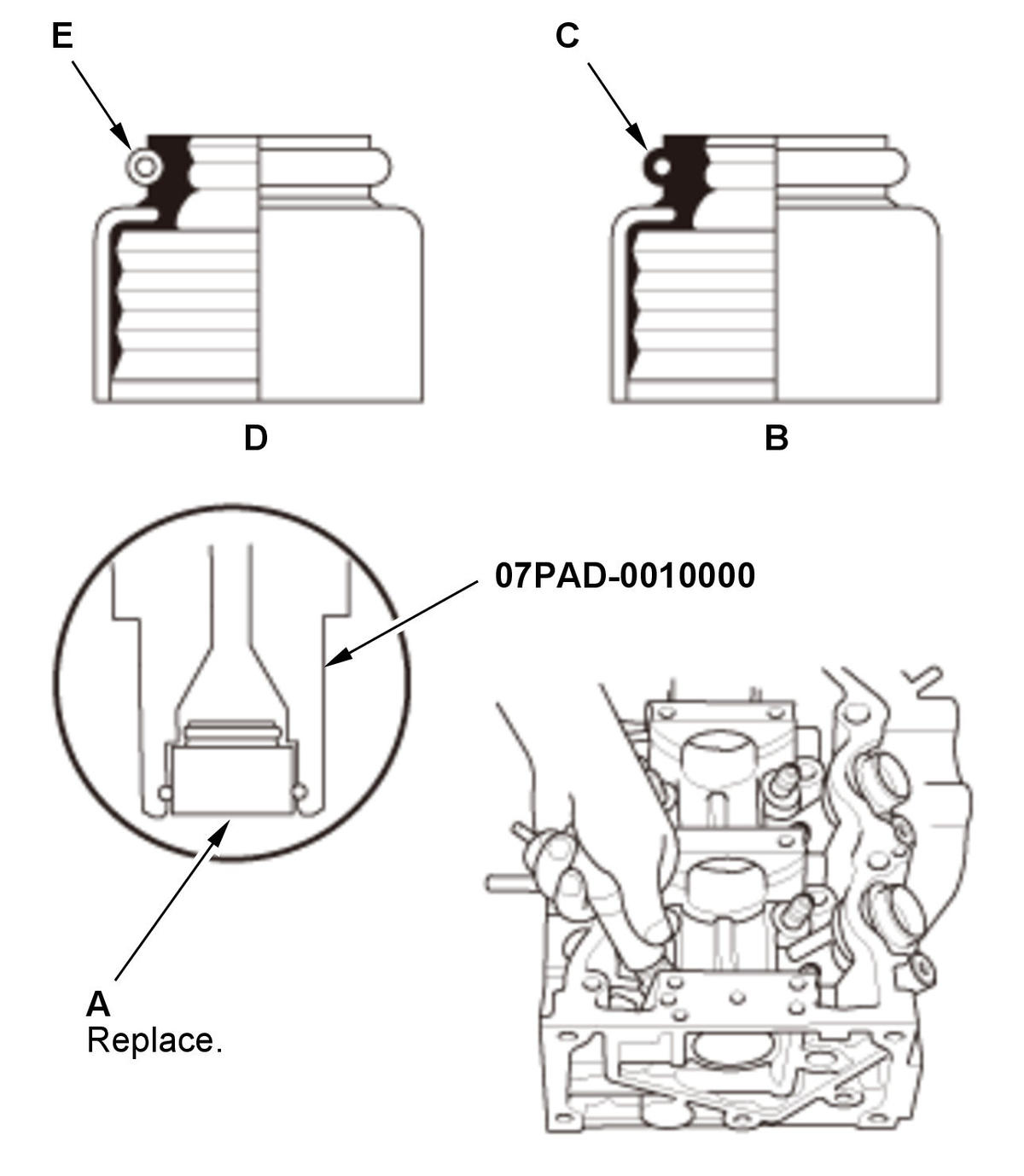

1. Coat the new valve seals (A) with new engine oil.

2. Install new valve seals using the 5.5 mm side of the stem seal driver.

NOTE: Exhaust valve seal (B) has a black spring (C), and intake valve seal (D) has a white or silver spring (E); they are not interchangeable.

Valve, Valve Spring, and Spring Retainer - Install

Courtesy of HONDA, U.S.A., INC.

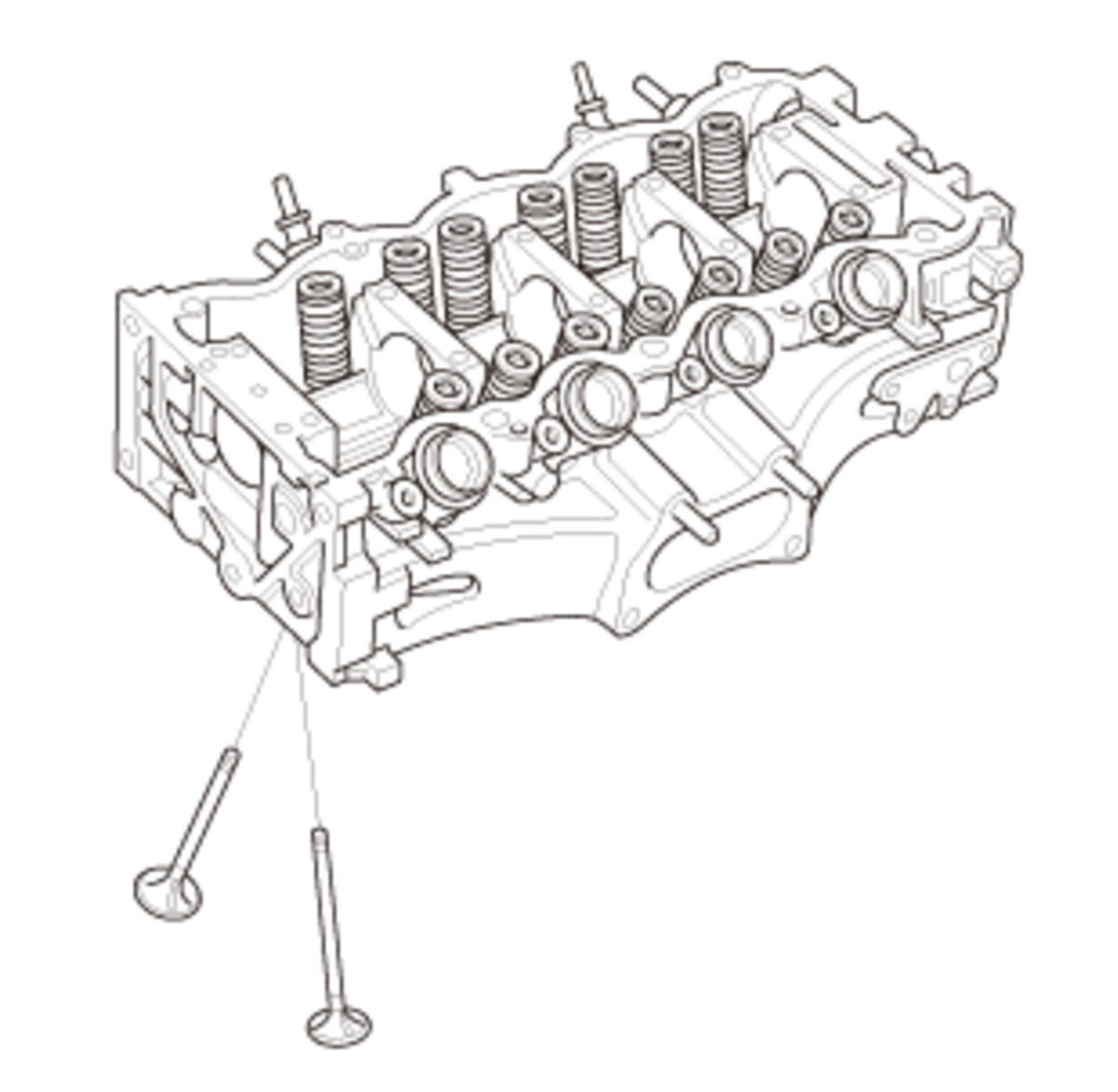

1. Coat the valve stems with new engine oil.

2. Install the valves in the valve guides.

3. Check that the valves move up and down smoothly.

Courtesy of HONDA, U.S.A., INC.

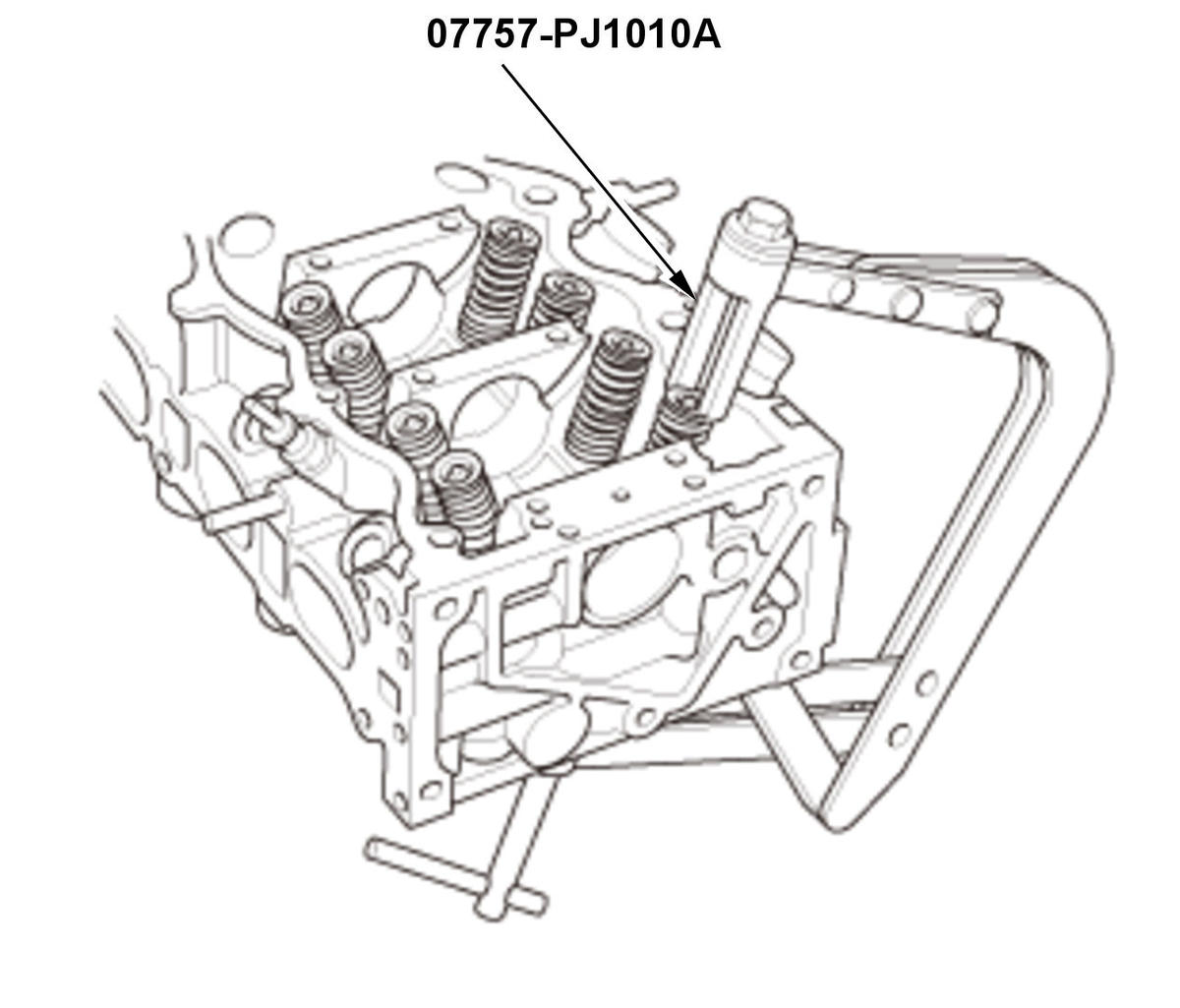

4. Install the valve spring and the spring retainer. Place the end of the valve spring with closely wound coils toward the cylinder head.

5. Install the valve spring compressor attachment and the valve spring compressor.

6. Compress the valve spring, and install the valve cotters.

7. Remove the valve spring compressor attachment and the valve spring compressor.

Courtesy of HONDA, U.S.A., INC.

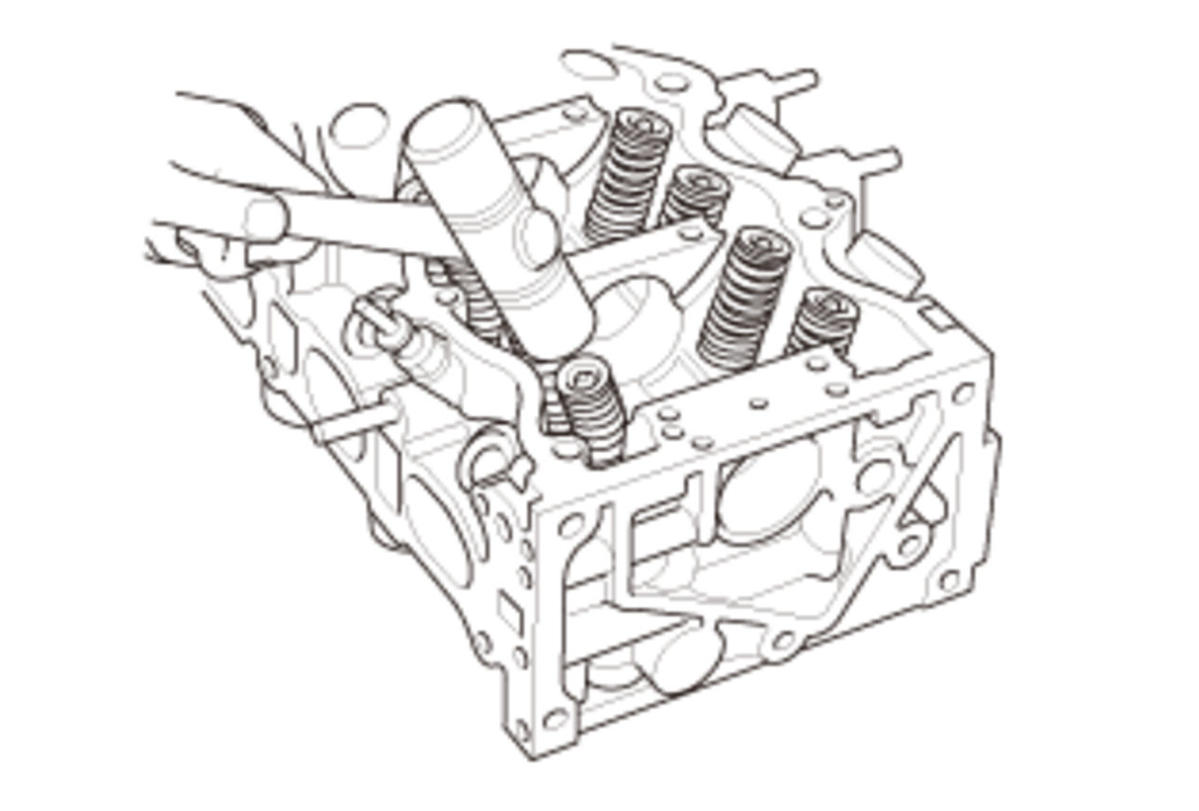

8. Lightly tap the end of each valve stem two or three times with a plastic mallet to ensure proper seating of the valve and the valve cotters. Tap the valve stem only along its axis so you do not bend the valve stem.NOTE: Be sure to raise the cylinder head off the work bench to avoid damaging the valve.

Camshaft - Install
Cylinder Head - Install
