DTC P0843 (CVT)

DTC P0843  : Transmission Fluid Pressure Sensor/Switch "A" Circuit High

NOTE:

• Before you troubleshoot, review the General Troubleshooting Information .
• This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

DTC (CVT)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Driven Pulley Pressure Sensor (V)	More than 4.84	V

   Do the current condition (s) match the threshold?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the CVT driven pulley pressure sensor and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Determine possible failure area (CVT driven pulley pressure sensor, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

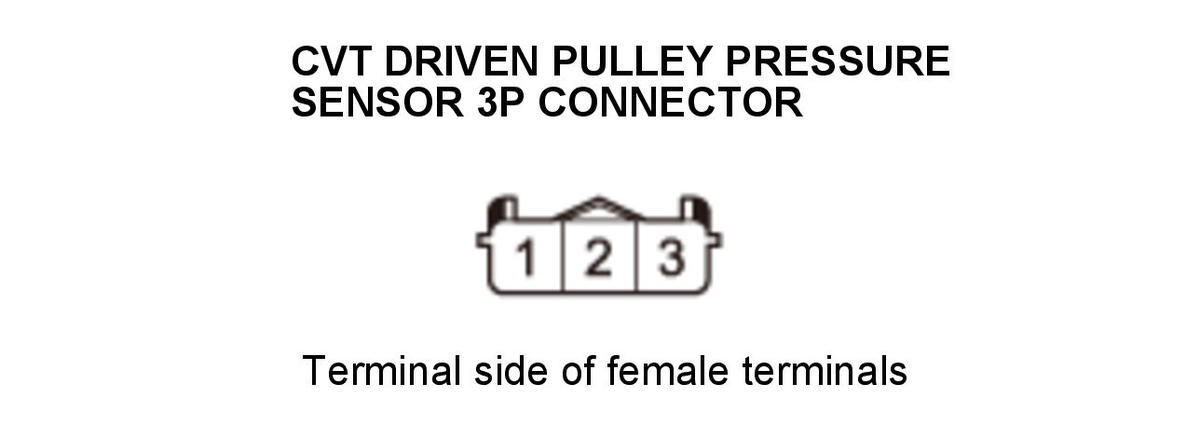

   CVT driven pulley pressure sensor 3P connector

   -3. Connect terminals A and B with a jumper wire.

   Terminal A	CVT driven pulley pressure sensor 3P connector No. 1
   Terminal B	CVT driven pulley pressure sensor 3P connector No. 2

   Courtesy of HONDA, U.S.A., INC.

   -4. Turn the vehicle to the ON mode.

   -5. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   Driven Pulley Pressure Sensor (V)	More than 4.84	V

   Do the current condition (s) match the threshold?

   YES

   Go to step 3.

   NO

   Replace the CVT Driven pulley pressure sensor .

3. Open wire check (PDN line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the jumper wire.

   -3. Jump the SCS line with the HDS.

   -4. Disconnect the following connector.

   PCM connector B (51P)

   -5. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	CVT driven pulley pressure sensor 3P connector: disconnected
   	PCM connector B (51P): disconnected
   Test point 1	CVT driven pulley pressure sensor 3P connector No. 2

   Test point 2

   PCM connector B (51P) No. 39

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The PDN wire is OK. Go to step 4.

   NO

   Repair an open in the PDN wire between the CVT driven pulley pressure sensor and the PCM.

4. Open wire check (SG2 line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	CVT driven pulley pressure sensor 3P connector: disconnected
   	PCM connector B (51P): disconnected
   Test point 1	CVT driven pulley pressure sensor 3P connector No. 1
   Test point 2	PCM connector B (51P) No. 5

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The SG2 wire is OK. Update the PCM if it does not have the latest software , or substitute a known-good PCM , then recheck. If DTC P0843 goes away and the PCM was updated, troubleshooting is complete. If DTC P0843 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the SG2 wire between the CVT driven pulley pressure sensor and the PCM.
