DTC P0962 (CVT)

DTC P0962  : CVT Drive Pulley Pressure Control Valve Circuit Low

NOTE:

• Before you troubleshoot, review the General Troubleshooting Information .
• This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

DTC (CVT)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Start the engine, and wait for at least 1 second.

   -4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0962 CVT Drive Pulley Pressure Control Valve Circuit Low

   Is DTC P0962 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the CVT drive pulley pressure control solenoid valve and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Determine possible failure area (DRLS line, others)

   -1. Do the CVT drive pulley pressure control solenoid valve test .

   Does the CVT drive pulley pressure control solenoid valve work properly?

   YES

   Go to step 3.

   NO

   Go to step 4.

3. Open wire check (DRLS line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS.

   -3. Disconnect the following connector.

   PCM connector B (51P)

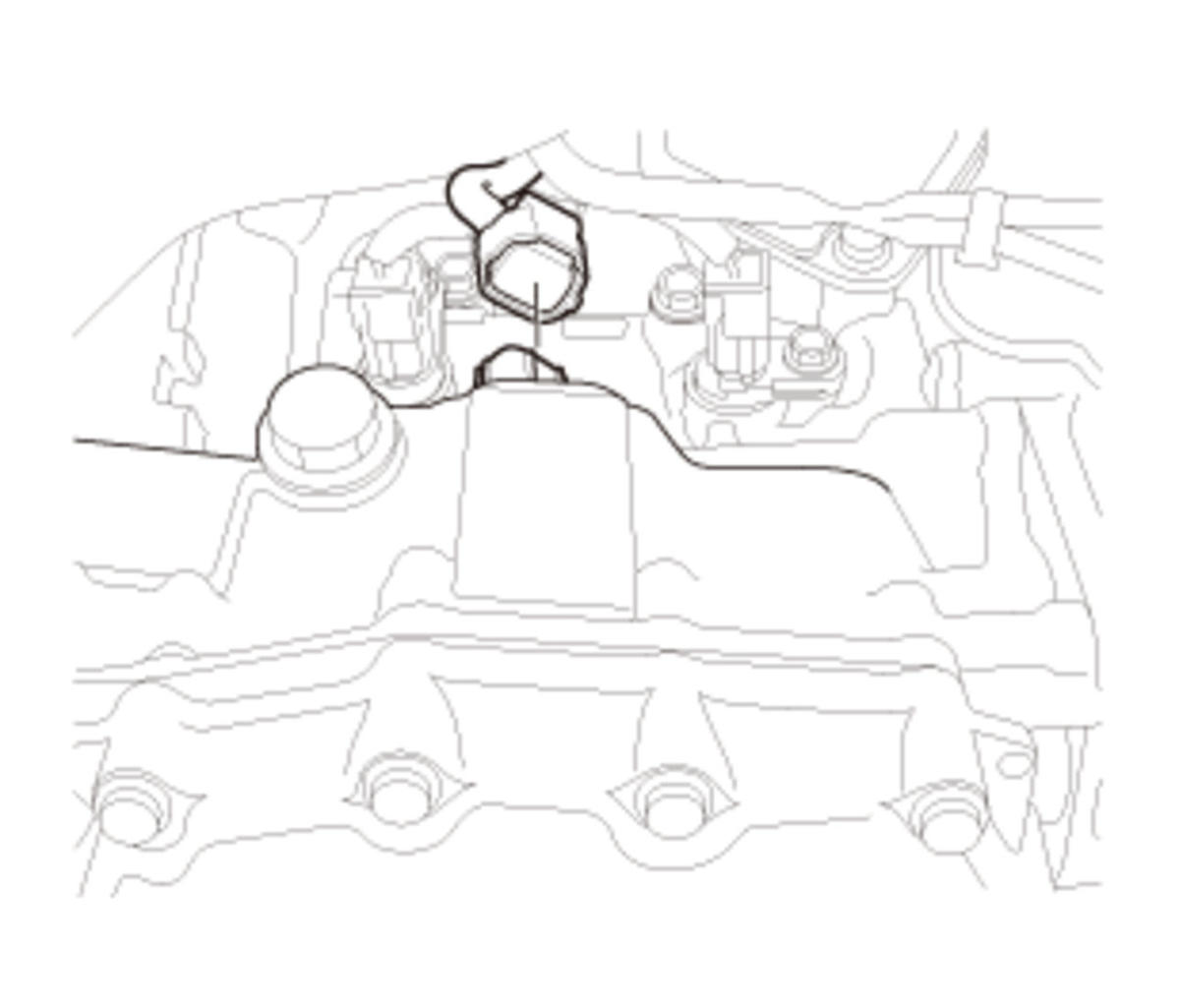

   -4. Disconnect the following connector.

   Solenoid wire harness 8P connector (engine wire harness side)

   Courtesy of HONDA, U.S.A., INC.

   -5. Check for continuity between test points 1 and 2.

   Test condition

   Vehicle OFF (LOCK) mode

   	Solenoid wire harness 8P connector (engine wire harness side): disconnected
   	PCM connector B (51P): disconnected

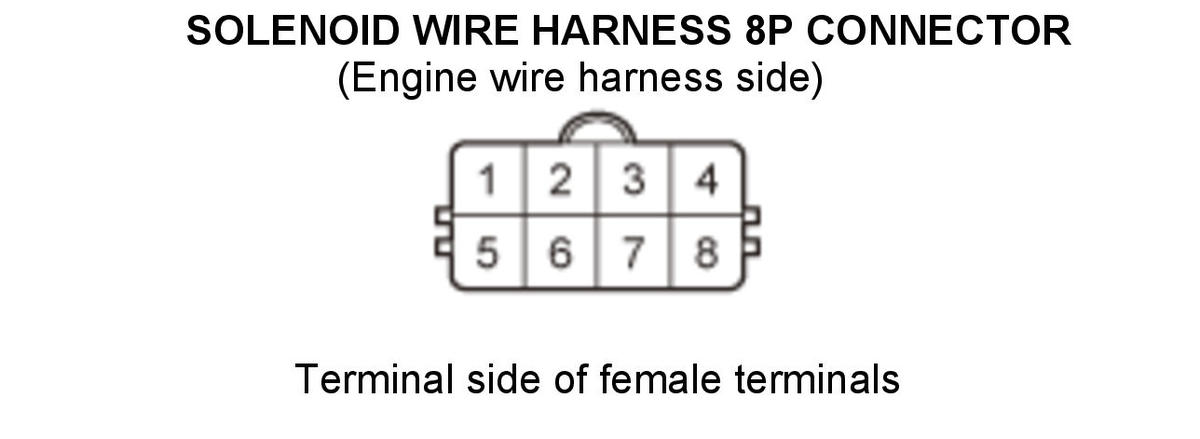

   Test point 1	Solenoid wire harness 8P connector (engine wire harness side) No. 5
   Test point 2	PCM connector B (51P) No. 10

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The DRLS wire is OK. Update the PCM if it does not have the latest software , or substitute a known-good PCM , then recheck. If DTC P0962 goes away and the PCM was updated, troubleshooting is complete. If DTC P0962 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the DRLS wire between the solenoid wire harness and the PCM.

4. CVT drive pulley pressure control solenoid valve check

   -1. Remove the valve body assembly .

   -2. Disconnect the following connector.

   CVT drive pulley pressure control solenoid valve 2P connector

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Solenoid wire harness 8P connector (valve body assembly side): disconnected
   	CVT drive pulley pressure control solenoid valve 2P connector: disconnected

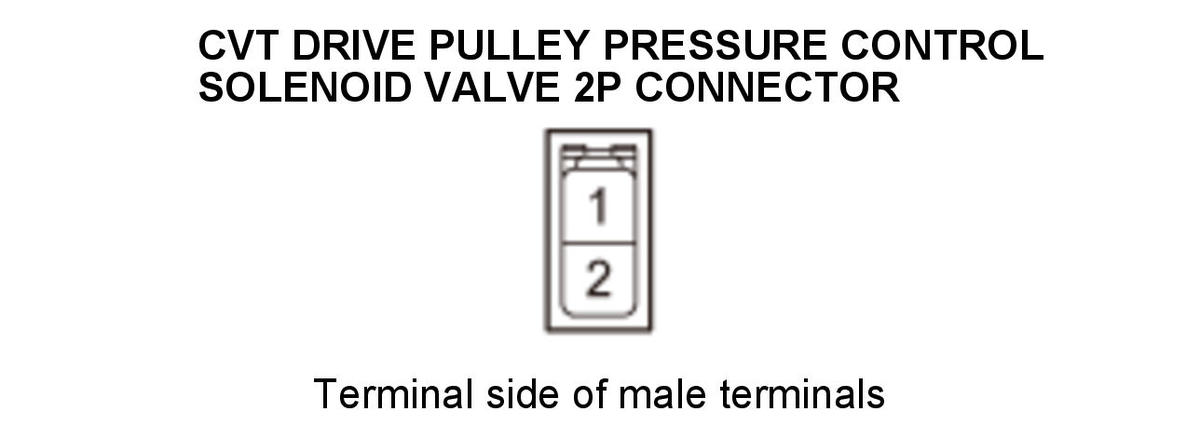

   Test point 1	CVT drive pulley pressure control solenoid valve 2P connector No. 1
   Test point 2	CVT drive pulley pressure control solenoid valve 2P connector No. 2

   Courtesy of HONDA, U.S.A., INC.

   Is there 4.6-6.3 Ω?

   YES

   The CVT drive pulley pressure control solenoid valve is OK. Replace the solenoid wire harness .

   NO

   Faulty CVT drive pulley pressure control solenoid valve. Replace the valve body assembly .
