Telematics Switch Module: Test

  1. Telematics Switch Module - Test

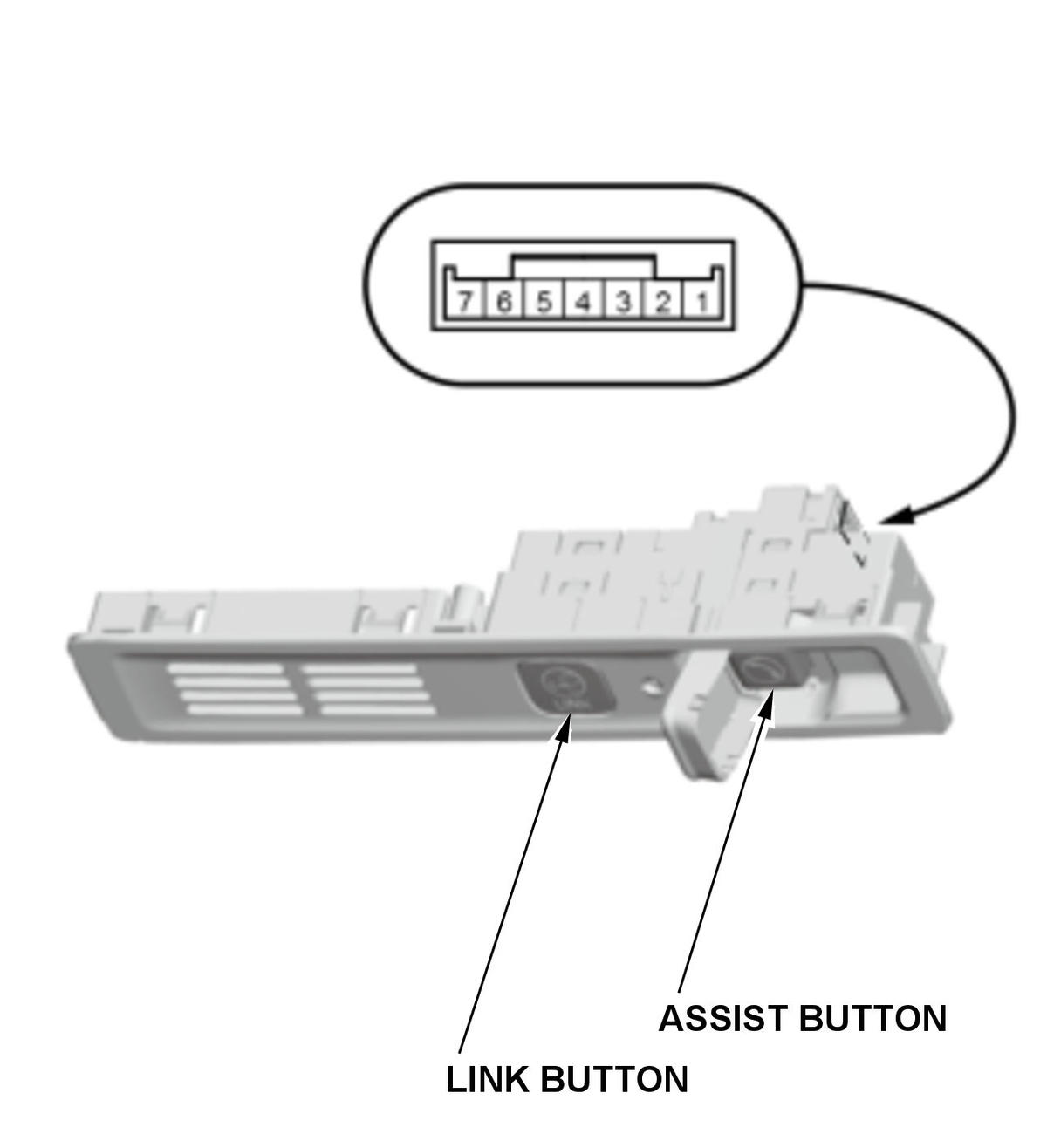

    GHH382423Courtesy of HONDA, U.S.A., INC.
    		 1. Measure the resistance between terminals No. 1 and No. 2 in each switch position according to the table.

    2. If the resistance is not as specified, replace the telematics switch module.
    Button Held Down Resistance
    No button pressed About 3.1 kΩ
    LINK About 400 '
    ASSIST About 100 '
