System Description
›
Keyless/Power Door Locks/Security - Components
›

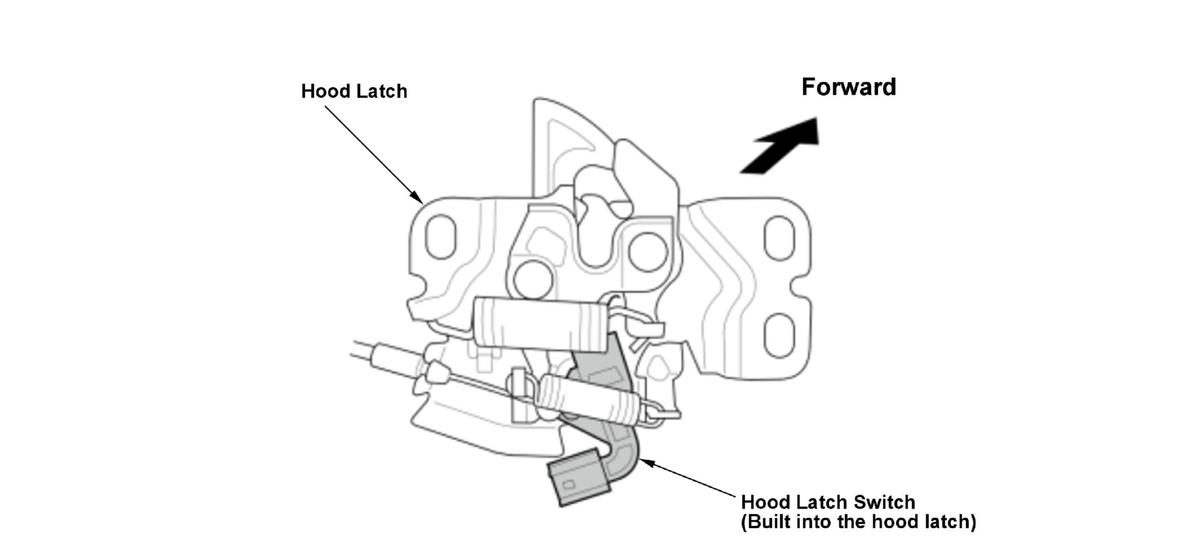

Hood Latch Switch
Hood Latch Switch
The hood latch switch is built into the hood latch and it detects the opening/closing of the hood.
Courtesy of HONDA, U.S.A., INC.
Hood
Hood Latch Switch
Open
OFF
Close
ON
Courtesy of HONDA, U.S.A., INC.
