Canister Guard Procedure

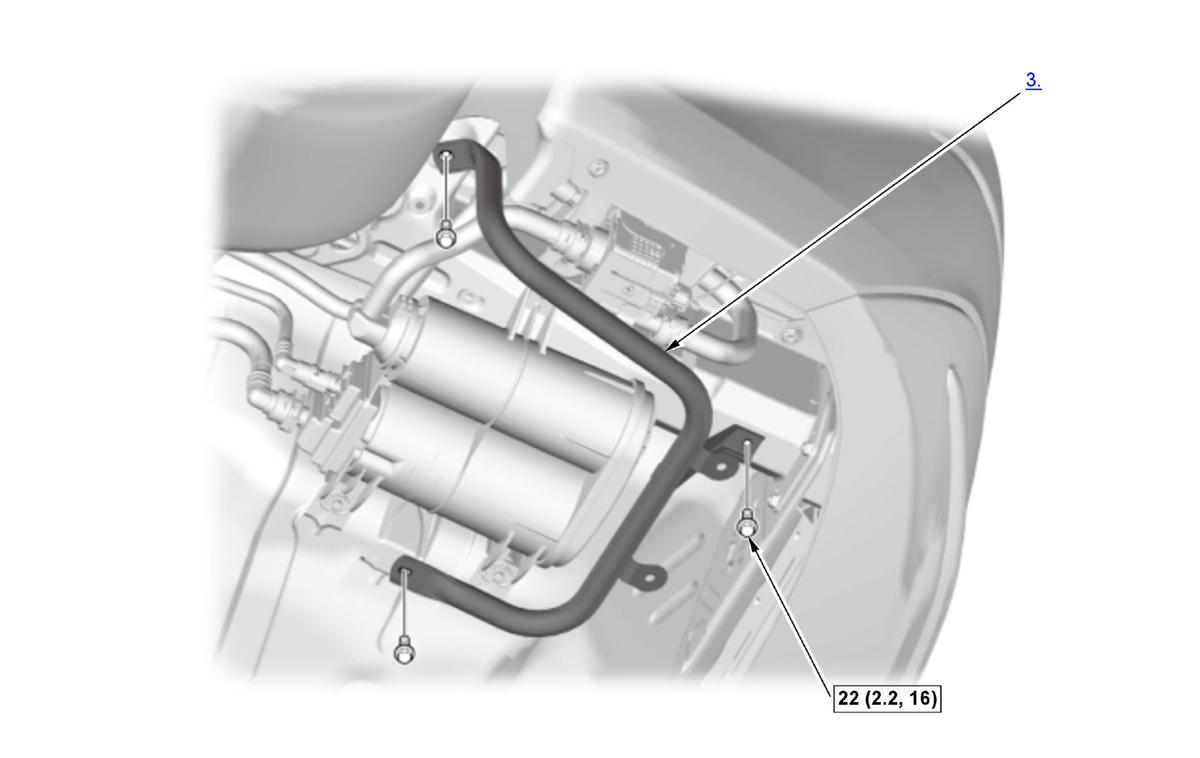

Fig 1: Canister Guard With Torque Specifications
GHH386319Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. Lower Bulkhead Brace - Tightening Torque
  2. Middle Floor Guard - Tightening Torque
  3. Canister Guard - Tightening Torque
