DTC P0A2D: General Description

Courtesy of HONDA, U.S.A., INC.

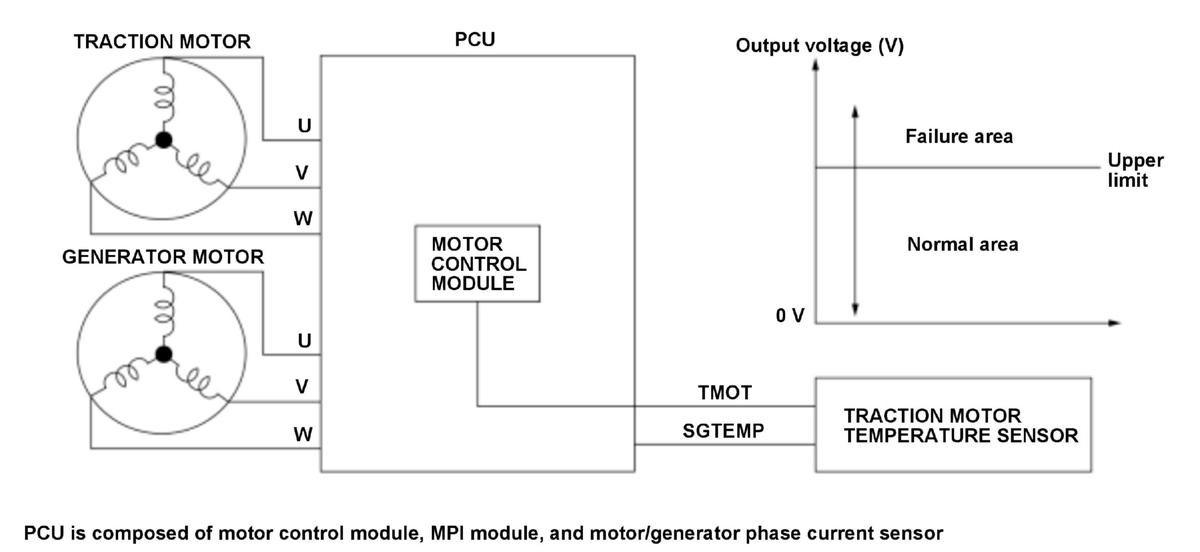

The power control unit (PCU) monitors the traction motor temperature sensor value to prevent malfunction of traction motor due to heat generation. If the traction motor temperature sensor voltage is excessively high for a set time, the motor control module in the PCU detects a malfunction and stores a DTC.
