DTC P1D77: General Description

Courtesy of HONDA, U.S.A., INC.

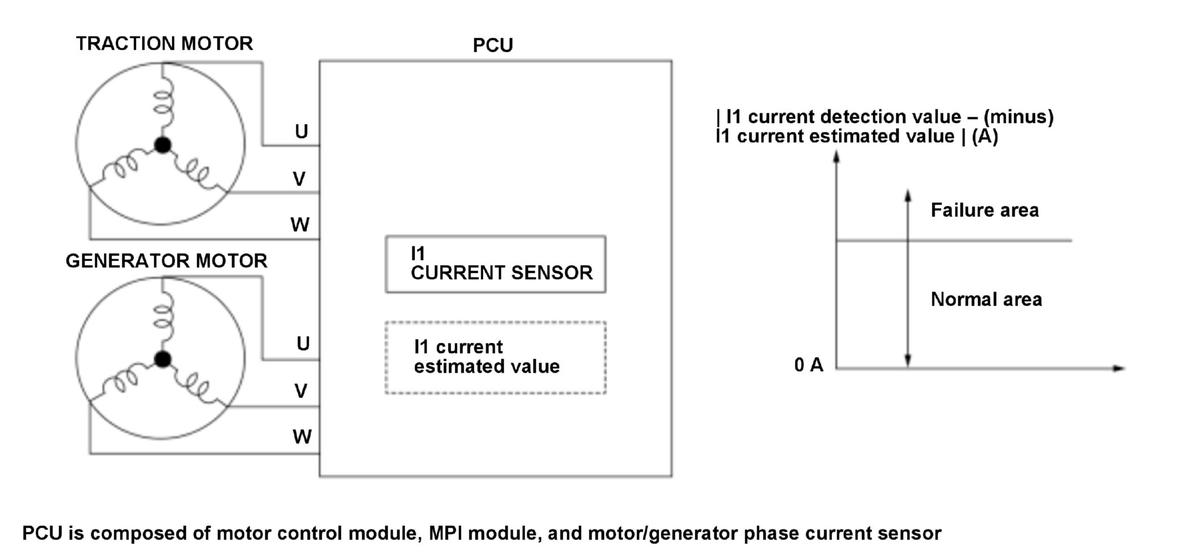

The power control unit (PCU) controls the voltage control unit (VCU) output based on the reactor current sensor signals. If the signal current from the I1 current sensor exceeds a set value for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
